Technical Parameters
| Technical parameter | Parameter value |
| Brand | KLHA |
| Temperature measurement range | -50℃ to +100℃ (optional with other ranges) |
| Detecting Core Devices | PT100 |
| Temperature Measurement Accuracy | ± 0.5℃ (0.5FS) |
| Thermal Response Coefficient | 10mΩ/K |
| The resistance @ ℃ | 1000Ω±0.12Ω/K |
| The resistance rate | 0.385Ω/K |
| Reference Standards | Using EN 60751 Class B Standards |
| Channels | 8 |
| Communication Interface | RS485 |
| Default baud rate | 9600 8 n 1 |
| Power | DC9~24V 1A |
| Running temperature | -30~85℃ |
| Working humidity | 5%RH~90%RH |

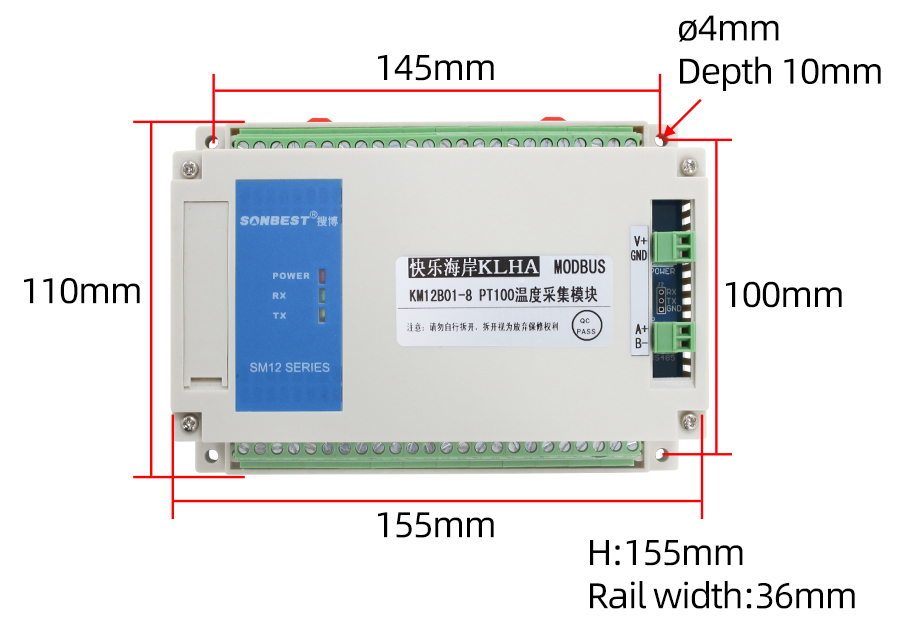

Product Size

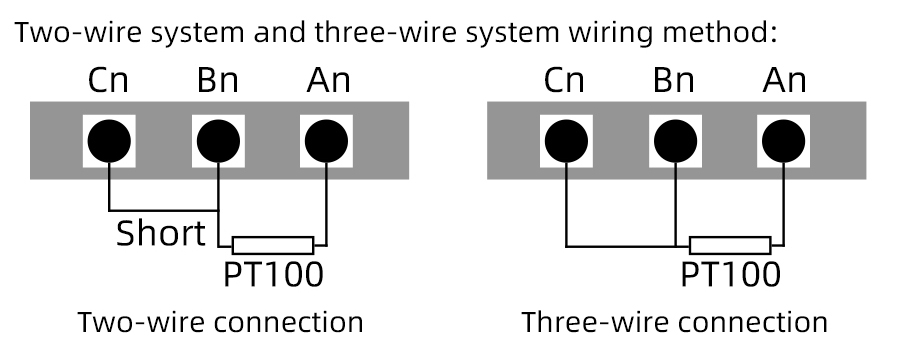

Wiring instructions
Why choose this product?
How to use?

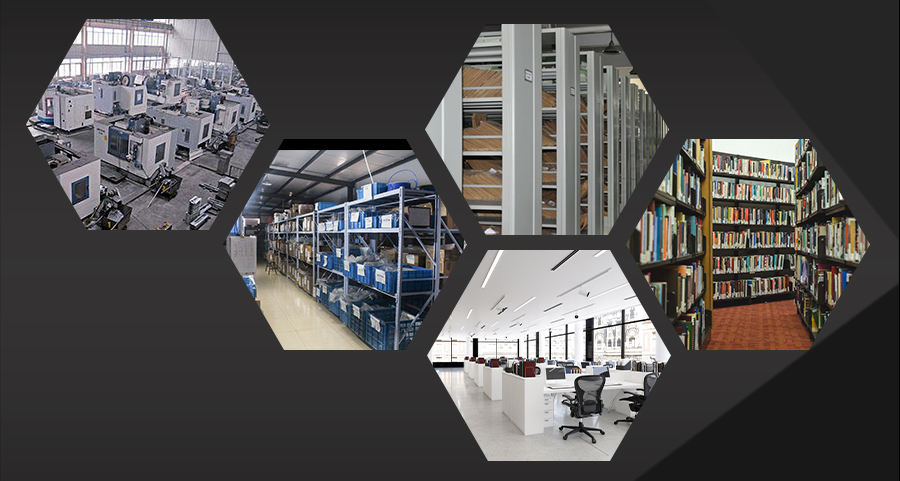

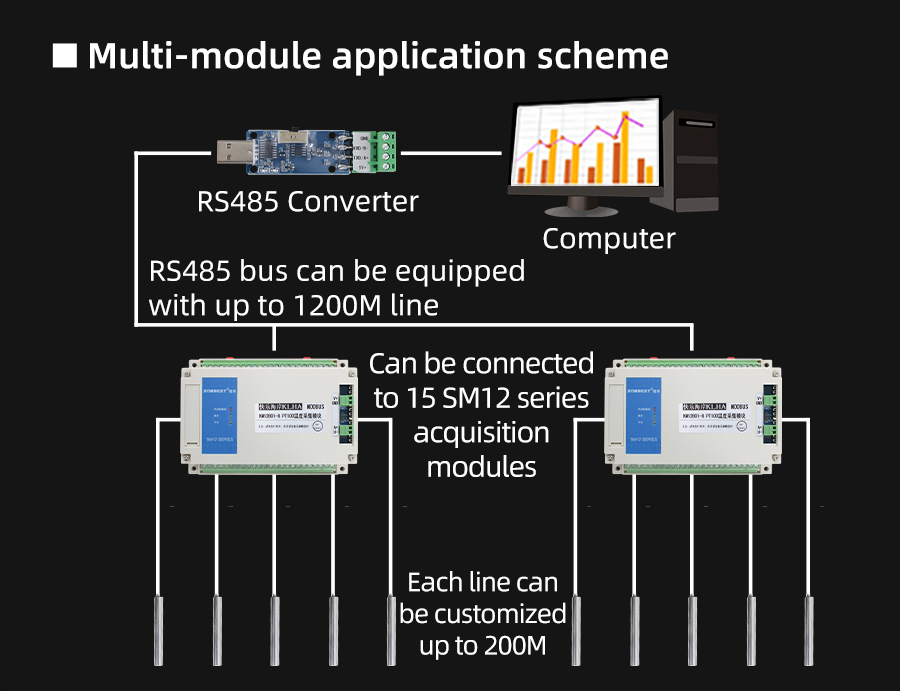

Application solution
Pictures
