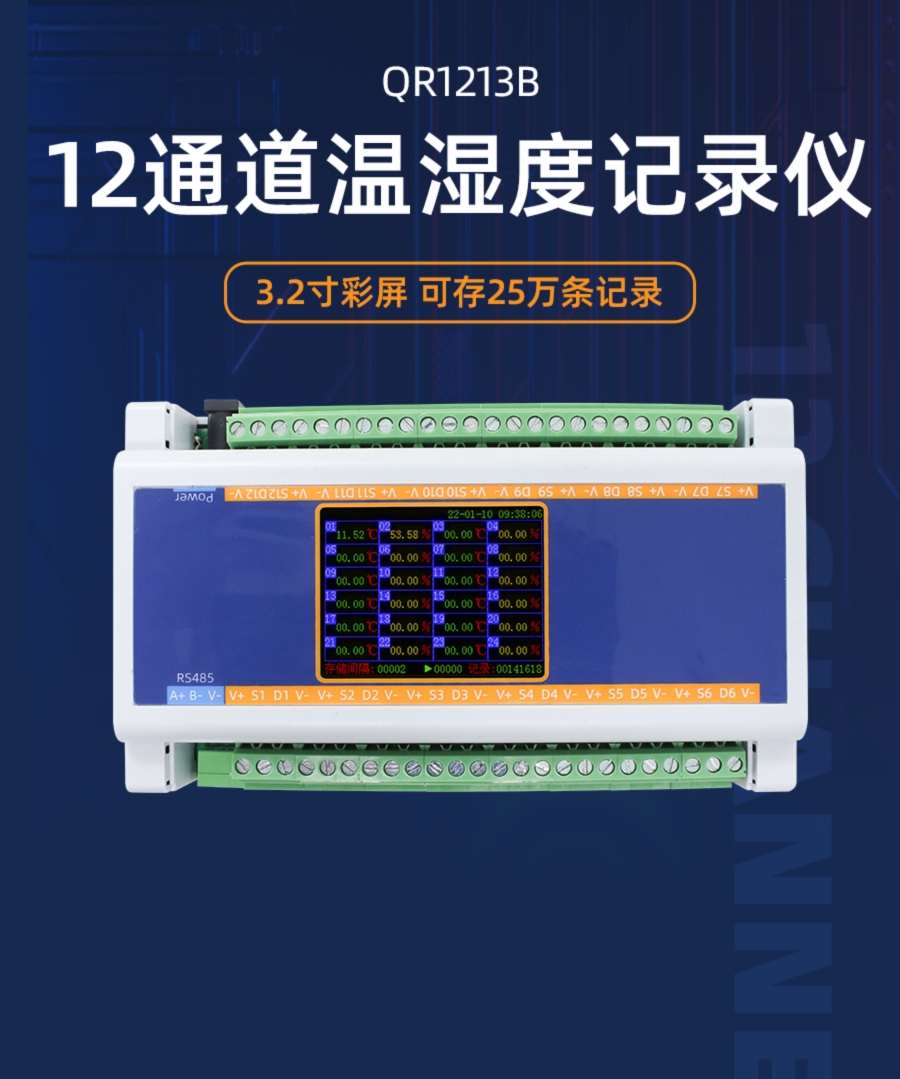

Technical Parameters
| Technical parameter | Parameter value |
| Brand | TRANBALL |
| Temperature measuring range | -30℃~80℃ |
| Temperature measuring accuracy | ±0.5℃ @25℃ |

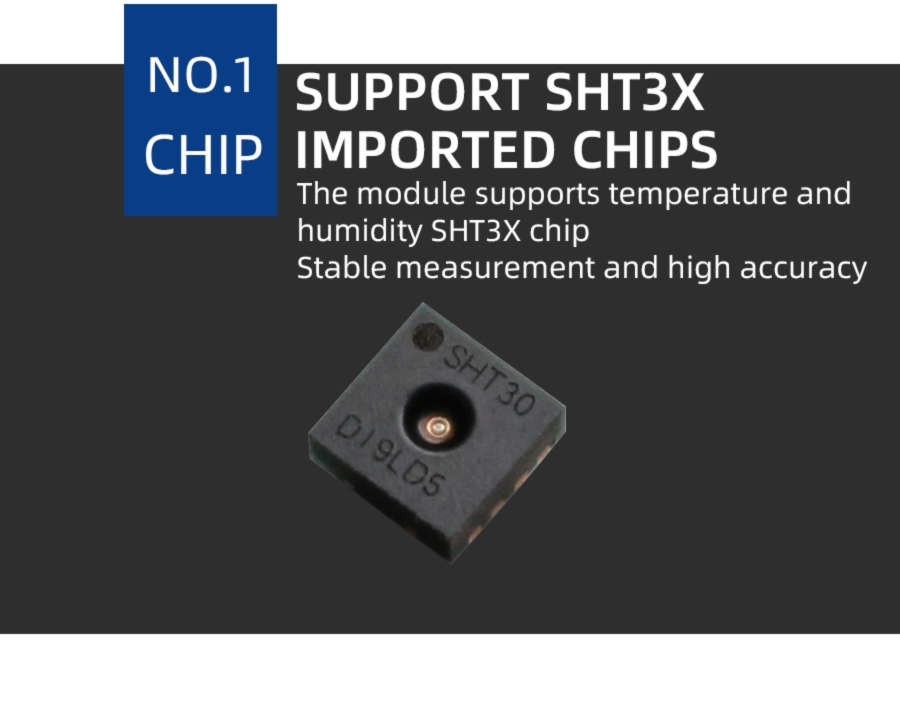

| Support sensor | SHT30 |
| Channels | 12 |
| Input bus | IIC |
| Communication Interface | RS485 |
| Default baud rate | 115200 8 n 1 |
| Power | DC6~24V 1A |
| Storage | 128M |
| Max Records | 500000 |
| Running temperature | -30~80℃ |

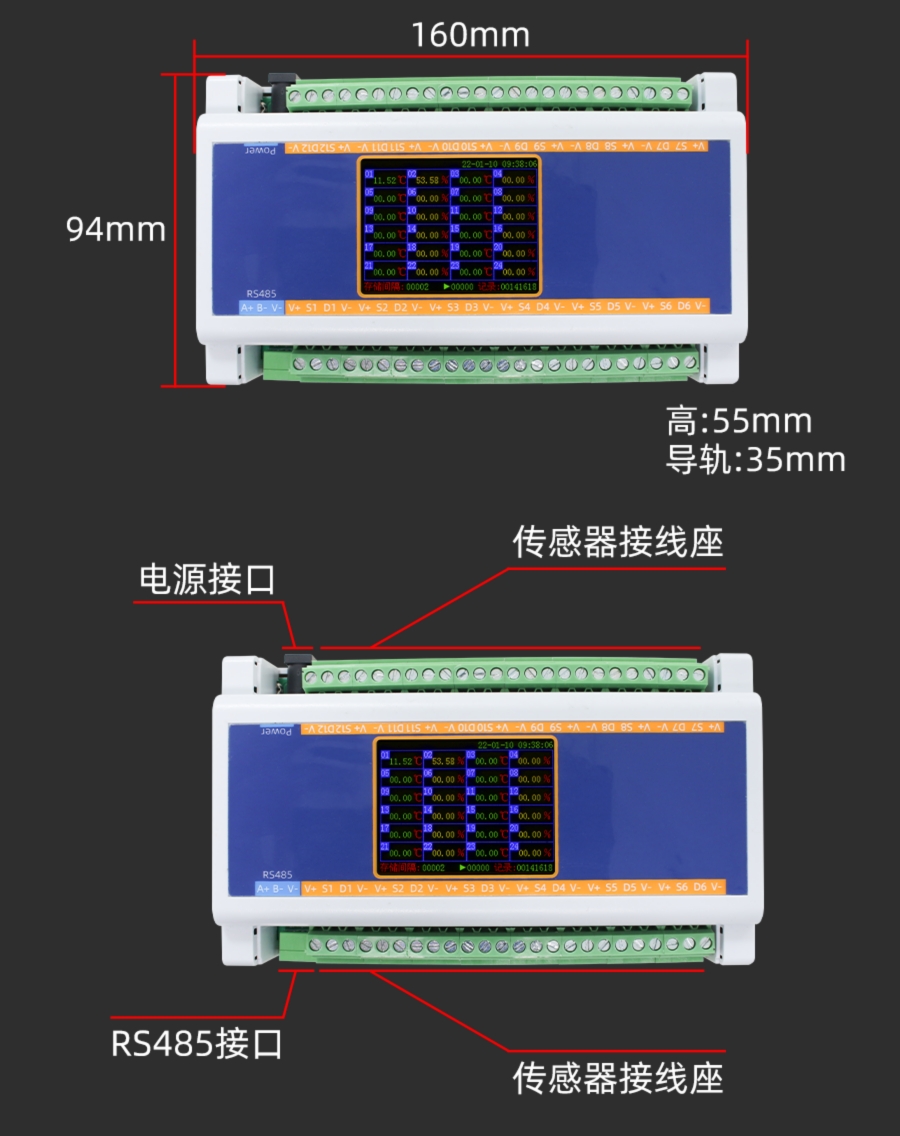

Product Size

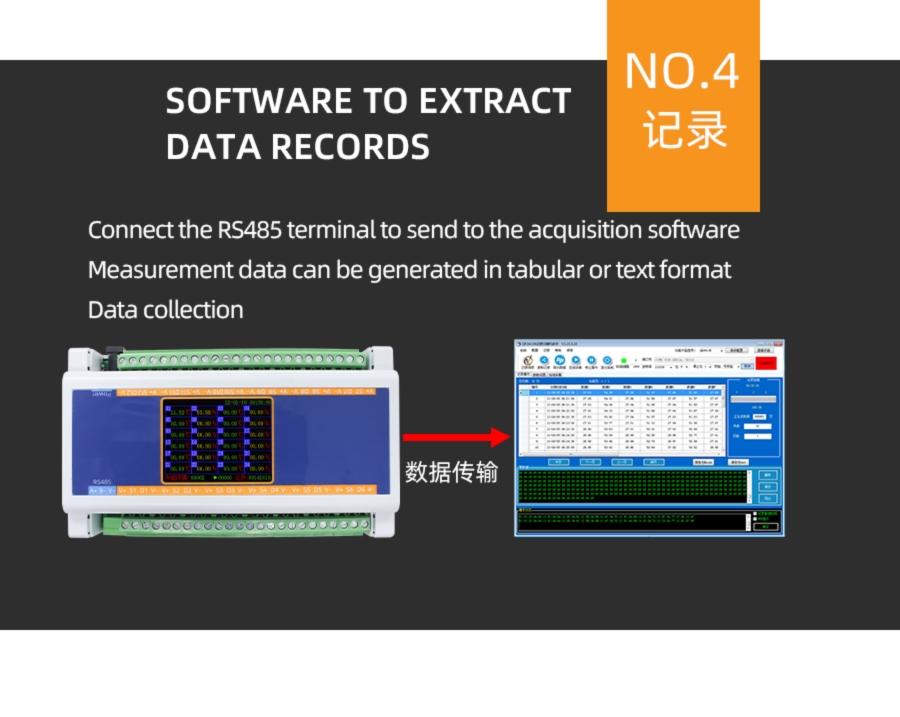

software to test

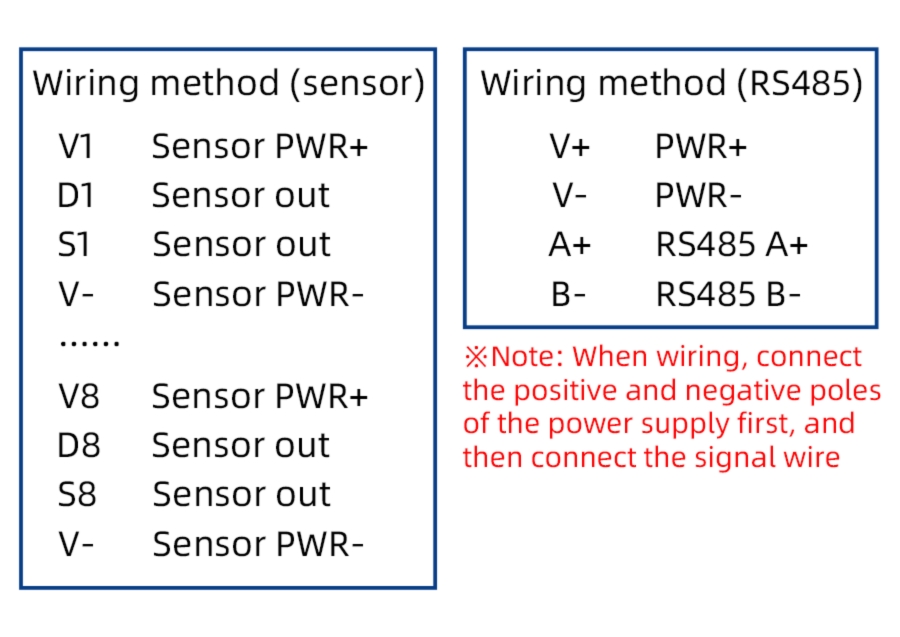

How to wiring?

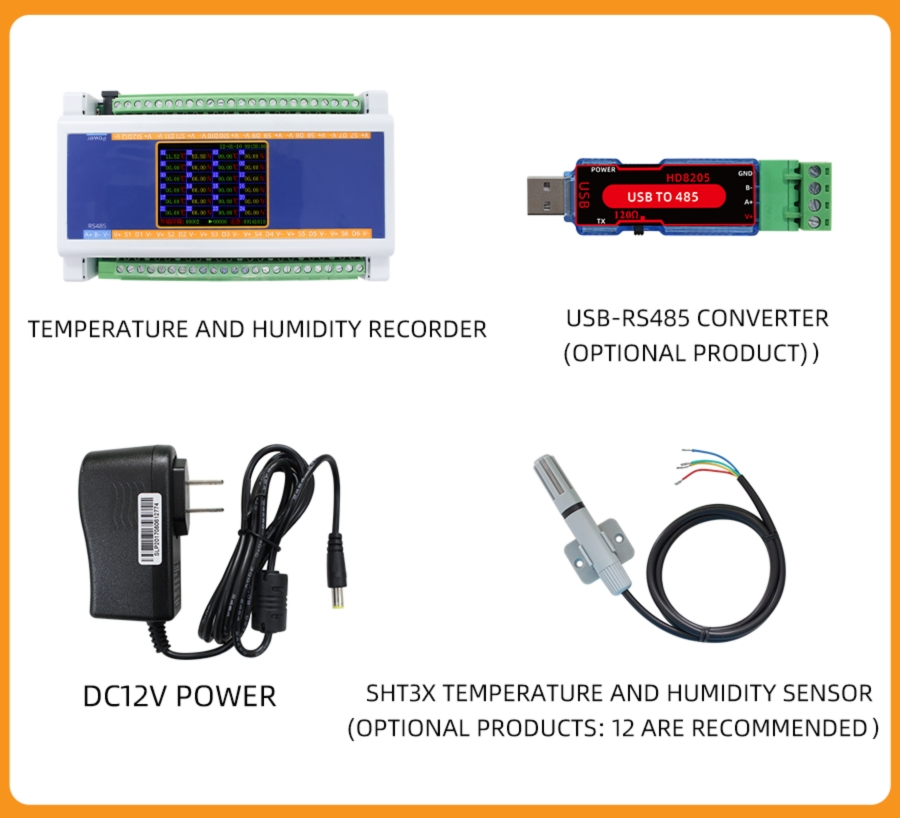

Kit recommendation

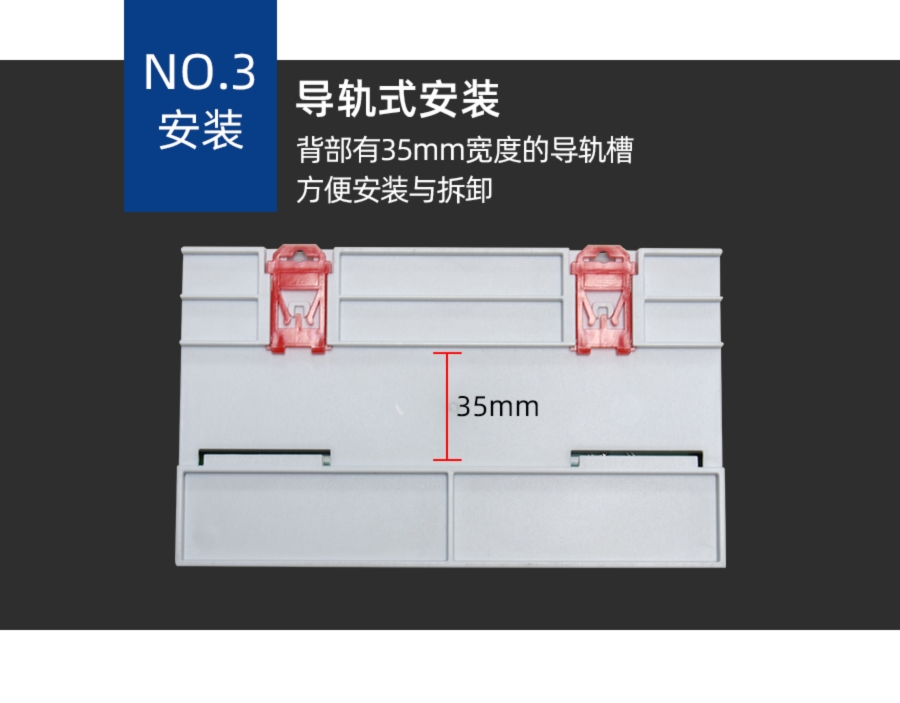

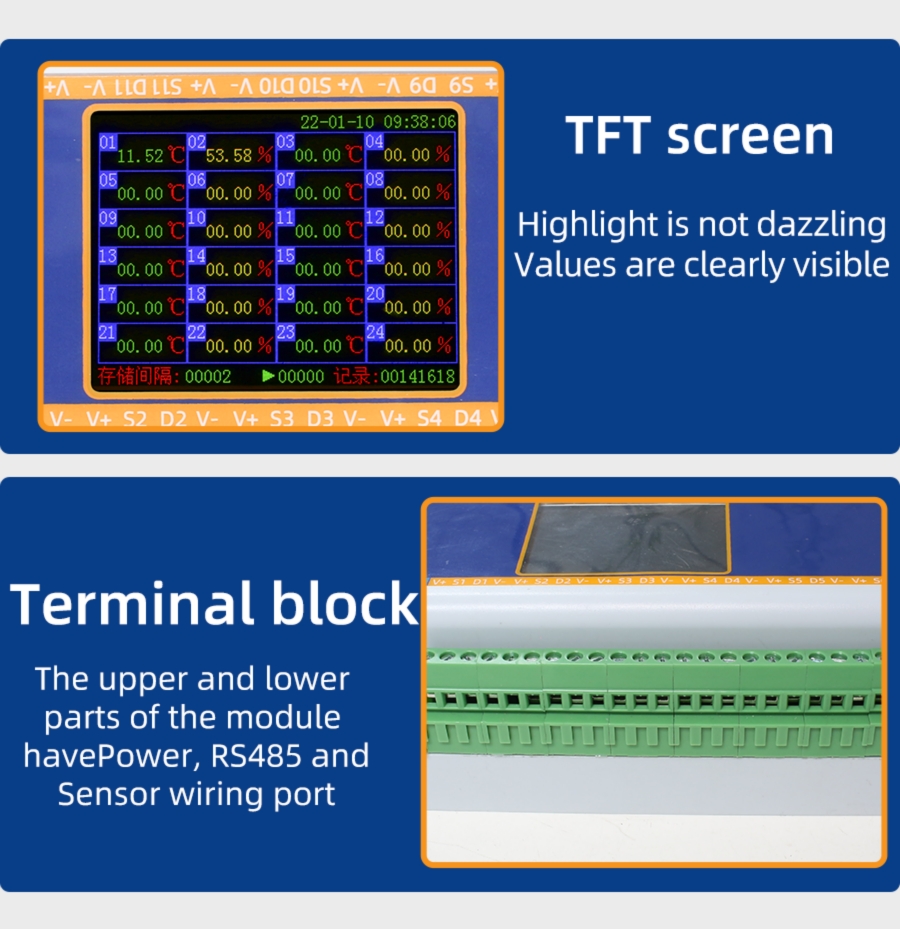

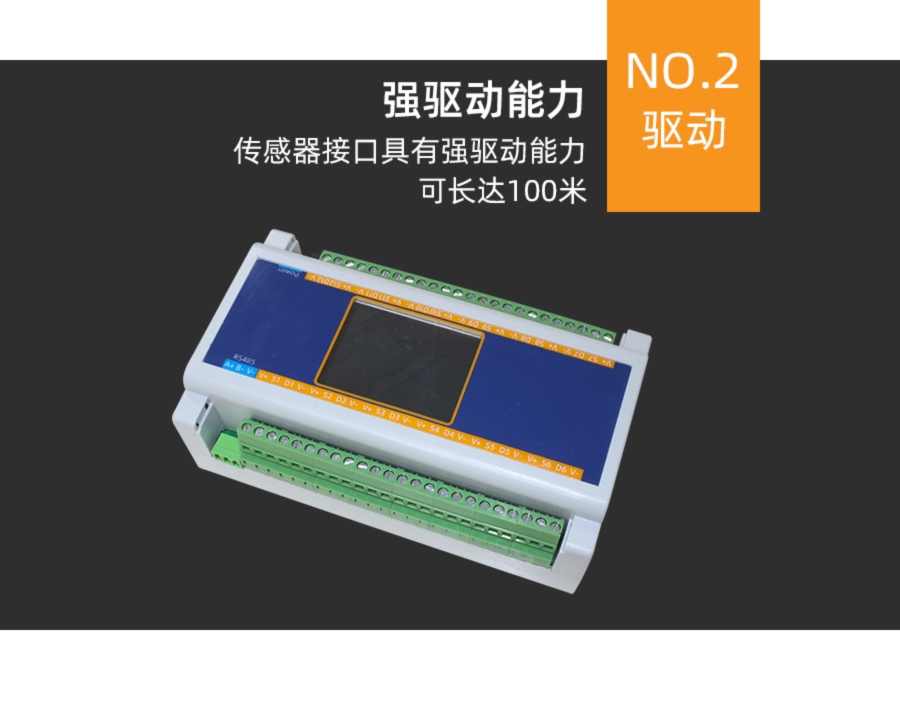

Why choose this product?
How to use?

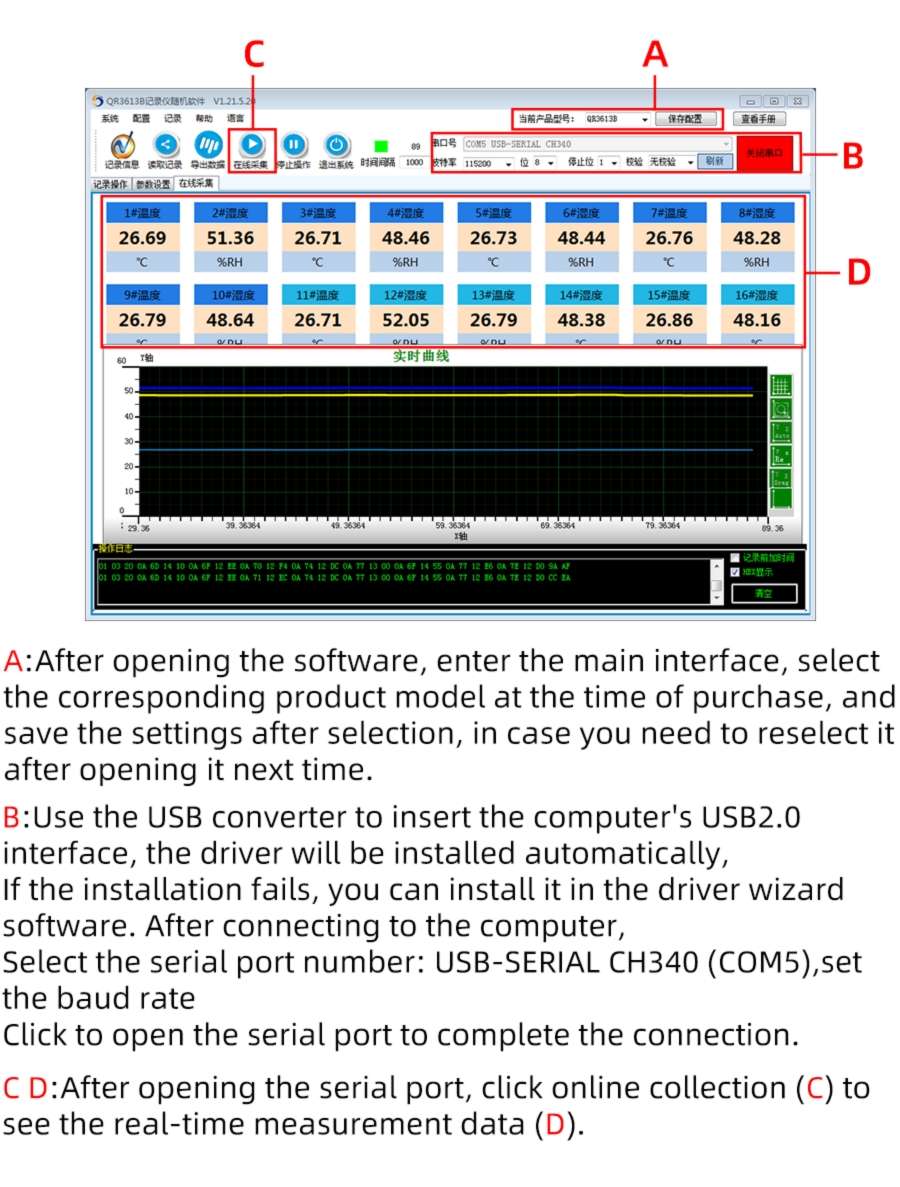

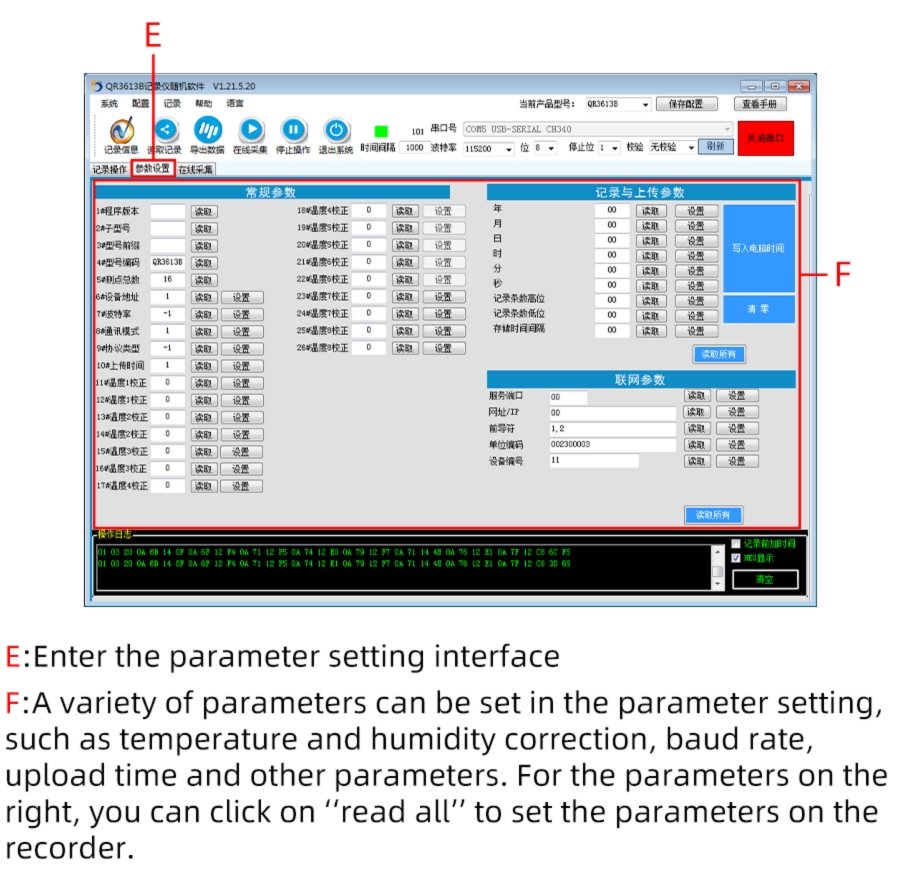

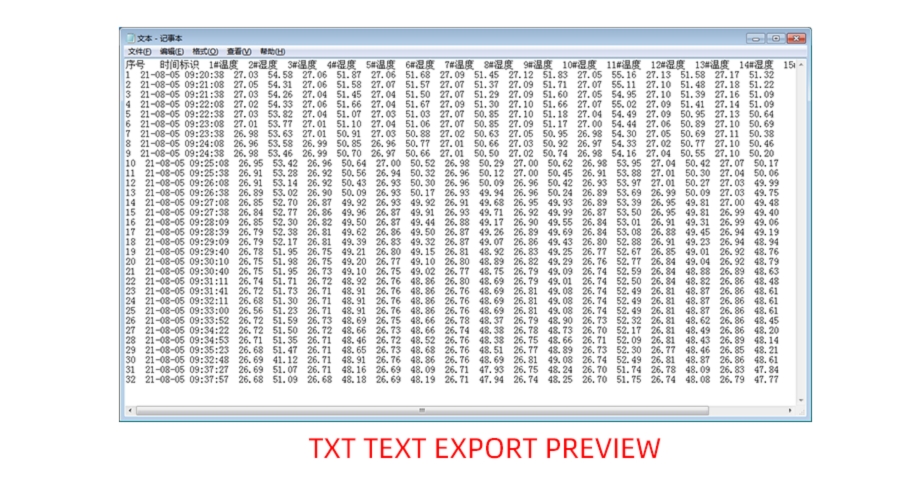

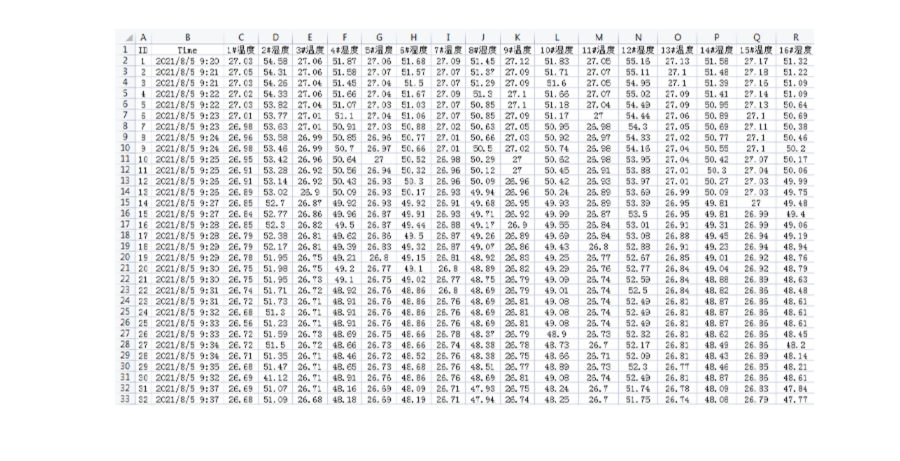

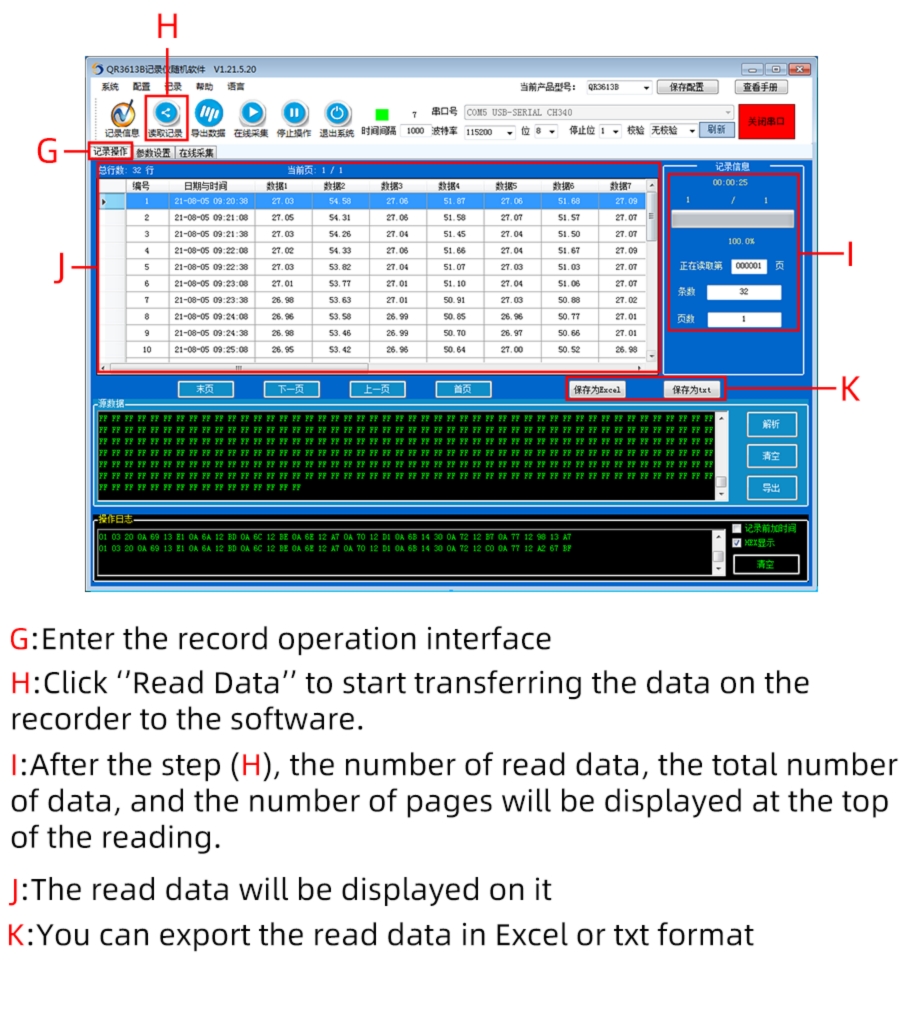

How to use software?
Why choose this product?
How to use?

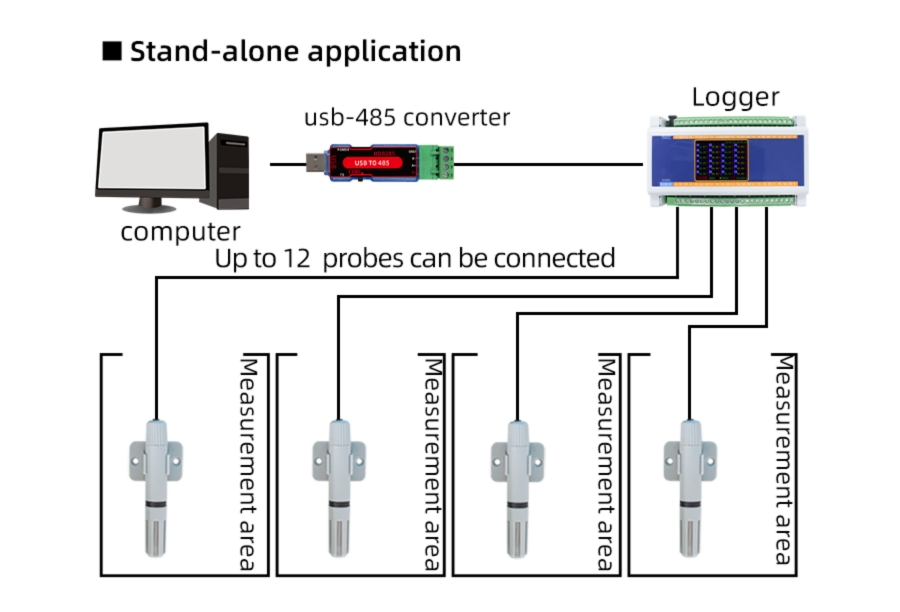

Application solution
Product List

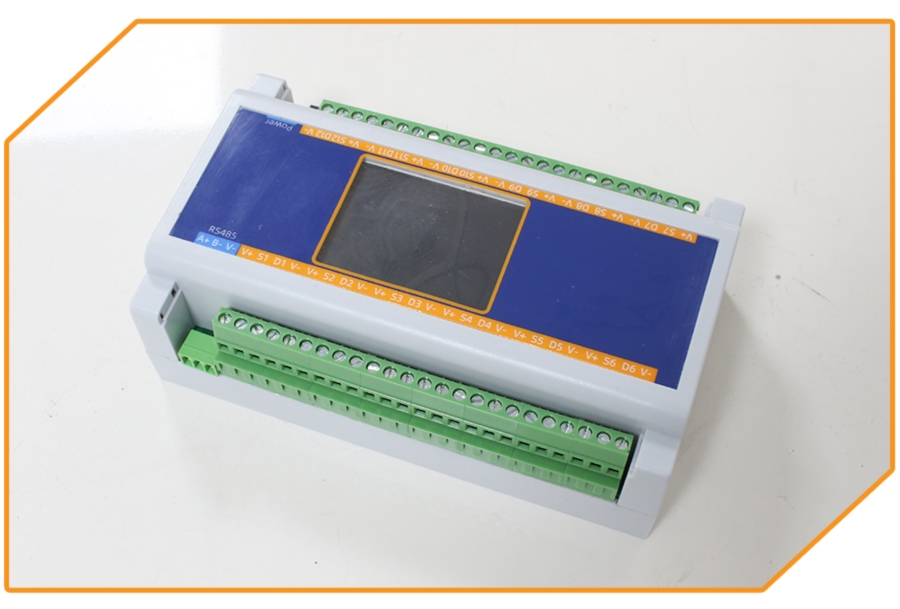

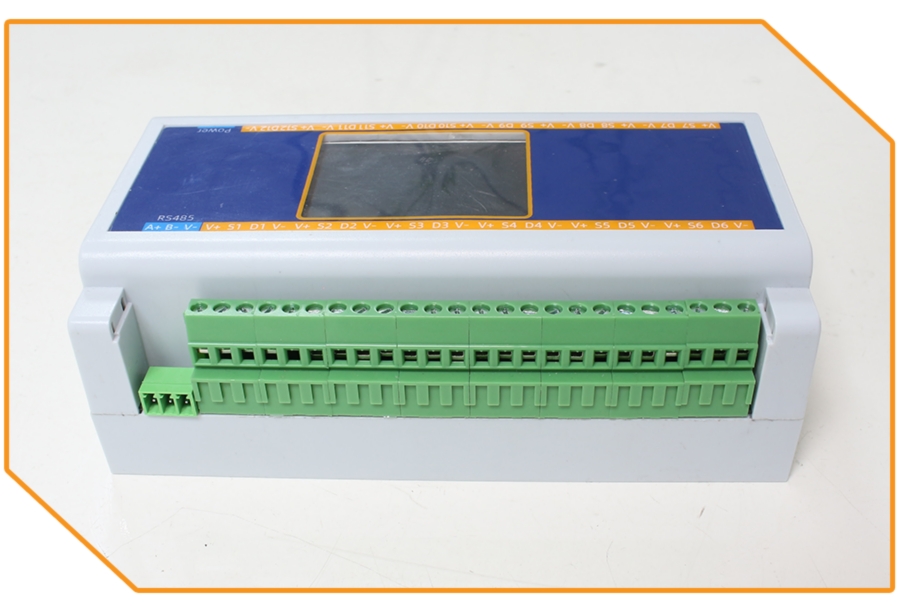

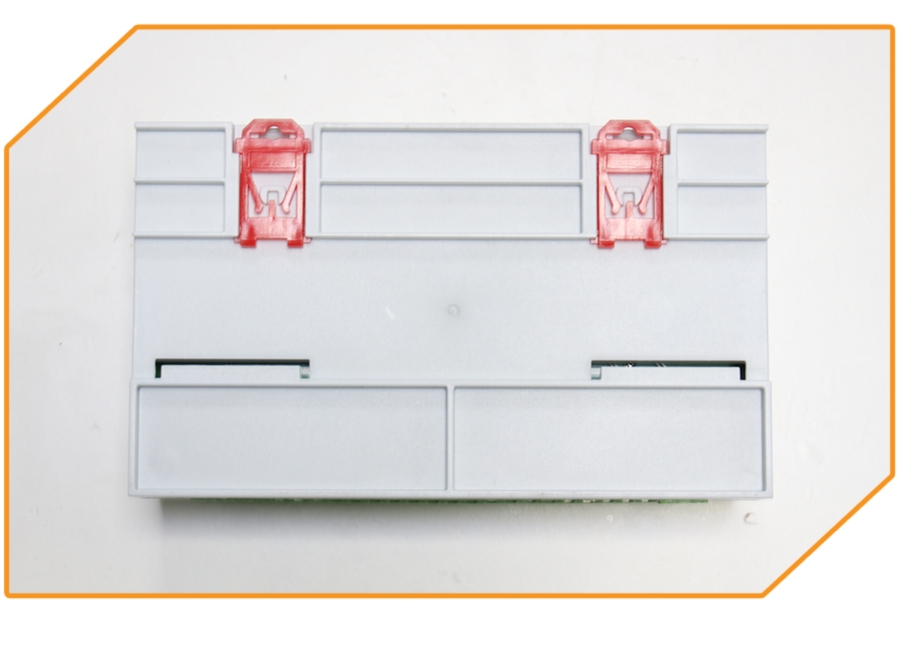

Pictures
Communication Protocol
The product uses the RS485 MODBUS-RTU standard protocol format, and all operation or reply commands are in hexadecimal data. When the device leaves the factory, the default device address is 1, and the default baud rate is: for modules and non-recording instruments: 9600, 8, n, 1 (for the recorder series products, the default is: 115200, 8, n, 1).
1. Read data (Function code 0x03)
The inquiry frame (in hexadecimal). Example of sending: To query 1 piece of data of device No. 1, the host computer sends the command: 01 03 00 00 00 0A C5 CD .
| Address | Function code | Starting address | Data length | Checksum |
| 01 | 03 | 00 00 | 00 0A | C5 CD |
For a correct inquiry frame, the device will respond with data: 01 03 14 02 18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 FC 27 , and the response format is:
| Address | Function code | Length | Data 1 | Data 2 | Data 3 | Data 4 | Data 5 | Data 6 | Data ... | Data 23 | Data 24 | Checksum | 01 |
| 03 | 14 | 02 18 | 02 19 | 02 1A | 02 1B | 02 1C | 02 1D | ...... | ......02 18 | 02 18 | FC 27 |
Data description: The data in the command is in hexadecimal. Taking Data 1 as an example, 02 18 converted to decimal value is 536. Assuming the data magnification factor is 100, then the true value is 536/100 = 5.36, and the others can be deduced by analogy.
2. Common Data Address Table
| Configuration Address | Register Address | Register Description | Data Type | Value Range |
| 40001 | 00 00 | 1#temperature register | Read Only | 0~65535 |
| 40002 | 00 01 | 2#humidity register | Read Only | 0~65535 |
| 40003 | 00 02 | 3#temperature register | Read Only | 0~65535 |
| 40004 | 00 03 | 4#humidity register | Read Only | 0~65535 |
| 40005 | 00 04 | 5#temperature register | Read Only | 0~65535 |
| 40006 | 00 05 | 6#humidity register | Read Only | 0~65535 |
| ... | ... | ... | ... | ... |
| 40023 | 00 16 | 23#temperature register | Read Only | 0~65535 |
| 40024 | 00 17 | 24#humidity register | Read Only | 0~65535 |
| 40101 | 00 64 | Model Code | Read-only | 0~59999 |
| 40102 | 00 65 | Total Number of Measuring Points | Read-only | 1~1600 |
| 40103 | 00 66 | Device Address | Read/Write | 1~249 |
| 40104 | 00 67 | Baud Rate | Read/Write | 0~6 |
| 40105 | 00 68 | Communication Mode | Read/Write | 1 Query |
| 2 Active Upload | 40106 | 00 69 | Protocol Type | Read/Write |
| 1 MODBUS-RTU | Others Unused |
