Technical Parameters
| Technical parameter | Parameter value |
| Brand | TRANBALL |
| Temperature measurement range | 0~+300℃ (Max 380℃) |
| Temperature measurement accuracy | ±1 or %1 take the maximum value (maximum ±3℃) |
| Repeat measurement accuracy | ±0.5 or %0.5 take the maximum value (maximum ±2℃) |
| Optical Resolution | 1.6:1 |
| Spectral range | 18-14um |
| Response time | 100ms |
| Emissivity | 0.96 |
| Communication Interface | USB(RS232 to USB) |
| USB cable length | 1m |
| Default baud rate | 962000 8 n 1 |
| Charger current | 500mA |
| Work current | <150mA |
| Power off current | <30uA |
| Power | DC3.3~4.2V |

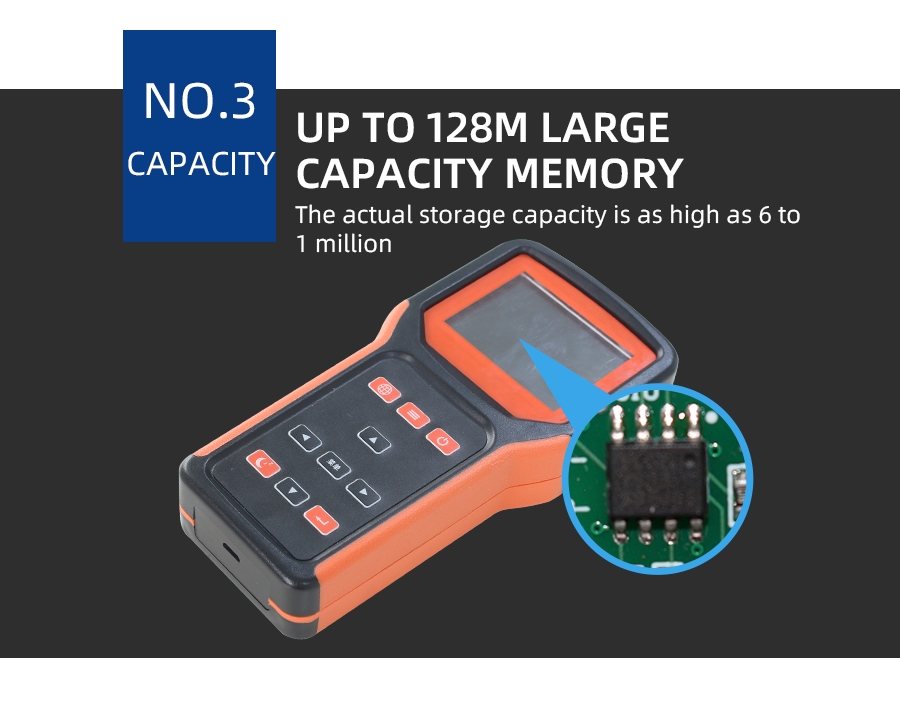

| Storage | 8M |
| Max Records | 65000 |
| Running temperature | -30~85℃ |
| Working humidity | 5%RH~90%RH |

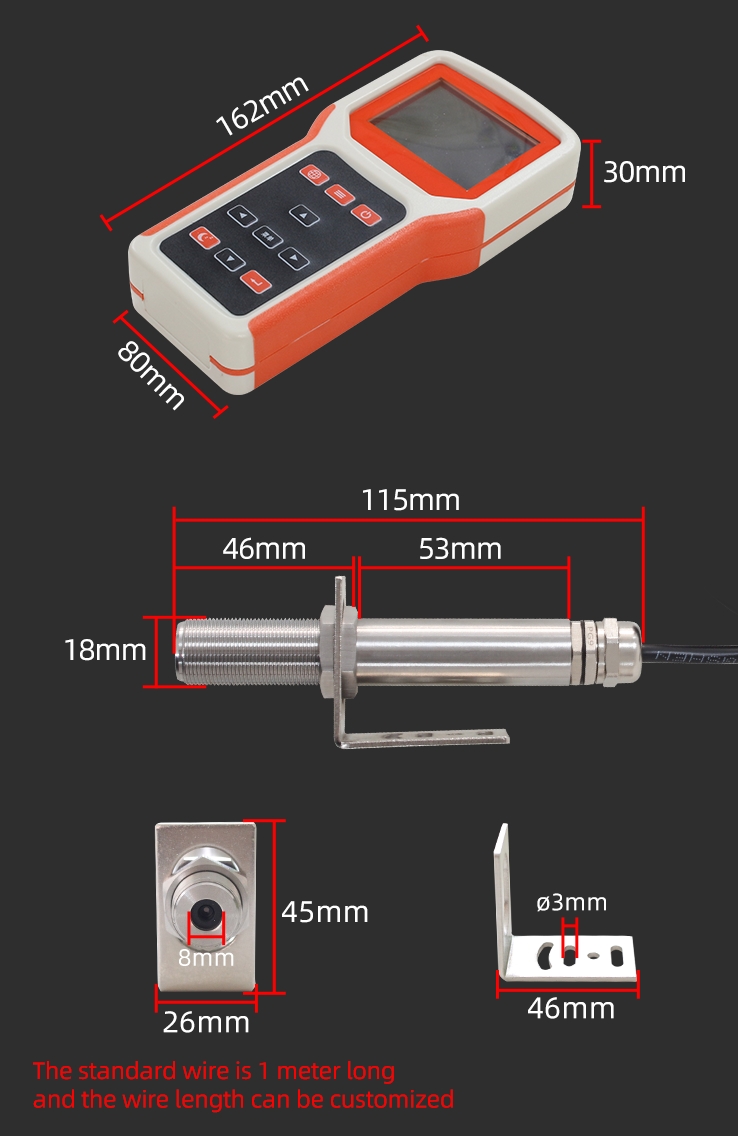

Product Size

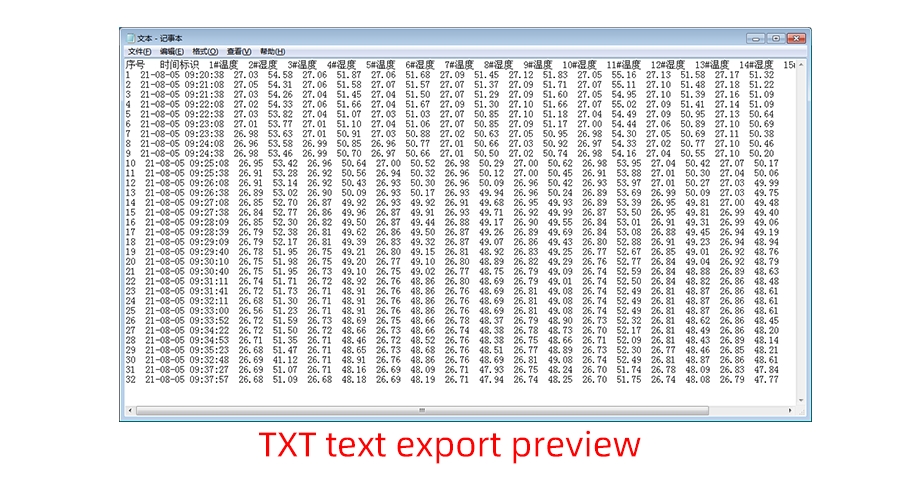

software to test
Why choose this product?

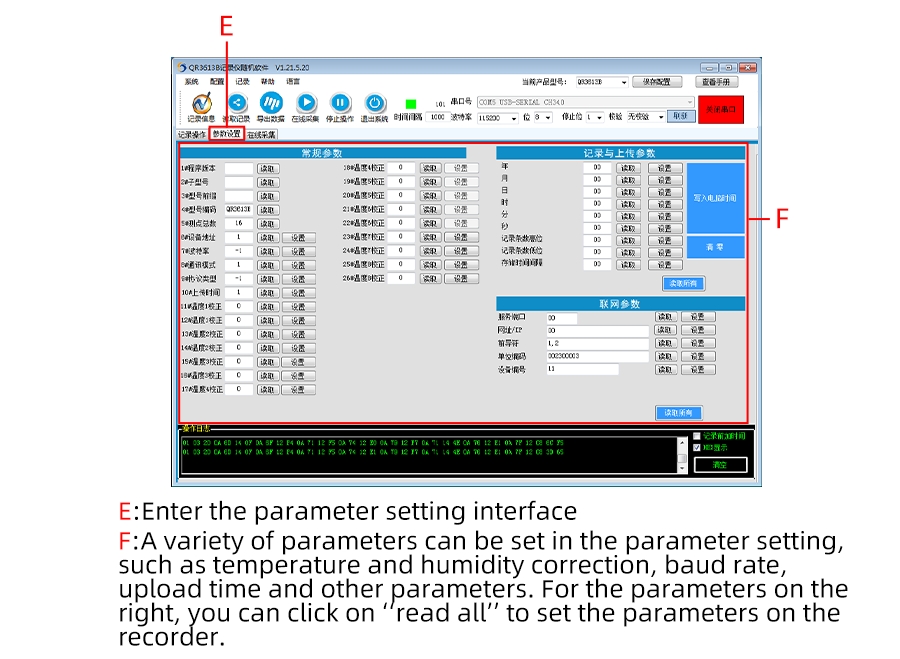

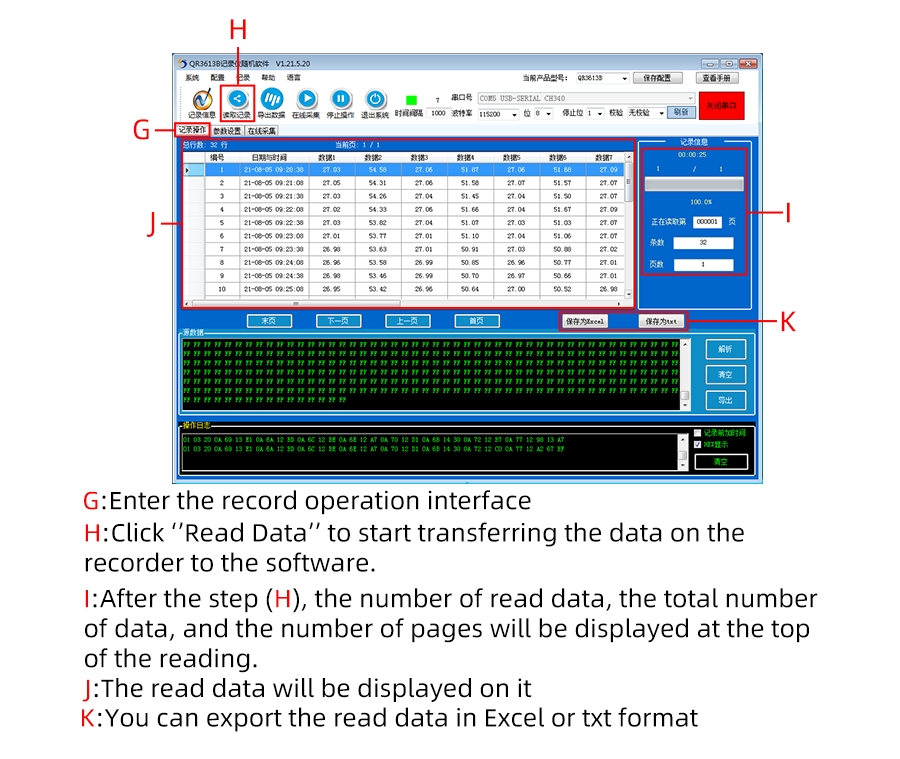

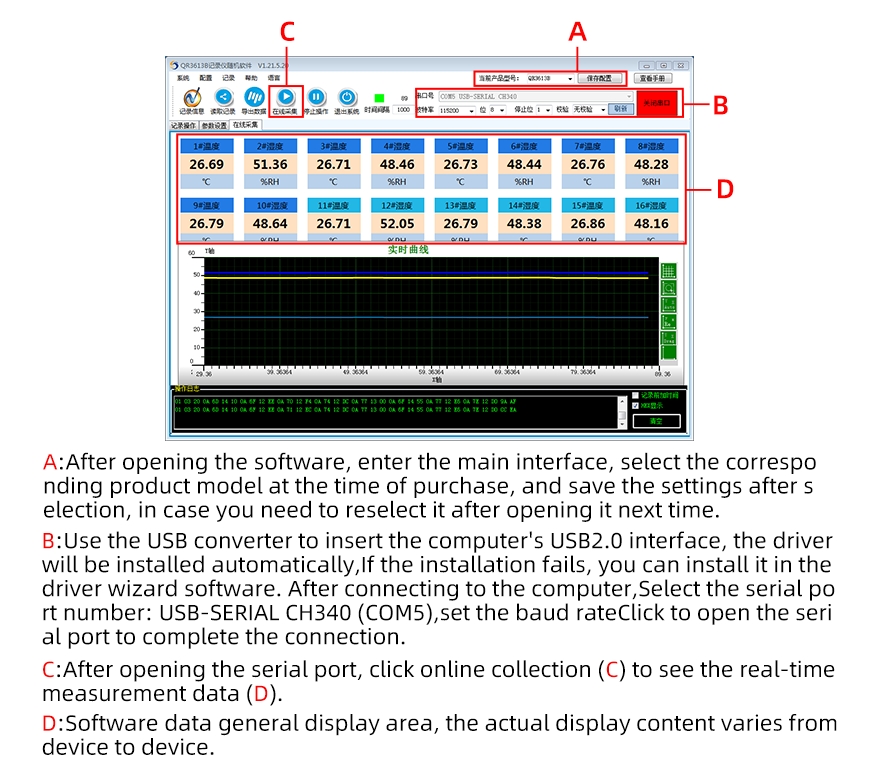

How to use software?
Why choose this product?
How to use?
Product List

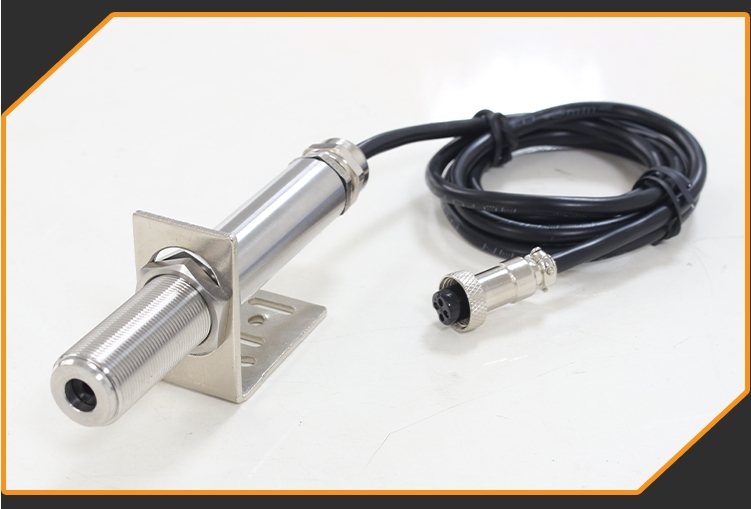

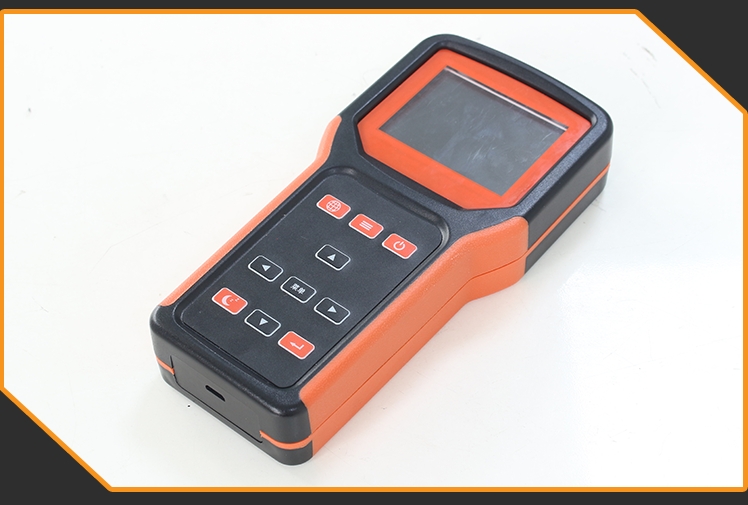

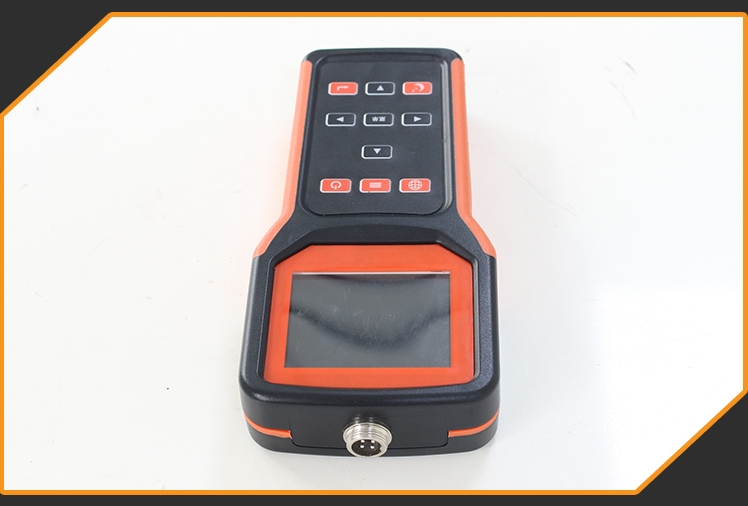

Pictures
