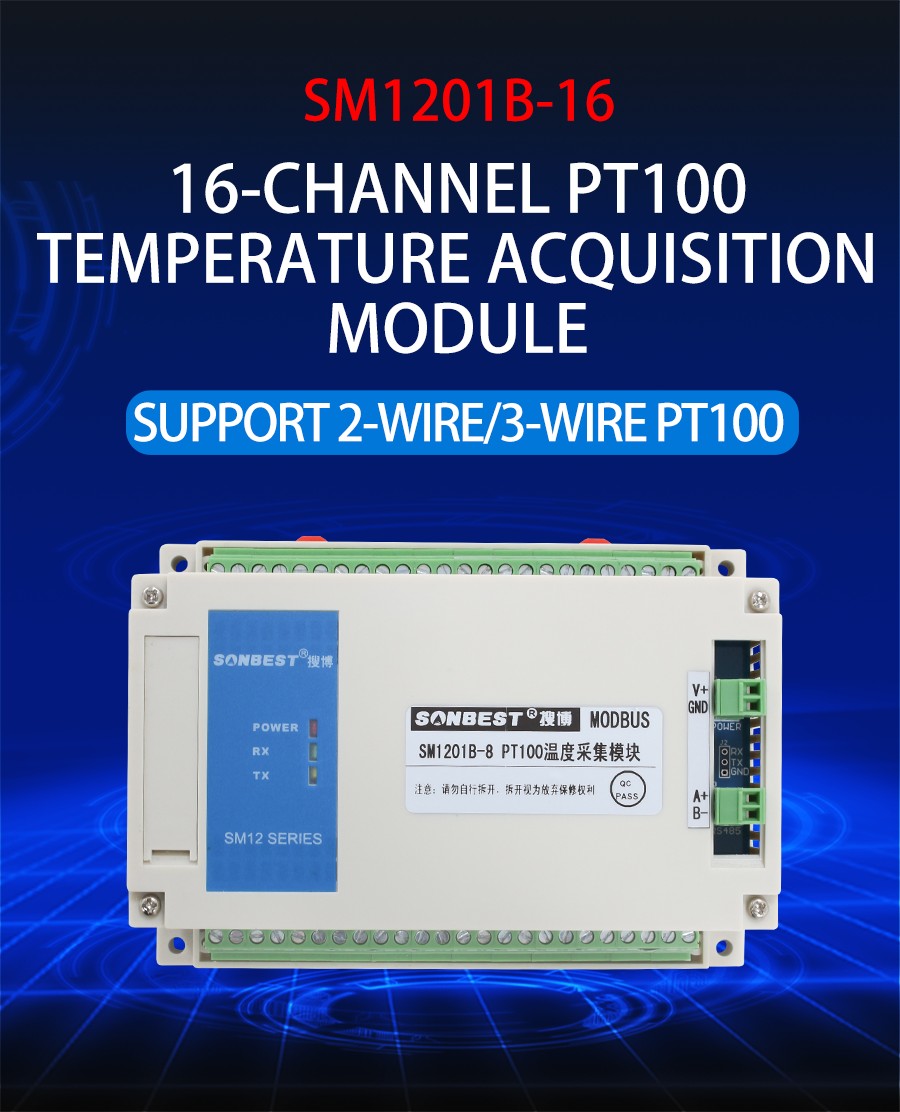

 [SM1201B-16]  RS485 interface 16-channel PT100 temperature acquisition module


SM1201B-16 SM1201B-16 SM1201B-16

Technical Parameters

Technical parameterParameter value
BrandSONBEST
Temperature measurement range-50℃ to +100℃ (optional with other ranges)
Detecting Core DevicesPT100
Temperature Measurement Accuracy± 0.5℃ (0.5FS)
Thermal Response Coefficient 10mΩ/K
The resistance @ ℃ 1000Ω±0.12Ω/K
The resistance rate 0.385Ω/K
Reference StandardsUsing EN 60751 Class B Standards
Channels8
Communication InterfaceRS485
Default baud rate9600 8 n 1
PowerDC9~24V 1A
Running temperature-30~85℃
Working humidity5%RH~90%RH

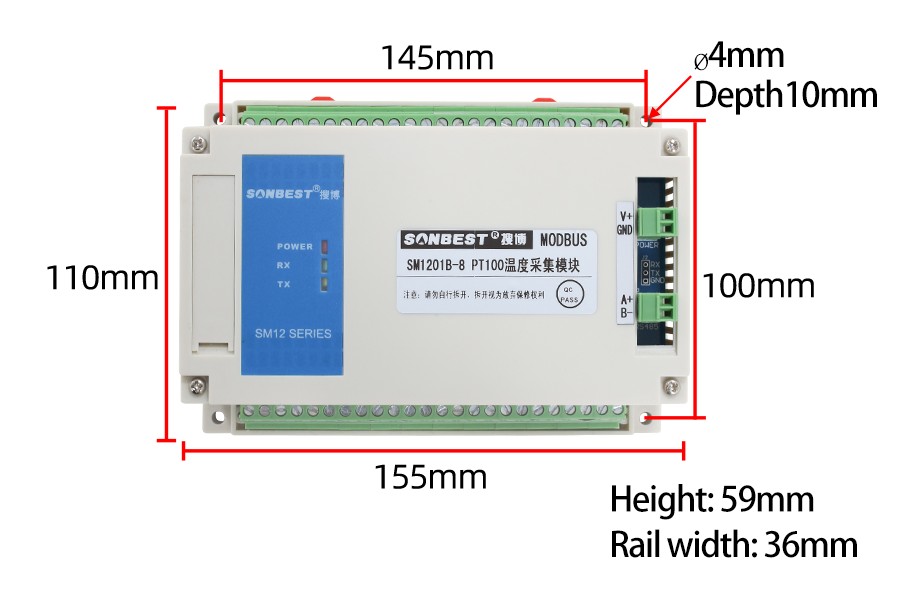

Product Size

SM1201B-16 SM1201B-16 SM1201B-16 SM1201B-16

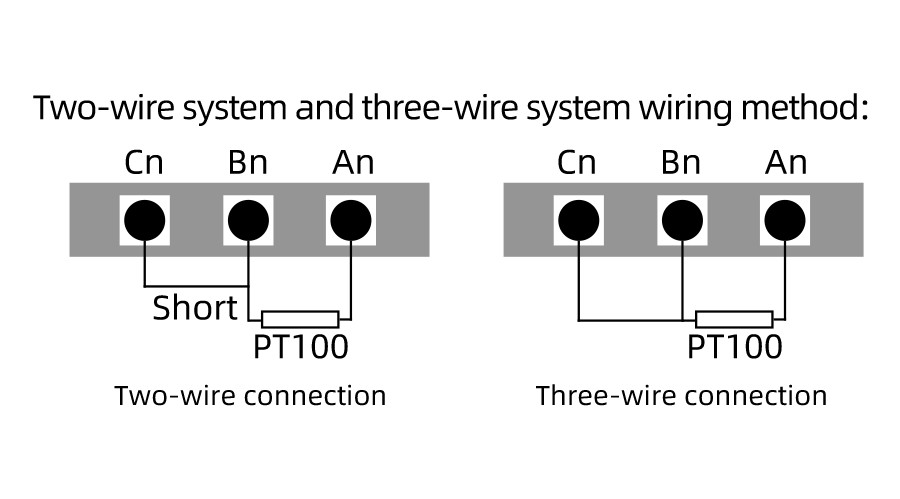

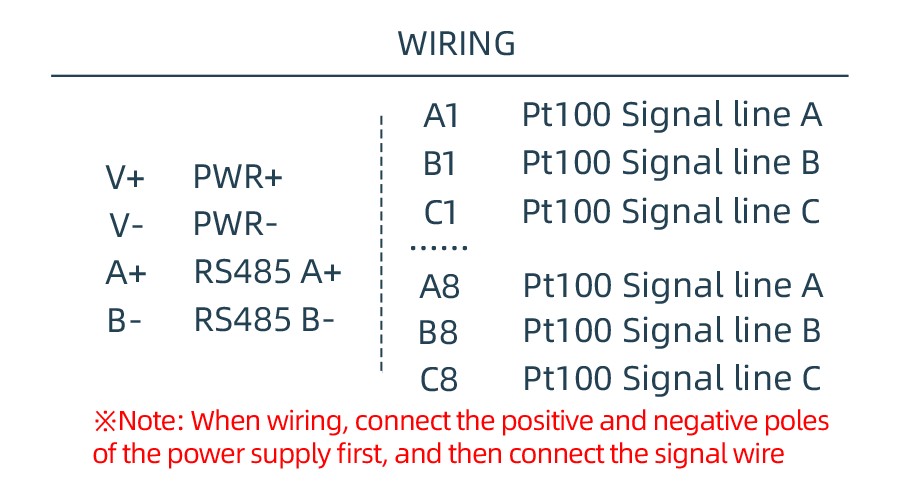

Wiring instructions

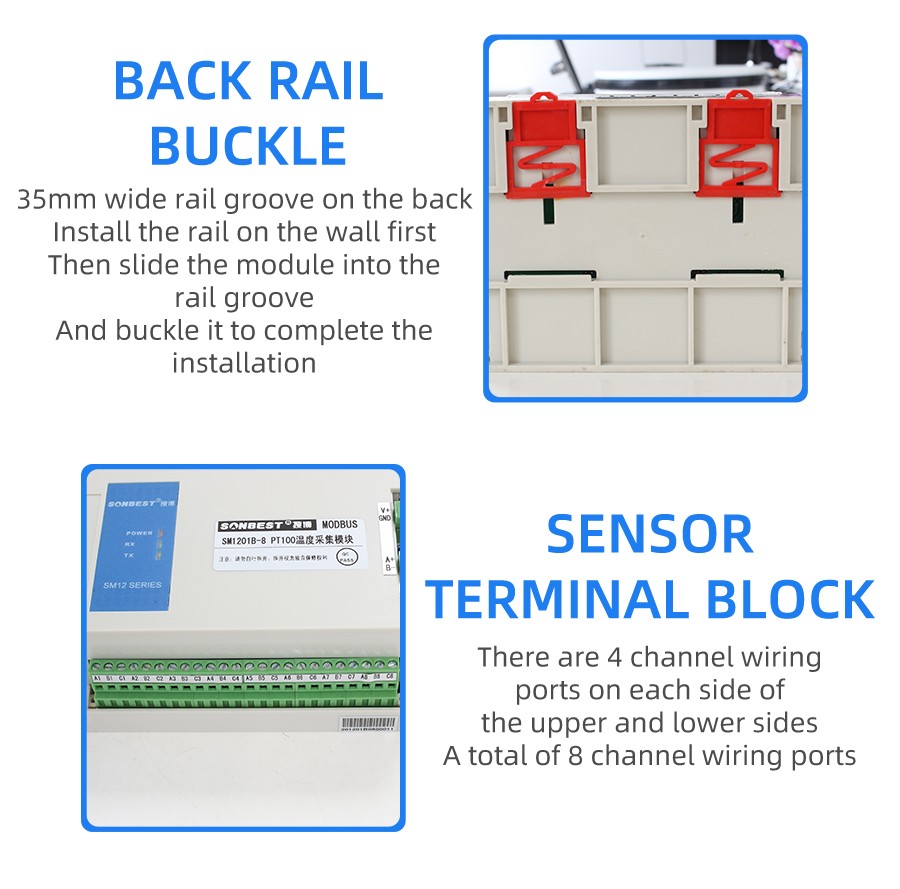

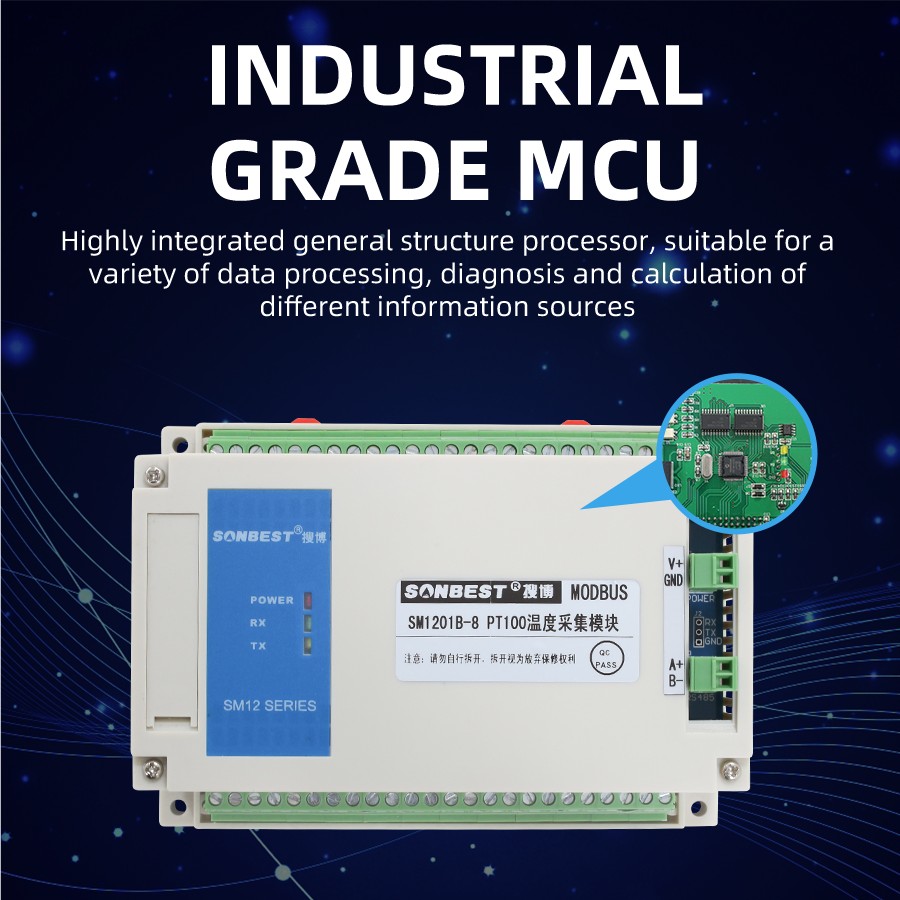

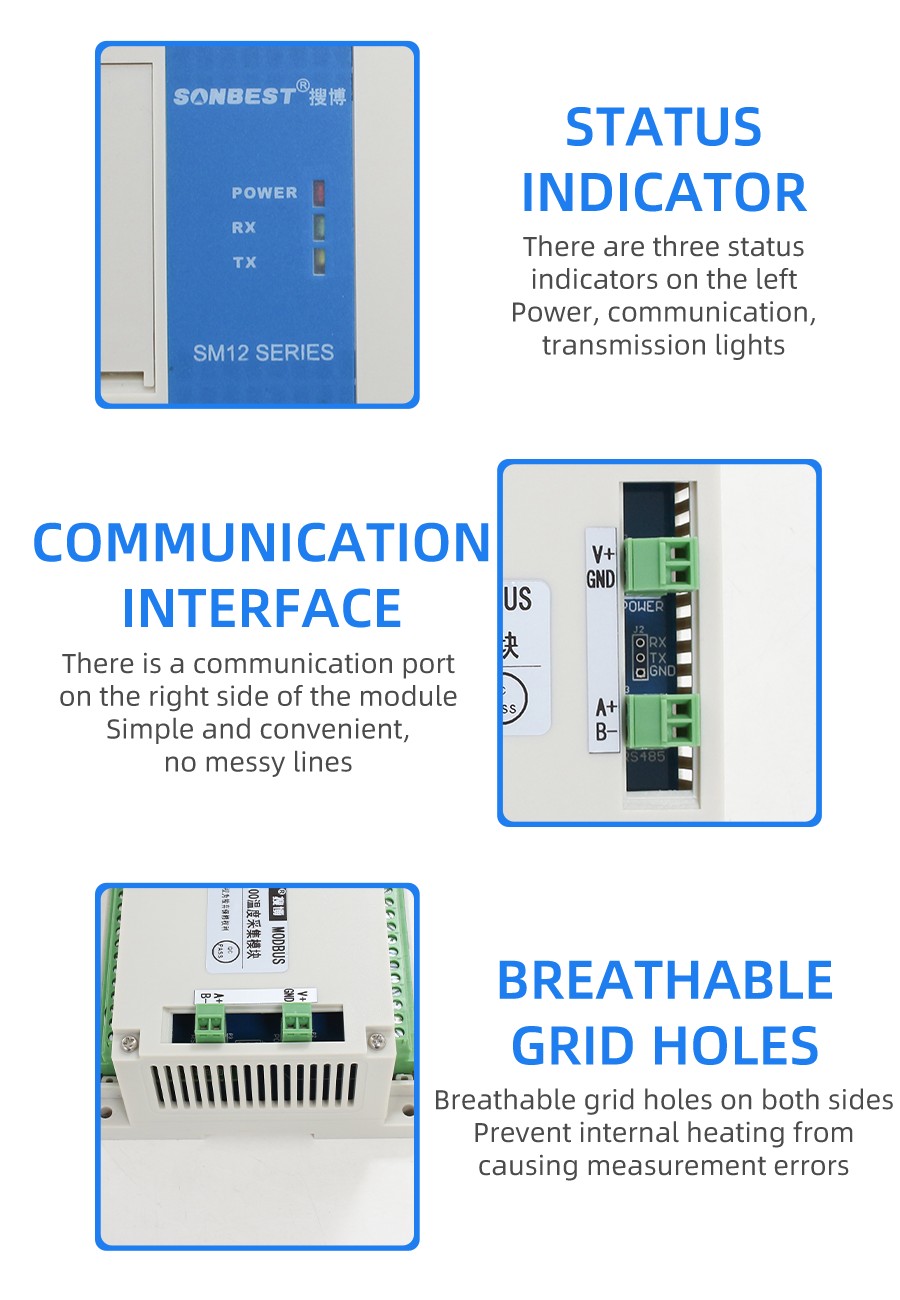

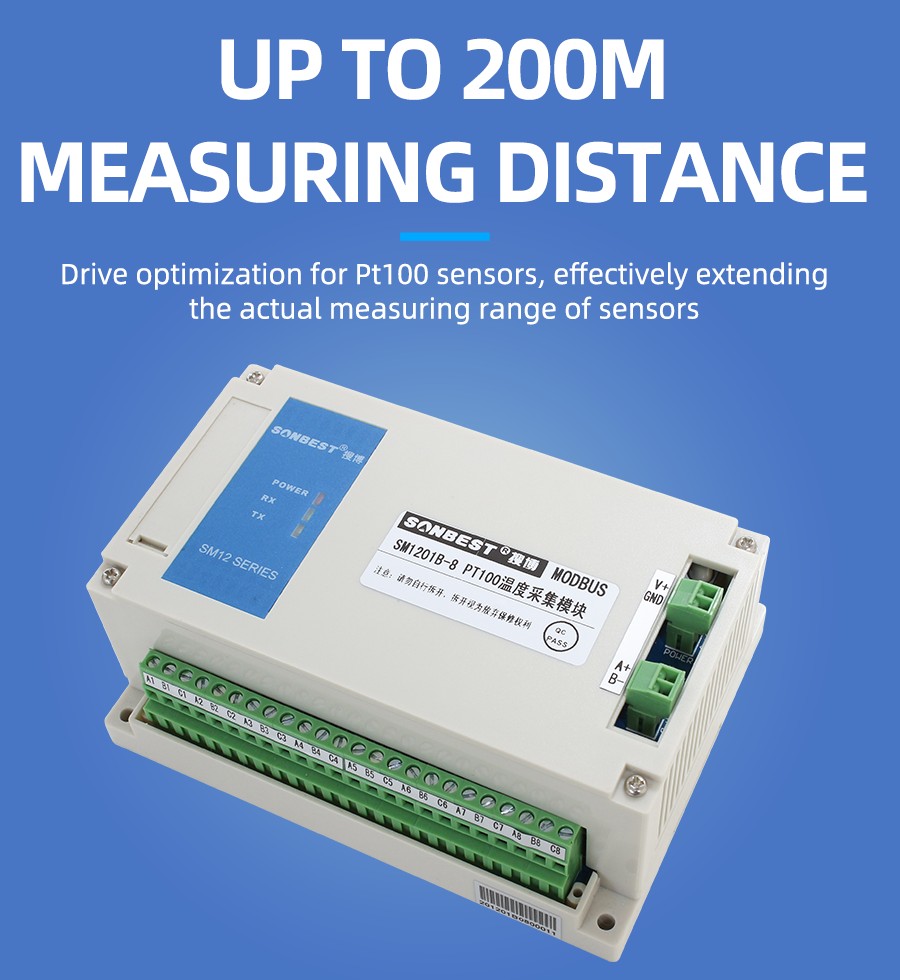

Why choose this product?

SM1201B-16 SM1201B-16

Why choose this product?

SM1201B-16 SM1201B-16 SM1201B-16

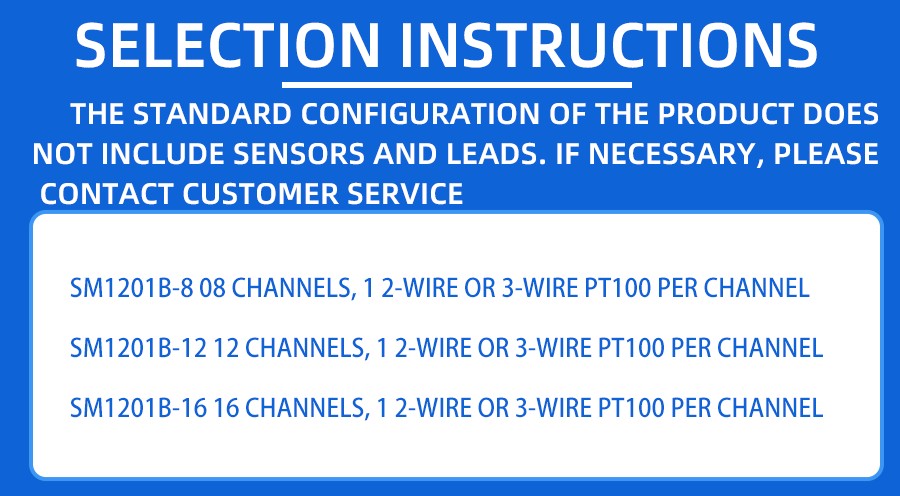

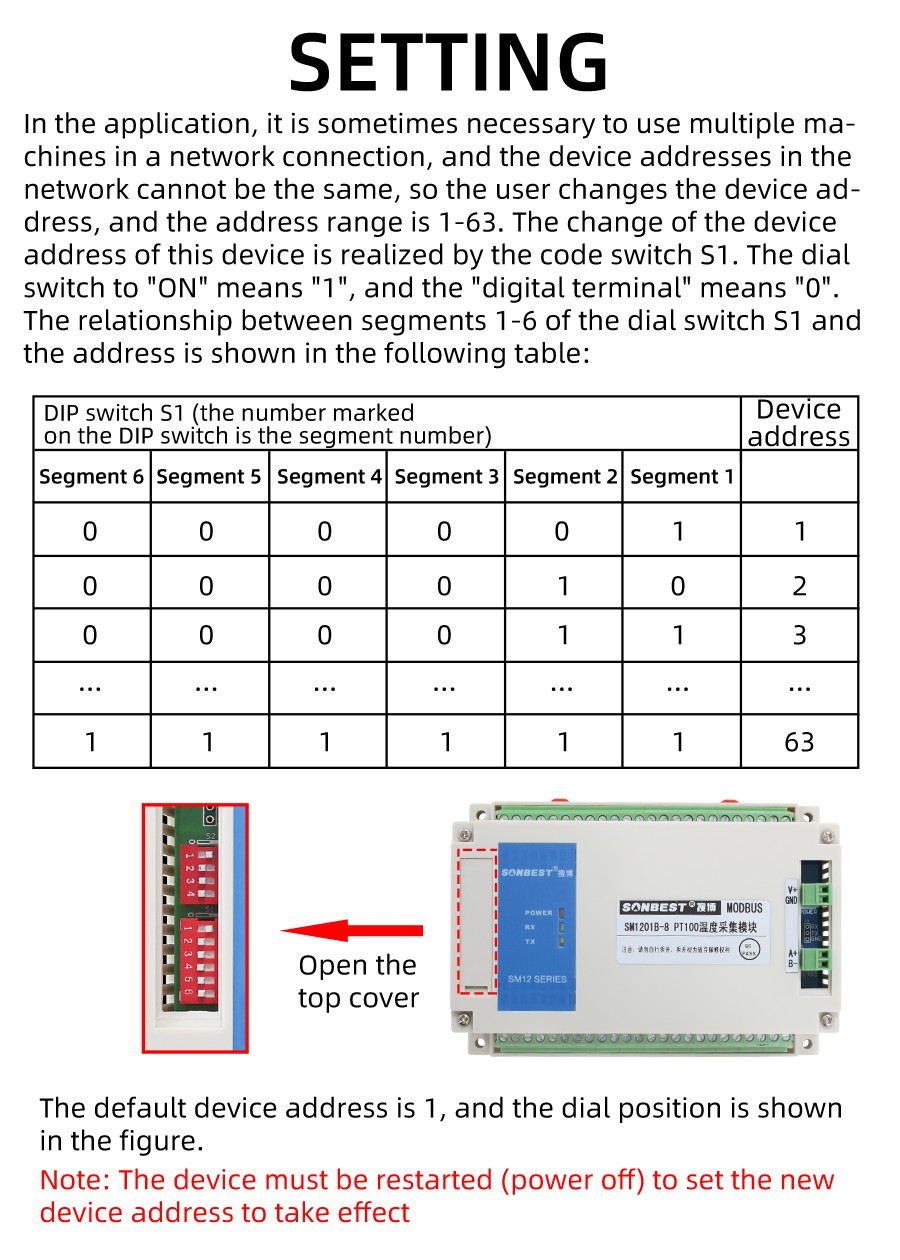

How to use?

SM1201B-16

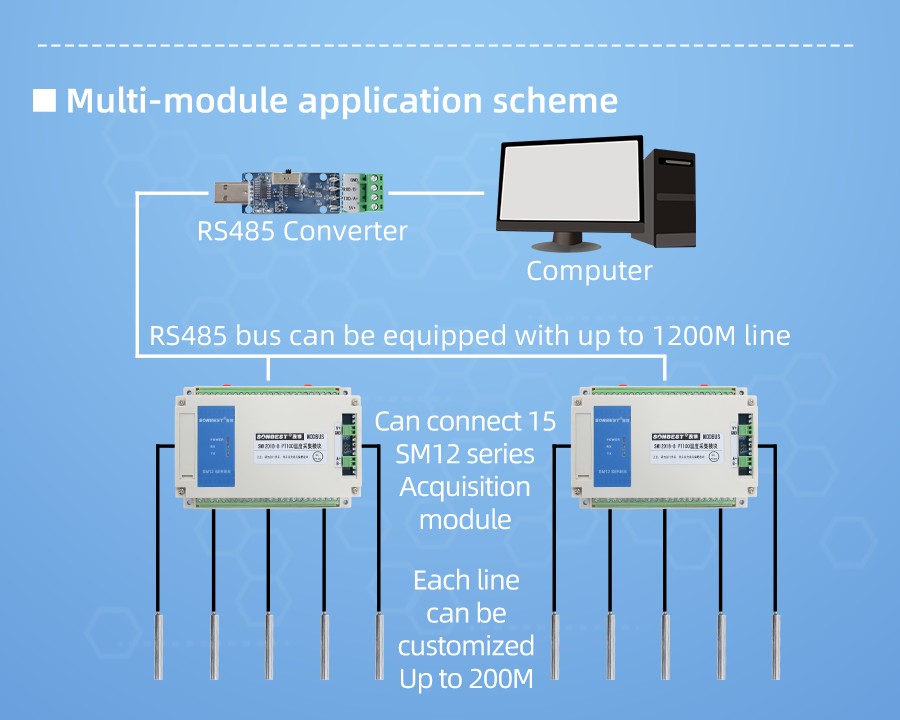

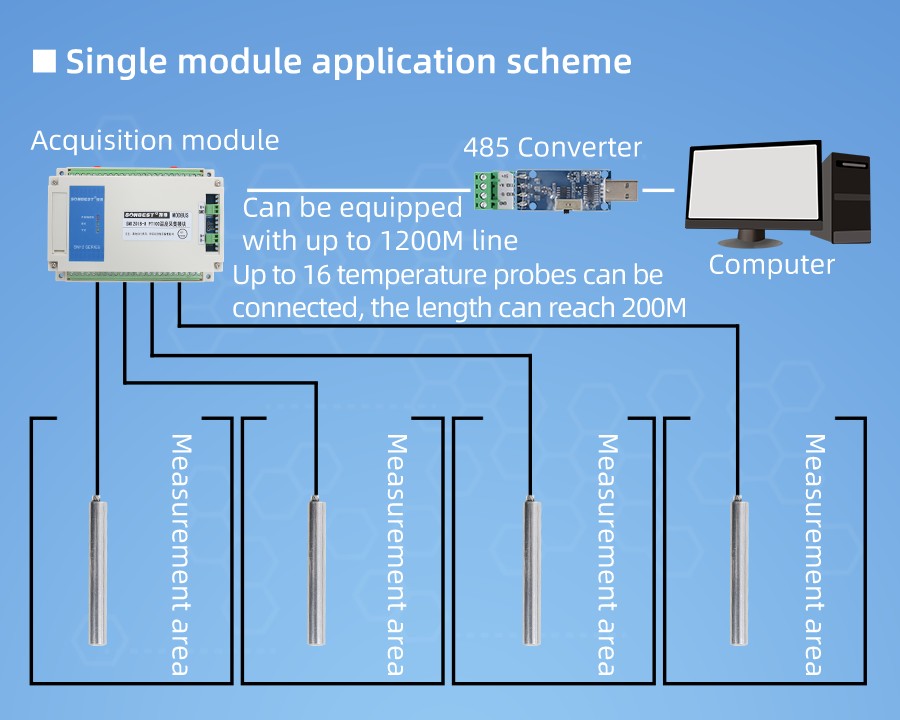

Application solution

SM1201B-16 SM1201B-16 SM1201B-16

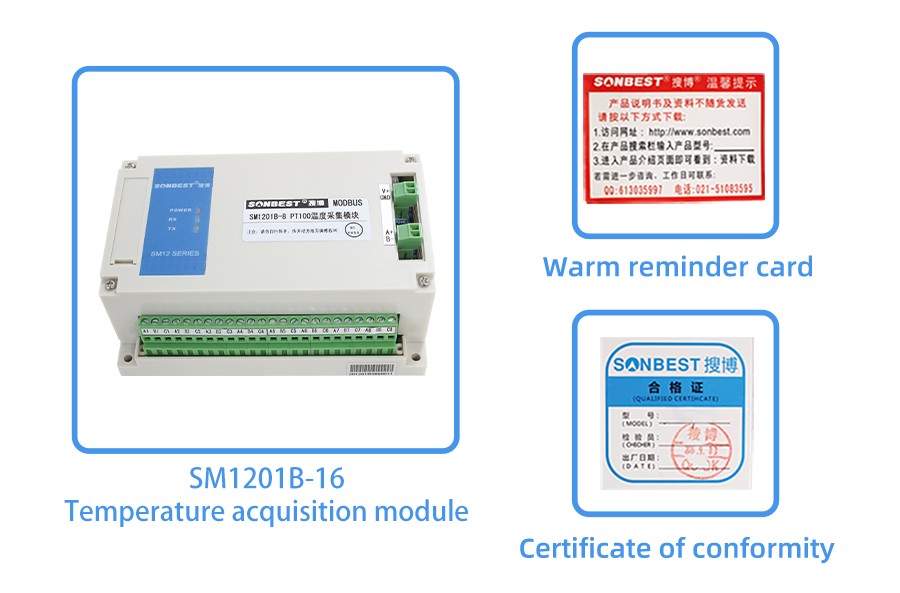

Product List

SM1201B-16

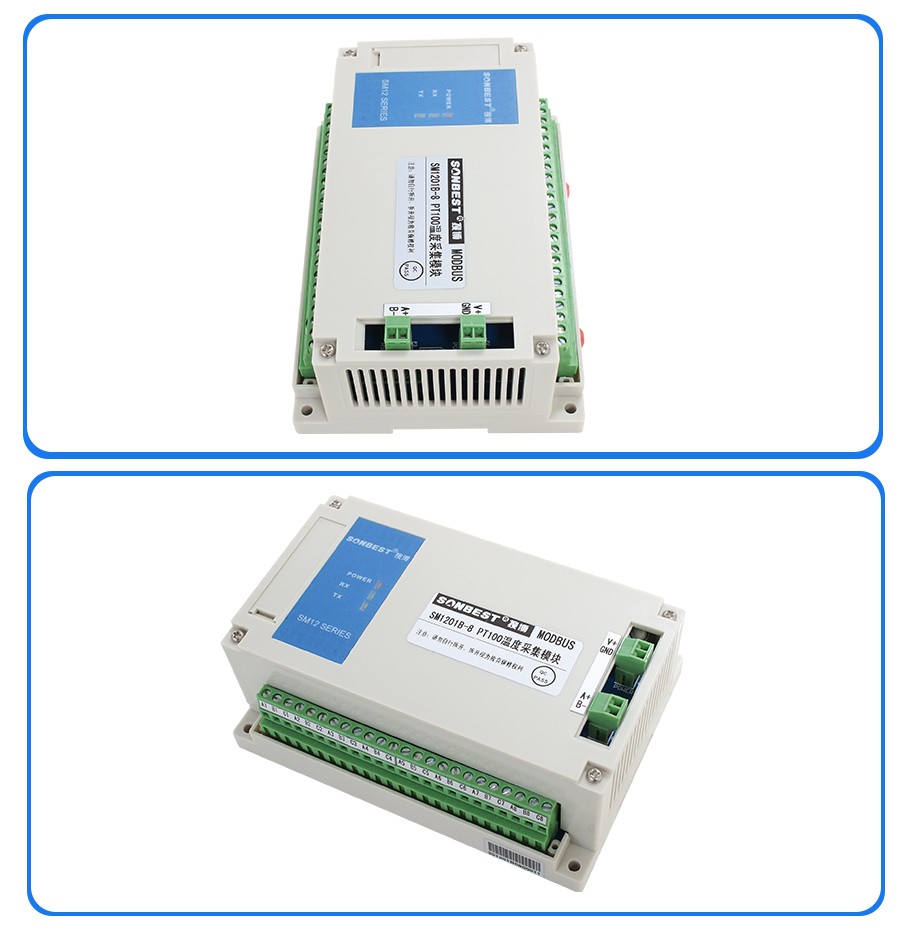

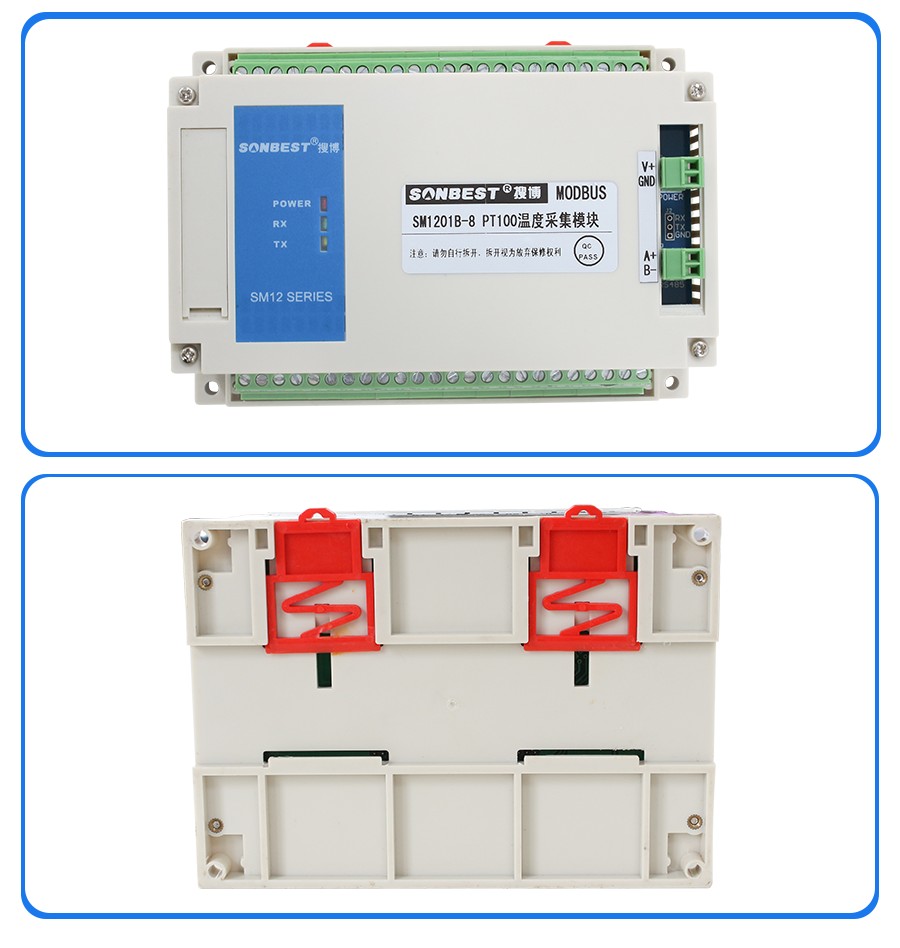

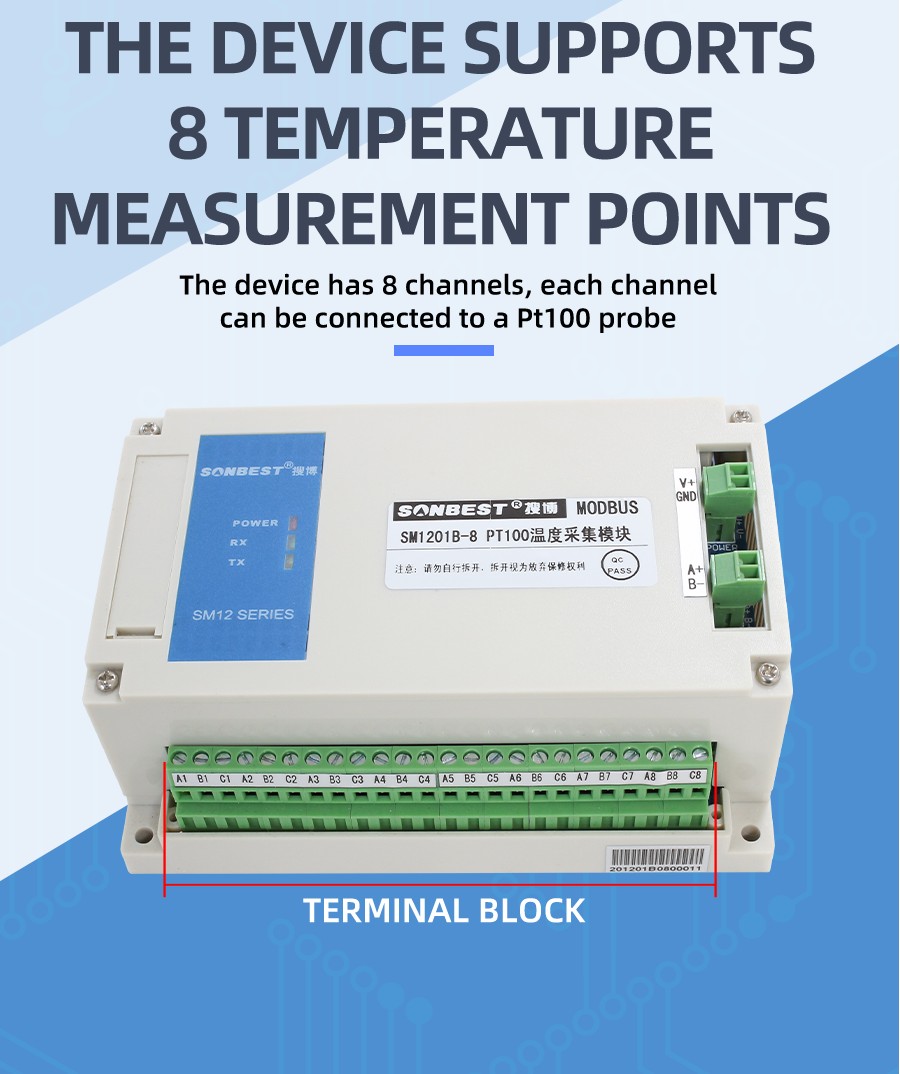

Pictures

SM1201B-16 SM1201B-16

Communication Protocol

    The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commands are hexadecimal data. The default device address is 1 when the device leaves the factory, and the module or NON-Recorder default baud rate is 9600,8,n,1 ,but data recorder default baud rate is 115200 .
1. Read data (function code 0x03)
    Inquiry frame (hexadecimal), sending example: query 1 data of 1# device, the upper computer sends the command: 01 03 00 00 00 08 44 0C .
Address Function Code Start Address Data Length Check Code
010300 0000 0844 0C
    For the correct query frame, the device will respond with data: 01 03 10 00 88 00 00 00 00 00 00 00 00 00 00 00 00 00 00 6C 3F , response format:
Address Function Code LengthData 1Data 2Data 3Data 4Data 5Data 6Data 7Data 8Data 9
Data 10Data 11Data 12Data 13Data 14Data 15Data 16Check Code0103 1000 79
00 7A00 7B00 7C00 7D00 7E00 7F00 8000 8100 8200 8300 8400 85
00 8600 8700 88 6C 3F
    Data description: The data in the command is hexadecimal, take data 1 as an example, 00 79 is converted to decimal value as 121, assuming the data magnification is 100, then the real value is 121/100=1.21, Others and so on.
2. Common data address table
Configuration Address Register Address Register Description Data Type Value Range
4000100 00temperatureRead Only0~65535
4000200 01temperatureRead Only0~65535
4000300 02temperatureRead Only0~65535
4000400 03temperatureRead Only0~65535
4000500 04temperatureRead Only0~65535
4000600 05temperatureRead Only0~65535
4000700 06temperatureRead Only0~65535
4000800 07temperatureRead Only0~65535
4000900 08temperatureRead Only0~65535
4001000 09temperatureRead Only0~65535
4001100 0AtemperatureRead Only0~65535
4001200 0BtemperatureRead Only0~65535
4001300 0CtemperatureRead Only0~65535
4001400 0DtemperatureRead Only0~65535
4001500 0EtemperatureRead Only0~65535
4001600 FtemperatureRead Only0~65535
4010100 64Model CodeRead/Write0~65535
4010200 65 total number of measuring points read/write 1~20
4010300 66device addressread/write1~249
4010400 67baud rateread/write0~6
4010500 68communication moderead/write1~4
4010600 69protocol typeread/write1~10
