 [SM1212B-12]  I2C interface 12 channel SHT20 temperature and humidity sensor acquisition module

SM1212B-12 SM1212B-12 SM1212B-12

Technical Parameters

Technical parameterParameter value
BrandSONBEST
Temperature measuring range-30℃~80℃
Temperature measuring accuracy±0.5℃ @25℃
Support sensorSHT20
Channels12
Input busIIC
Humidity measuring range0~100%RH
Humidity accuracy±3%RH @25℃
Communication InterfaceRS485
Default baud rate9600 8 n 1
PowerDC9~24V 1A
Running temperature-30~85℃

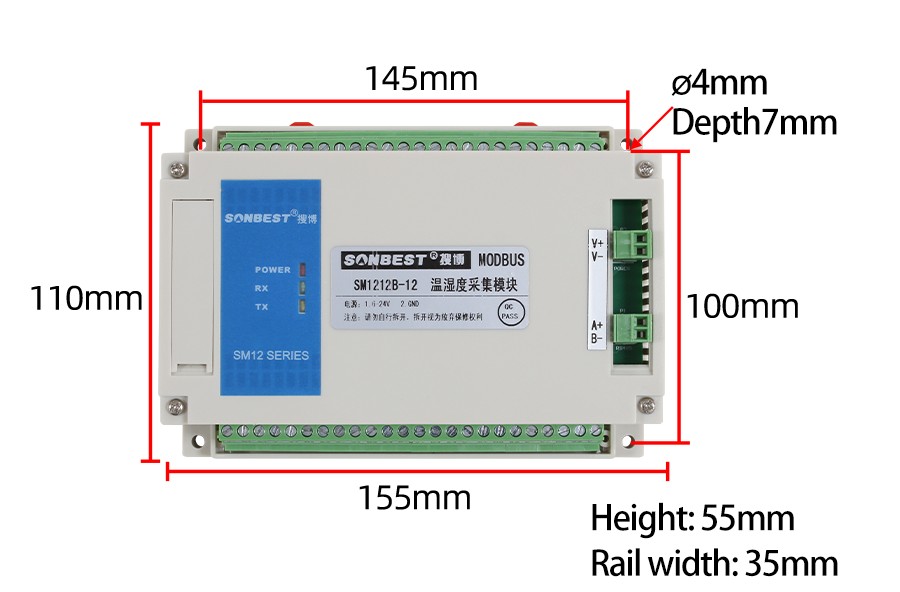

Product Size

SM1212B-12 SM1212B-12 SM1212B-12

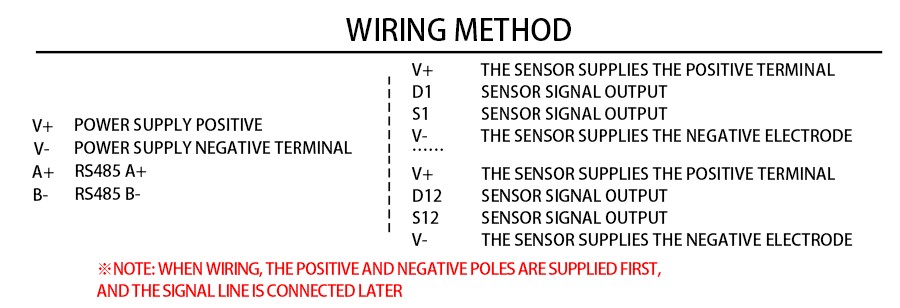

Wiring instructions

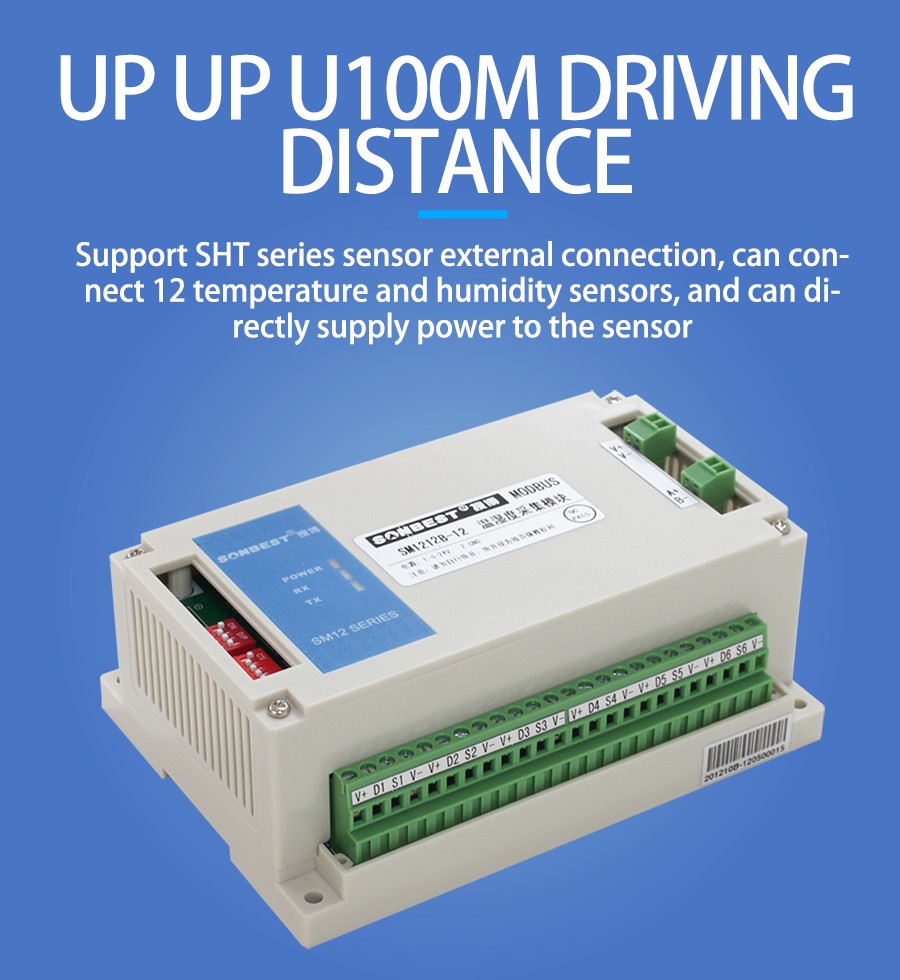

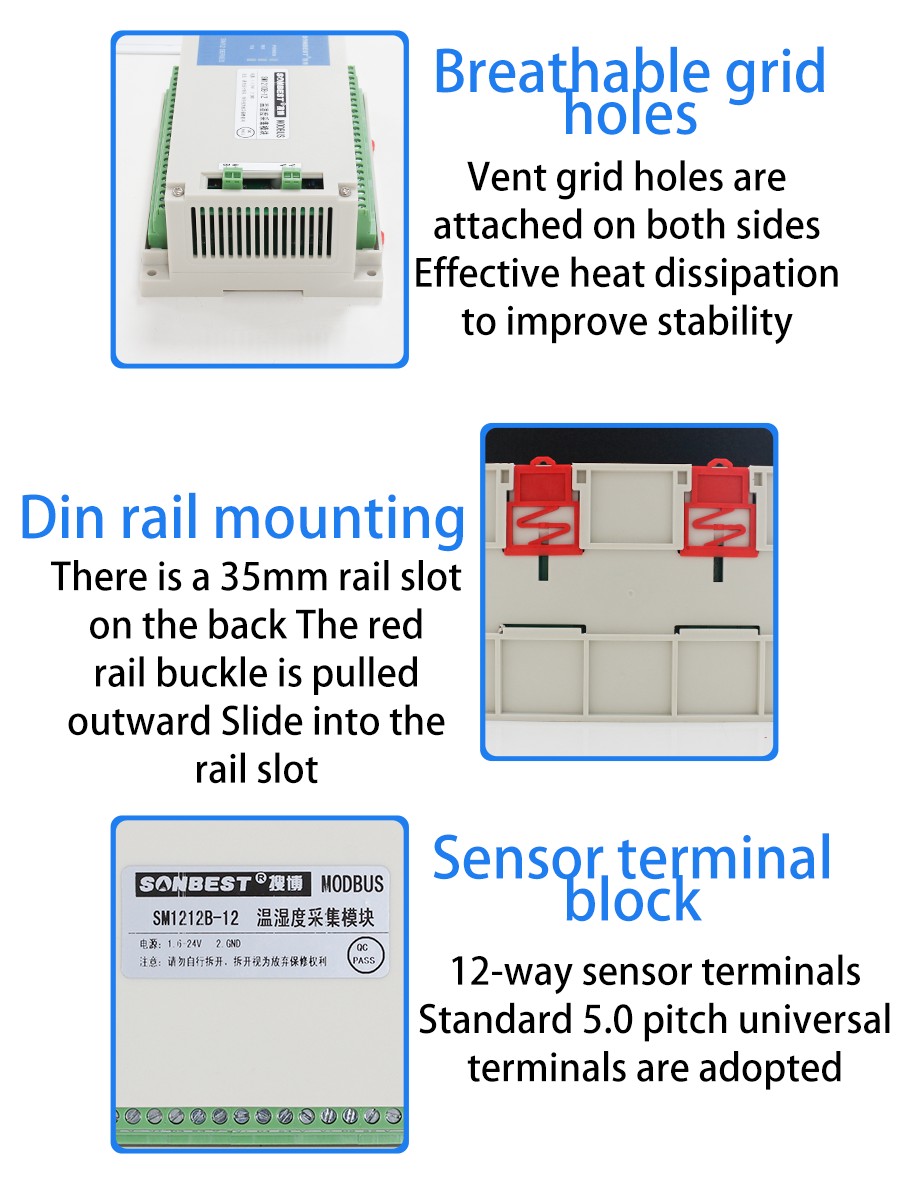

Why choose this product?

SM1212B-12

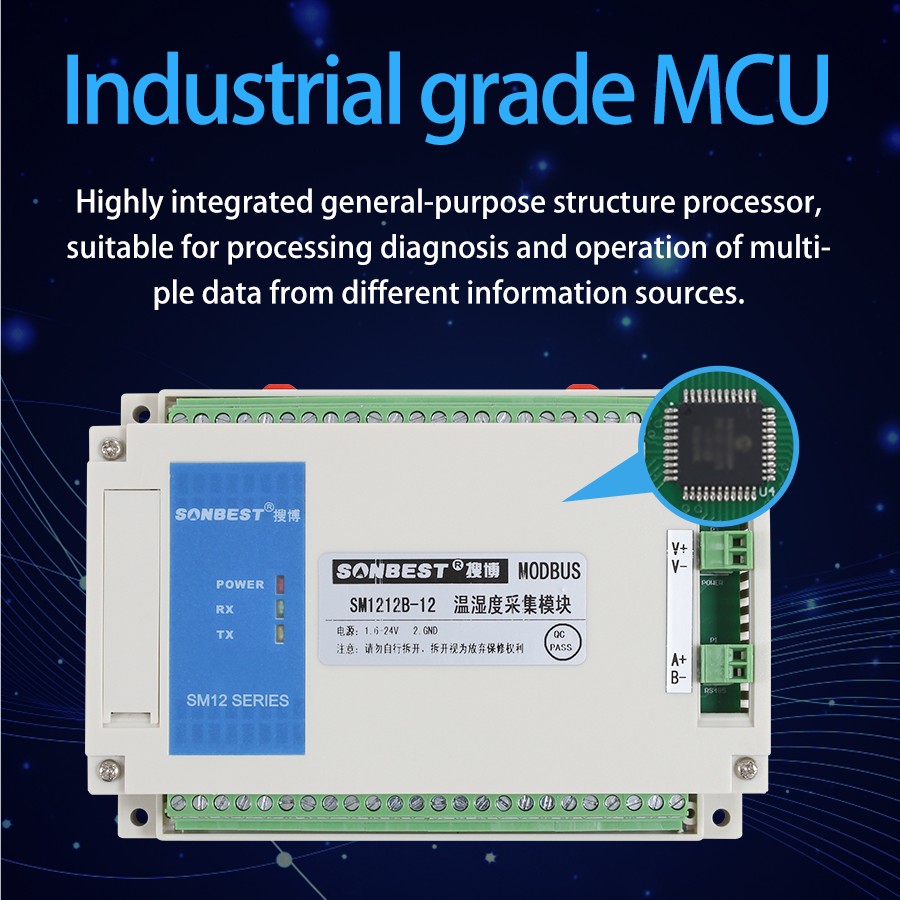

Why choose this product?

SM1212B-12 SM1212B-12 SM1212B-12

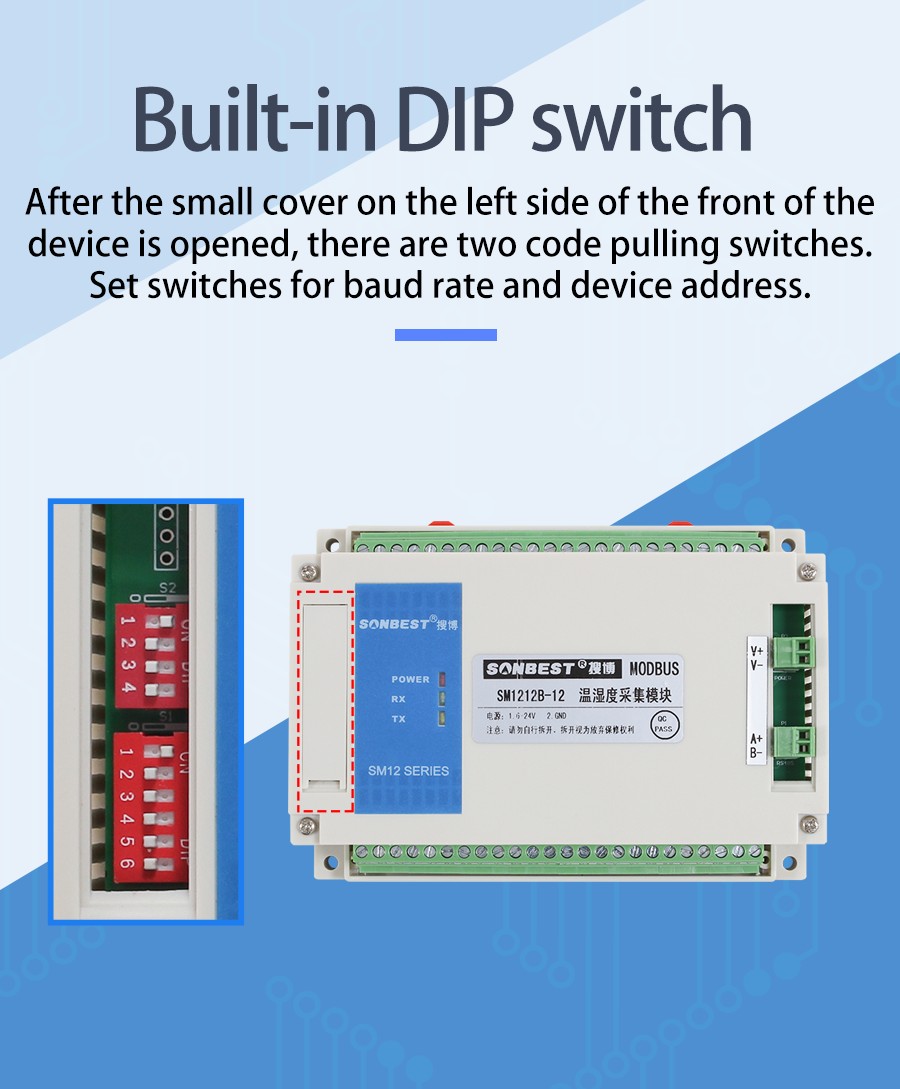

How to use?

SM1212B-12

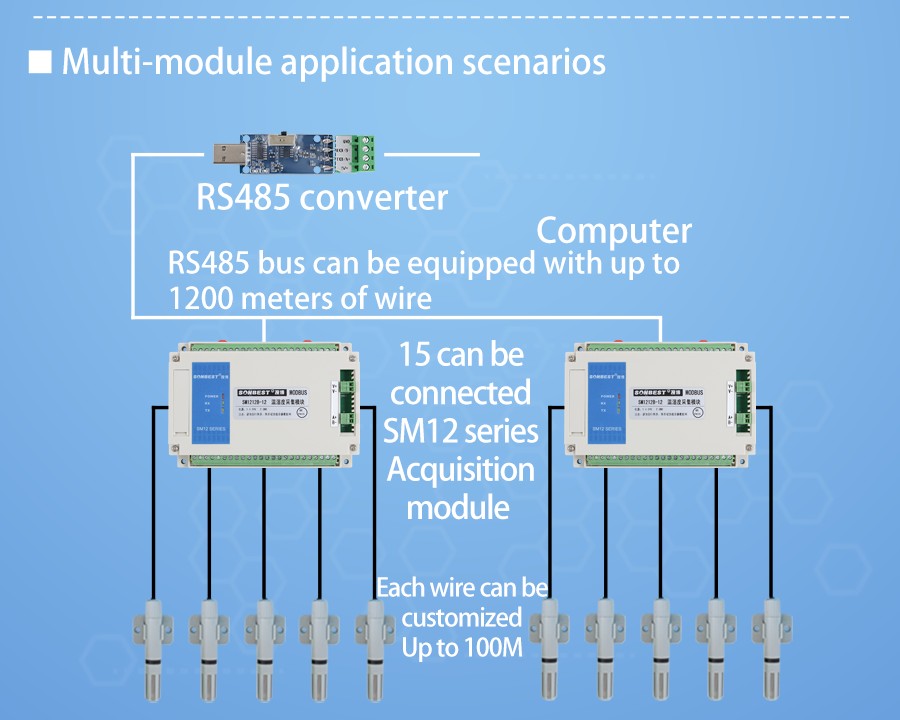

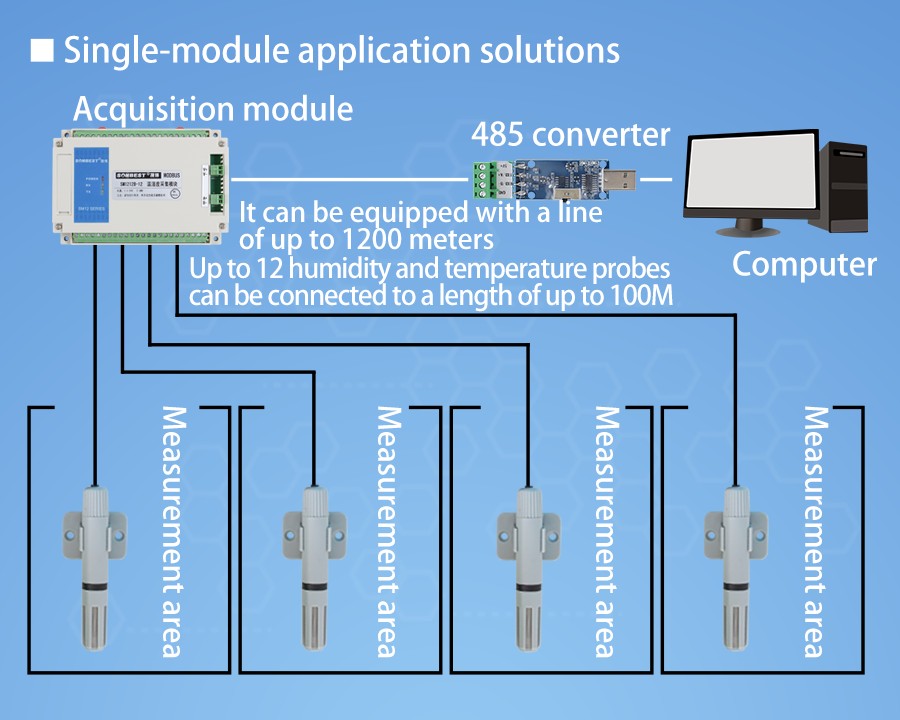

Application solution

SM1212B-12 SM1212B-12

Product List

SM1212B-12

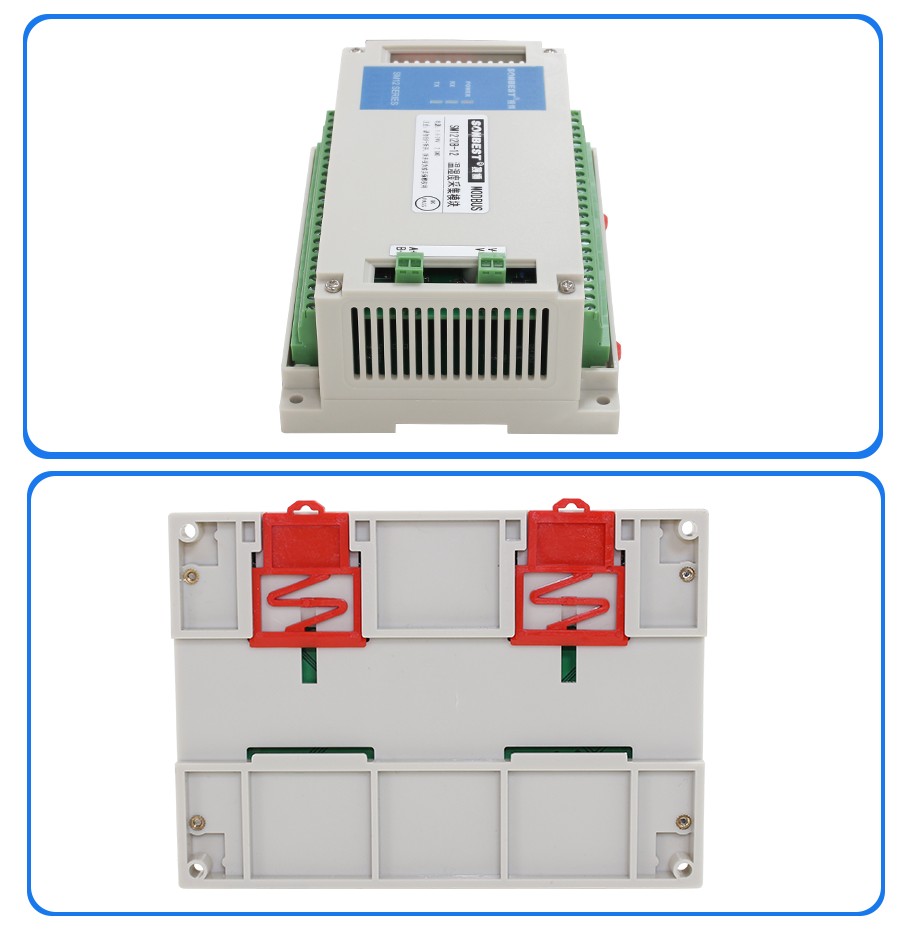

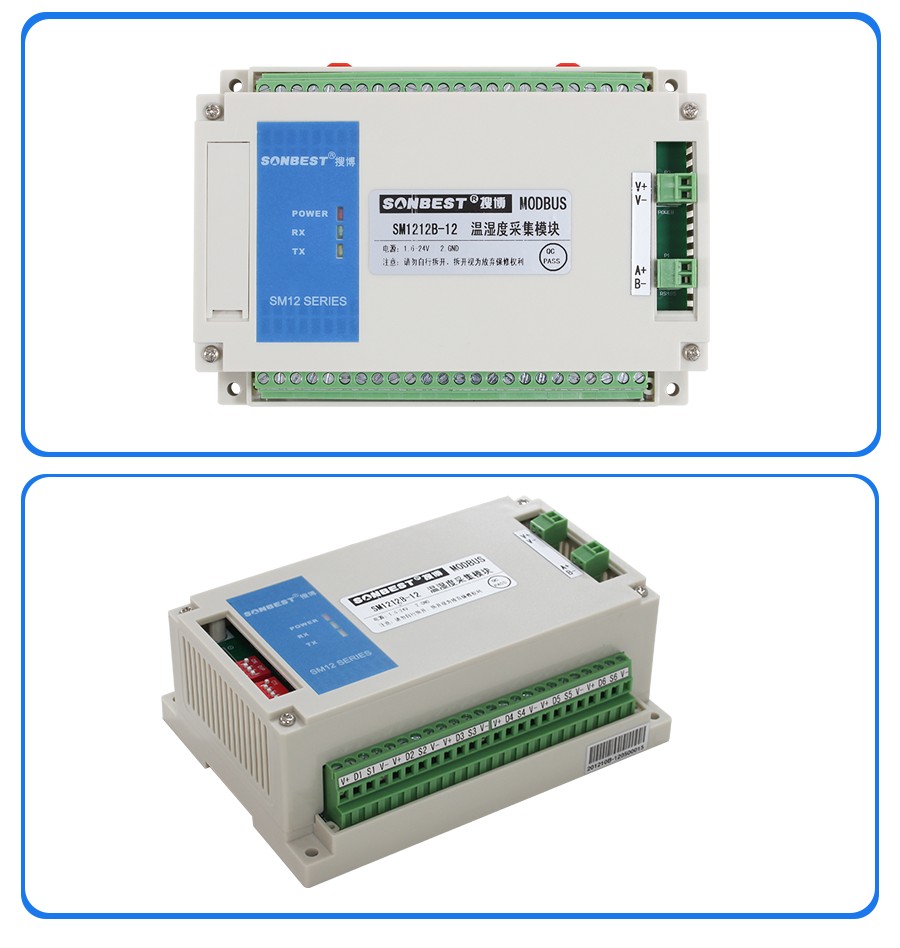

Pictures

SM1212B-12 SM1212B-12

Communication Protocol

    The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commands are hexadecimal data. The default device address is 1 when the device leaves the factory, and the module or NON-Recorder default baud rate is 9600,8,n,1 ,but data recorder default baud rate is 115200 .
1. Read data (function code 0x03)
    Inquiry frame (hexadecimal), sending example: query 1 data of 1# device, the upper computer sends the command: 01 03 00 00 00 0C 45 CF .
Address Function Code Start Address Data Length Check Code
010300 0000 0C45 CF
    For the correct query frame, the device will respond with data: 01 03 18 00 79 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A5 E8 , response format:
Address Function Code LengthData 1Data 2Data 3Data 4Data 5Data 6Data ...Data 23Data 24Check Code0103 18
00 7900 7A00 7B00 7C00 7D00 7E............00 7900 79 A5 E8
    Data description: The data in the command is hexadecimal, take data 1 as an example, 00 79 is converted to decimal value as 121, assuming the data magnification is 100, then the real value is 121/100=1.21, Others and so on.
2. Common data address table
Configuration Address Register Address Register Description Data Type Value Range
4000100 001#temperature registerRead Only0~65535
4000200 012#humidity registerRead Only0~65535
4000300 023#temperature registerRead Only0~65535
4000400 034#humidity registerRead Only0~65535
4000500 045#temperature registerRead Only0~65535
4000600 056#humidity registerRead Only0~65535
...............
4002300 1623#temperature registerRead Only0~65535
4002400 1724#humidity registerRead Only0~65535
4010100 64Model CodeRead/Write0~65535
4010200 65 total number of measuring points read/write 1~20
4010300 66device addressread/write1~249
4010400 67baud rateread/write0~6
4010500 68communication moderead/write1~4
4010600 69protocol typeread/write1~10

software for test product
After downloading, please read the readme.txt documentation

RV1000 DEGBUG AND TEST SOFTWARE

Data and Software
software for test product
After downloading, please read the readme.txt documentation

RV1000 DEGBUG AND TEST SOFTWARE

Data and Software

 Online shop

 Contact Online

Email: sale@sonbest.com

TYPE: SM1212B-12

WeChat: 13918126020

SKYPE: SOOBUU

Phone: +86-021-66862075

QQ1: 71182854 QQ2:613035997
