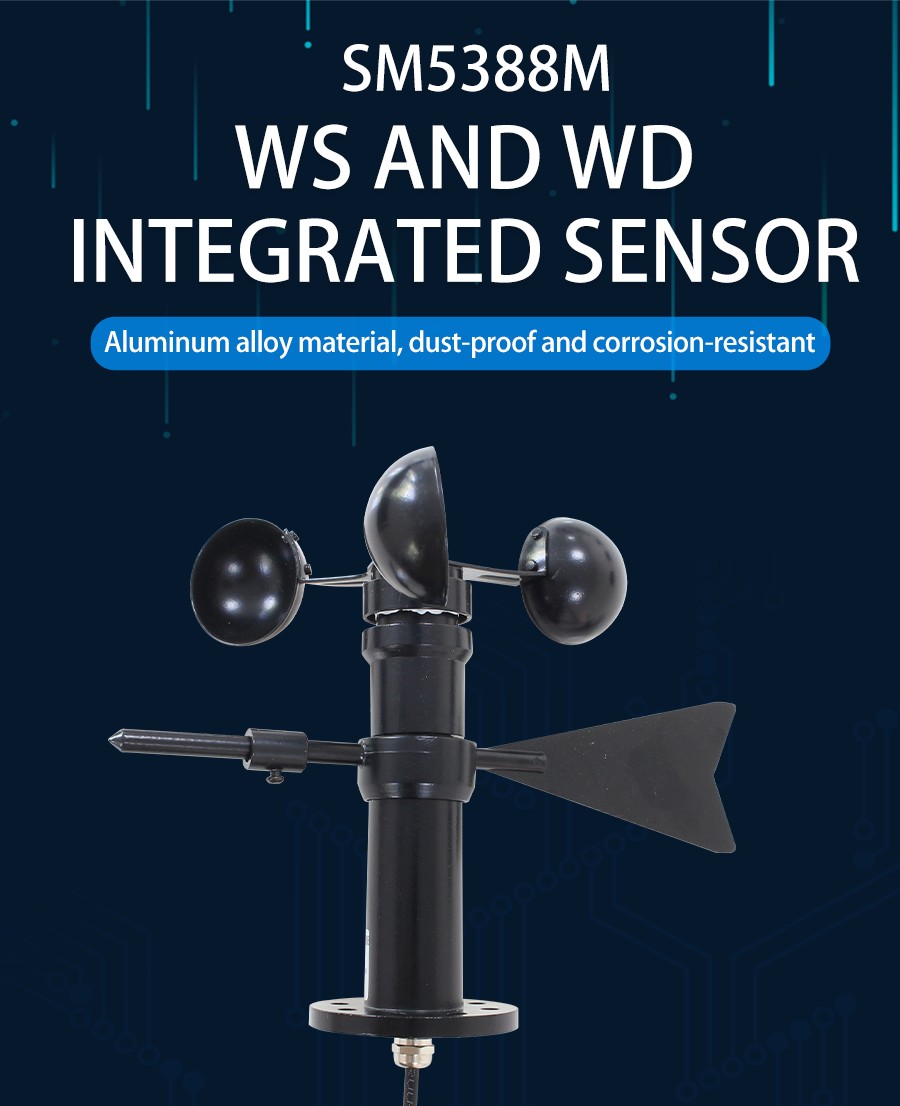

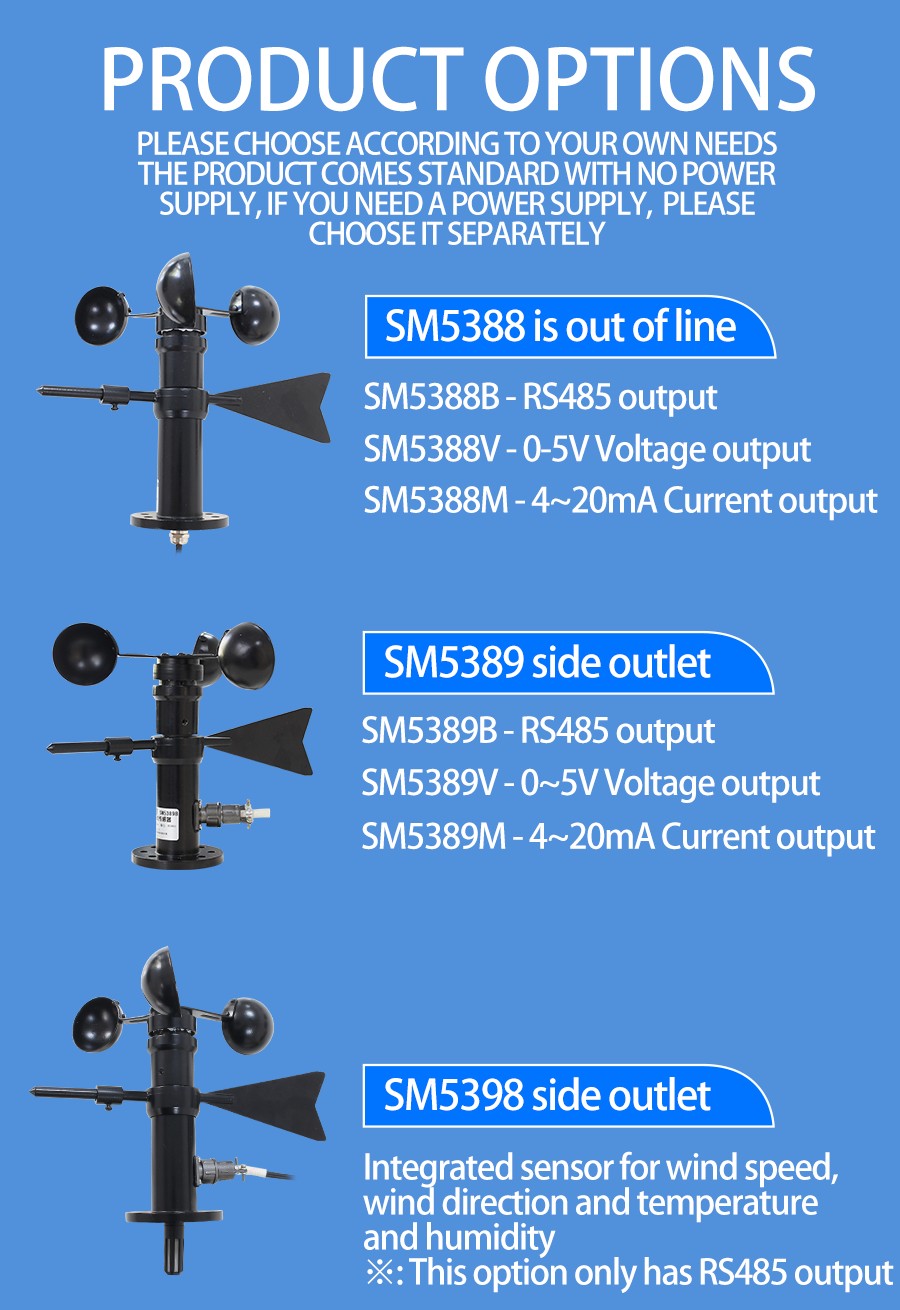

 [SM5388M]  outdoor aluminum wind speed and direction integrated sensor


SM5388M SM5388M SM5388M

Technical Parameters

Technical parameterParameter value
BrandSONBEST
Wind speed range0~30m/s
Start wind0.2m/s
Wind speed accuracy±3%

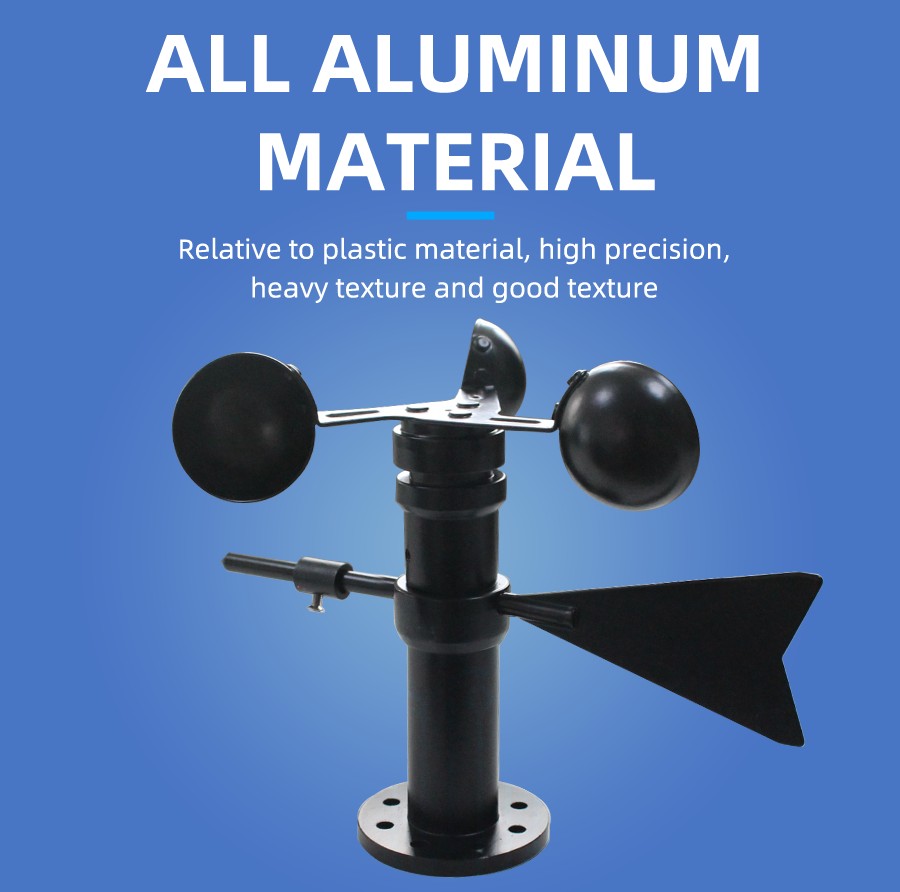

Shell materialaluminum

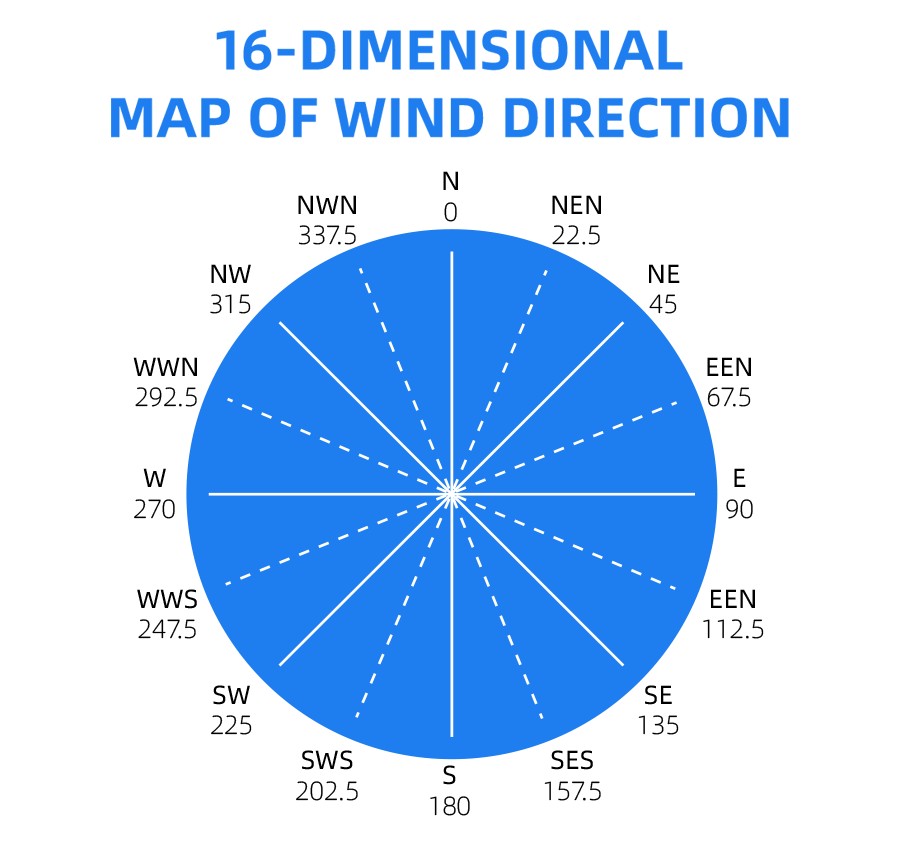

Wind direction range0~360°
Wind direction resolution22.5°
Communication InterfaceDC4~20mA
PowerDC12~24V 1A
Running temperature-30~85℃

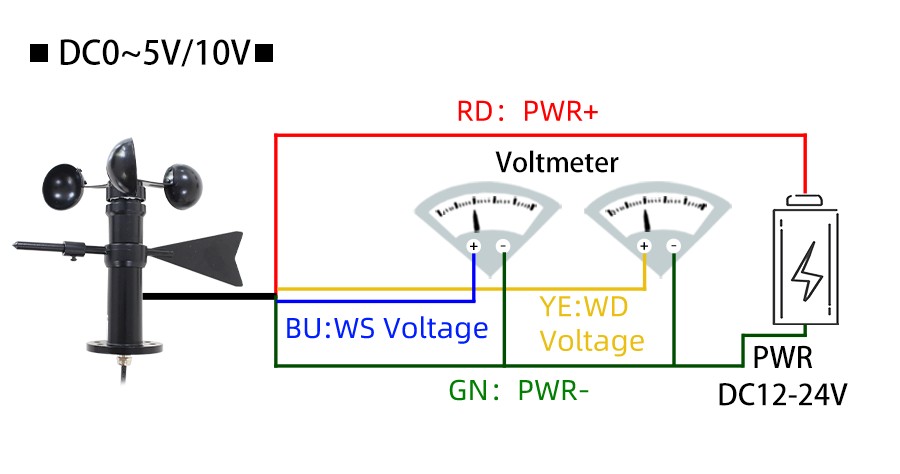

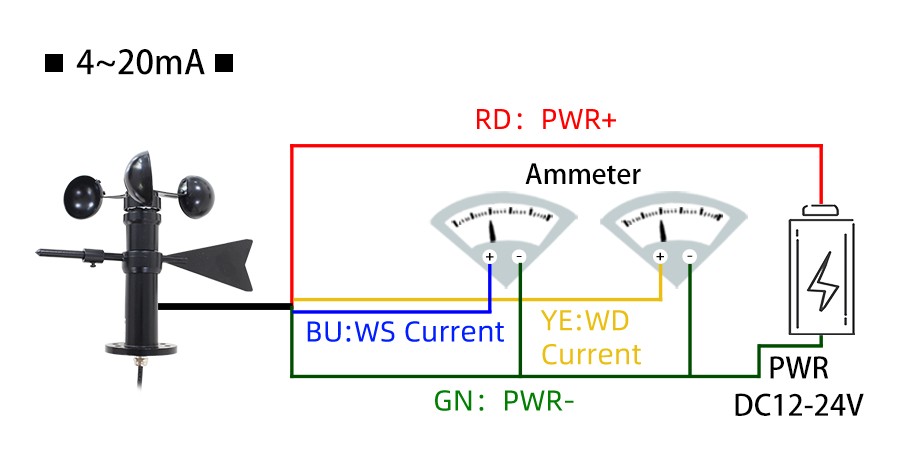

Wiring instructions

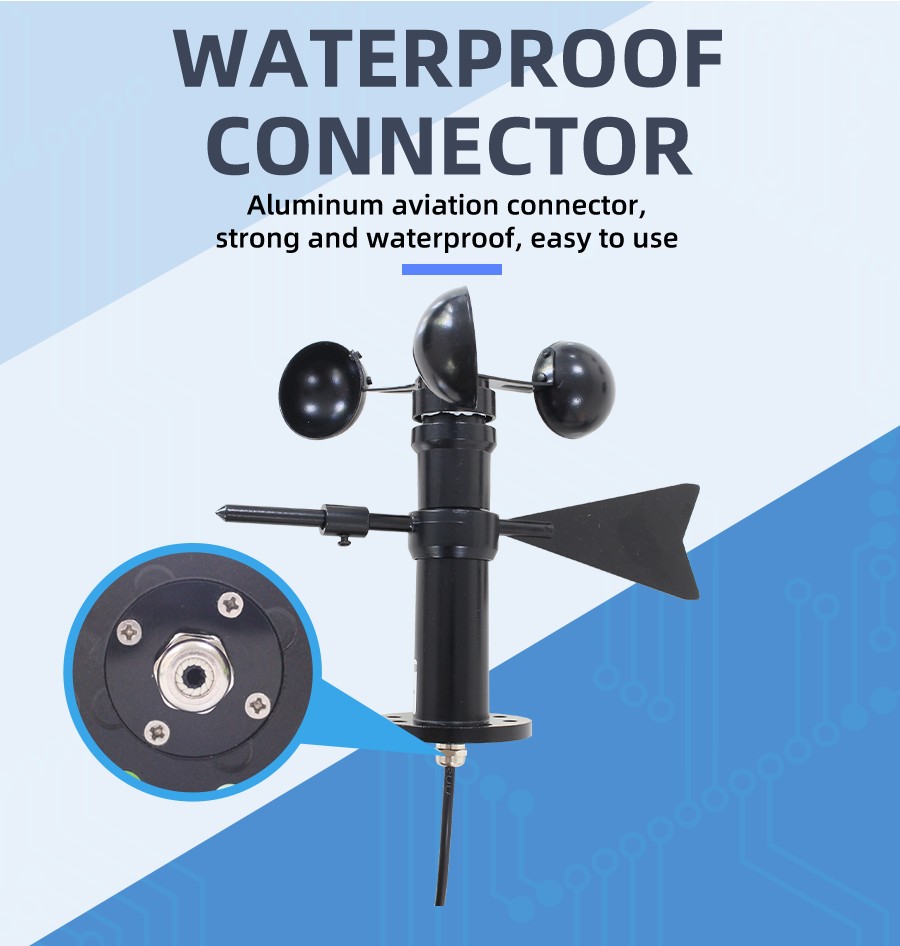

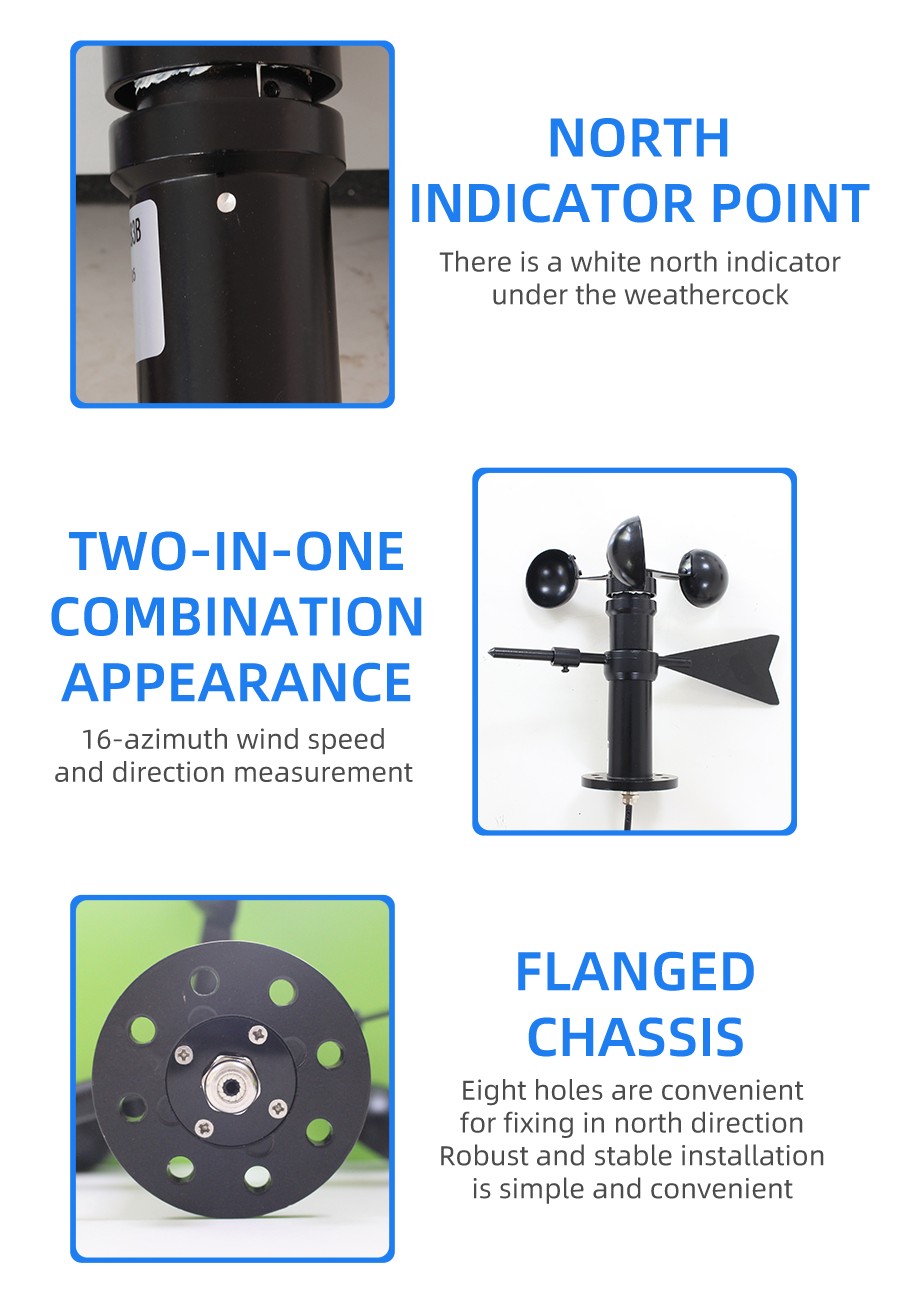

Why choose this product?

SM5388M

Why choose this product?

SM5388M SM5388M SM5388M

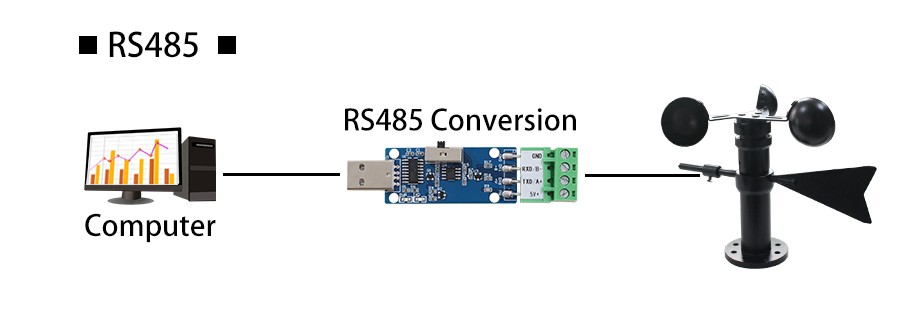

How to use?

SM5388M

Application solution

SM5388M SM5388M SM5388M SM5388M

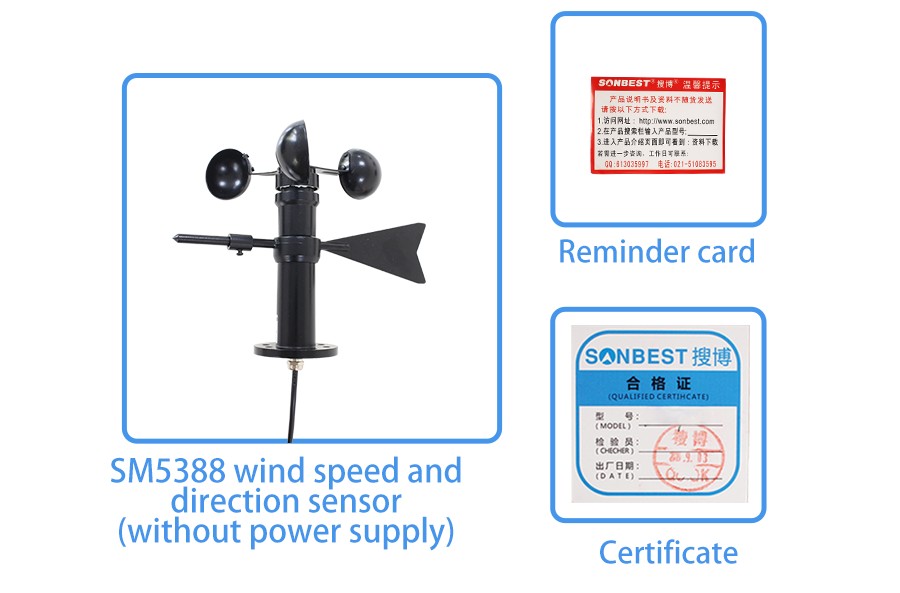

Product List

SM5388M

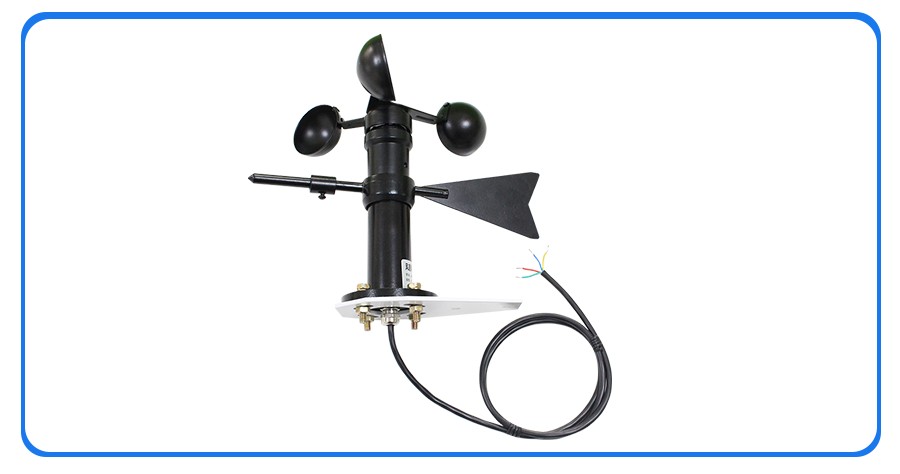

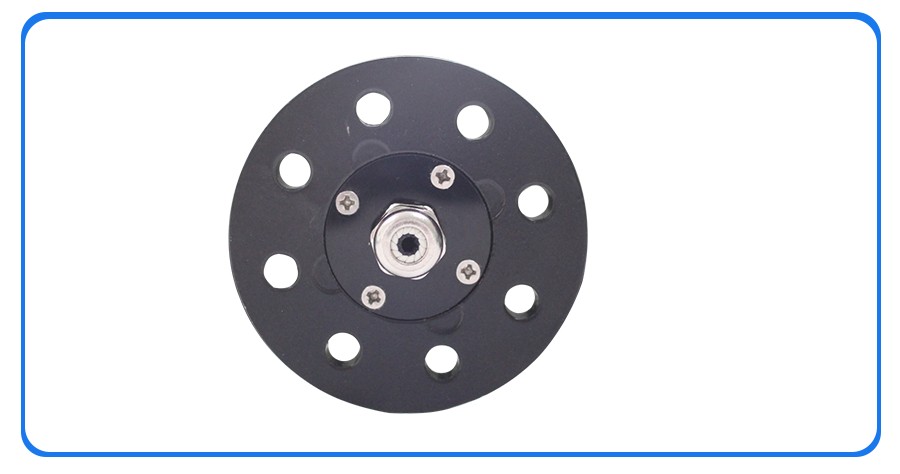

Pictures

SM5388M SM5388M

1. wind speed and current computing relationship

  For example, the range is 0~30m/s, the analog output is 4~20mA current signal, wind speed and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is wind speed range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read wind speed value, and C is the calculated current value. The list of commonly used values is as follows:
current(mA)wind speedValue (m/s) Calculation Process
40.0(30-0)*(4-4)÷(20-4)+0
51.9(30-0)*(5-4)÷(20-4)+0
63.8(30-0)*(6-4)÷(20-4)+0
75.6(30-0)*(7-4)÷(20-4)+0
87.5(30-0)*(8-4)÷(20-4)+0
99.4(30-0)*(9-4)÷(20-4)+0
1011.3(30-0)*(10-4)÷(20-4)+0
1113.1(30-0)*(11-4)÷(20-4)+0
1215.0(30-0)*(12-4)÷(20-4)+0
1316.9(30-0)*(13-4)÷(20-4)+0
1418.8(30-0)*(14-4)÷(20-4)+0
1520.6(30-0)*(15-4)÷(20-4)+0
1622.5(30-0)*(16-4)÷(20-4)+0
1724.4(30-0)*(17-4)÷(20-4)+0
1826.3(30-0)*(18-4)÷(20-4)+0
1928.1(30-0)*(19-4)÷(20-4)+0
2030.0(30-0)*(20-4)÷(20-4)+0
    As shown in the above formula, when measuring 8mA, current current is 11.5m/s。

2. conductivity and current computing relationship

  For example, the range is 0~360°, the analog output is 4~20mA current signal, conductivity and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated current value. The list of commonly used values is as follows:
current(mA)conductivityValue (°) Calculation Process
40.0(360-0)*(4-4)÷(20-4)+0
522.5(360-0)*(5-4)÷(20-4)+0
645.0(360-0)*(6-4)÷(20-4)+0
767.5(360-0)*(7-4)÷(20-4)+0
890.0(360-0)*(8-4)÷(20-4)+0
9112.5(360-0)*(9-4)÷(20-4)+0
10135.0(360-0)*(10-4)÷(20-4)+0
11157.5(360-0)*(11-4)÷(20-4)+0
12180.0(360-0)*(12-4)÷(20-4)+0
13202.5(360-0)*(13-4)÷(20-4)+0
14225.0(360-0)*(14-4)÷(20-4)+0
15247.5(360-0)*(15-4)÷(20-4)+0
16270.0(360-0)*(16-4)÷(20-4)+0
17292.5(360-0)*(17-4)÷(20-4)+0
18315.0(360-0)*(18-4)÷(20-4)+0
19337.5(360-0)*(19-4)÷(20-4)+0
20360.0(360-0)*(20-4)÷(20-4)+0
    As shown in the above formula, when measuring 8mA, current current is 94°。
