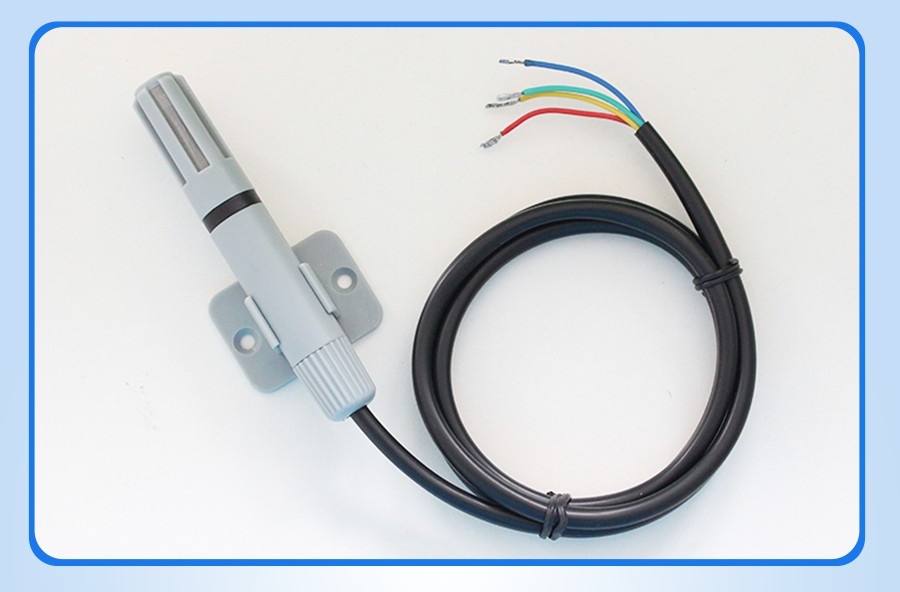

 [SM7320M]  4-20mArack temperature and humidity sensor


SM7320M SM7320M

Technical Parameters

Technical parameterParameter value
BrandSONBEST
Temperature measuring range-30℃~80℃
Temperature measuring accuracy±0.5℃ @25℃
Humidity measuring range0~100%RH
Humidity accuracy±3%RH @25℃
Interface2-wire 4-20mA
PowerDC12~24V 1A
Running temperature-30~85℃
Working humidity5%RH~90%RH

Product Size

SM7320M SM7320M SM7320M SM7320M SM7320M

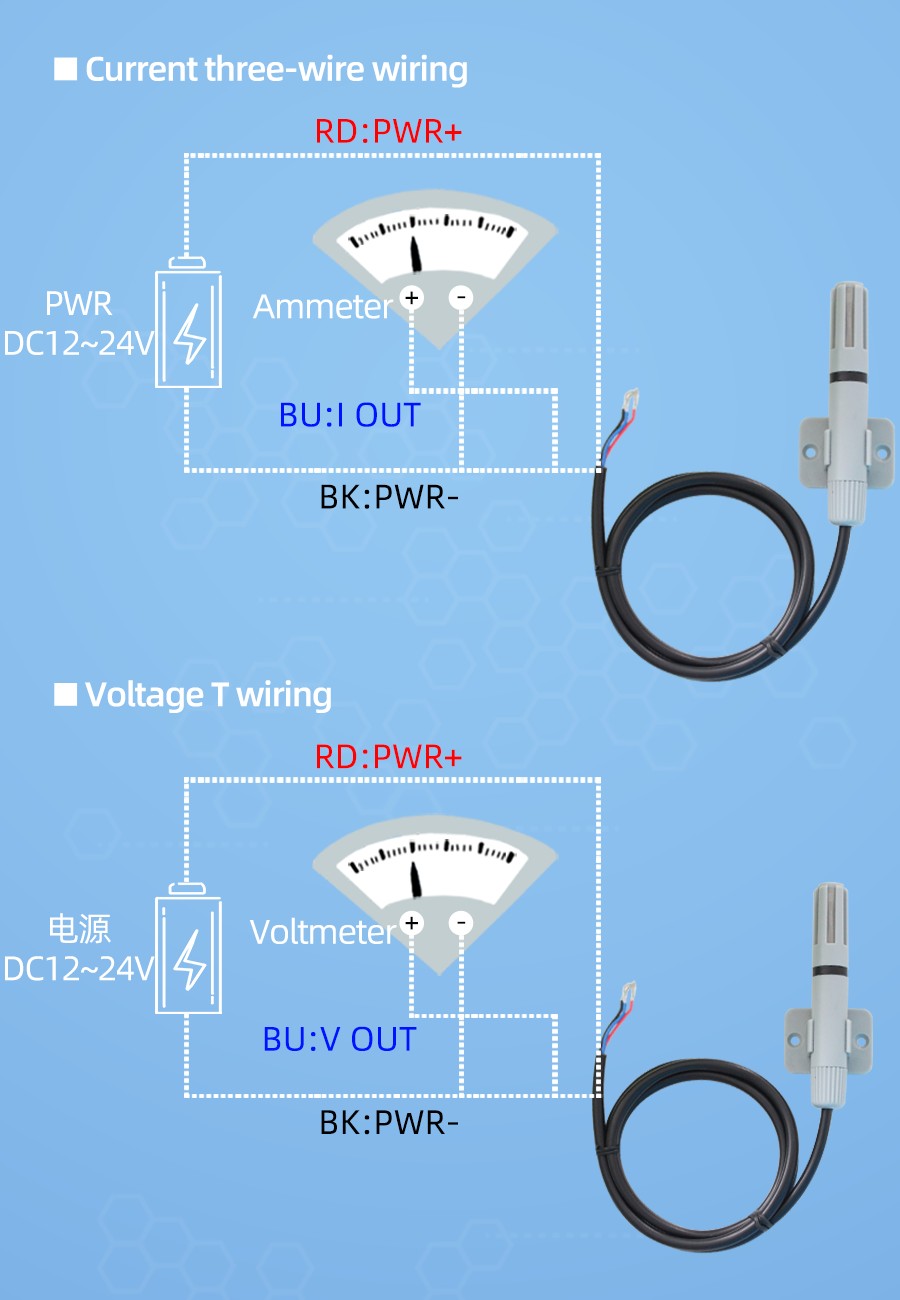

Wiring instructions

Kit recommendation

SM7320M

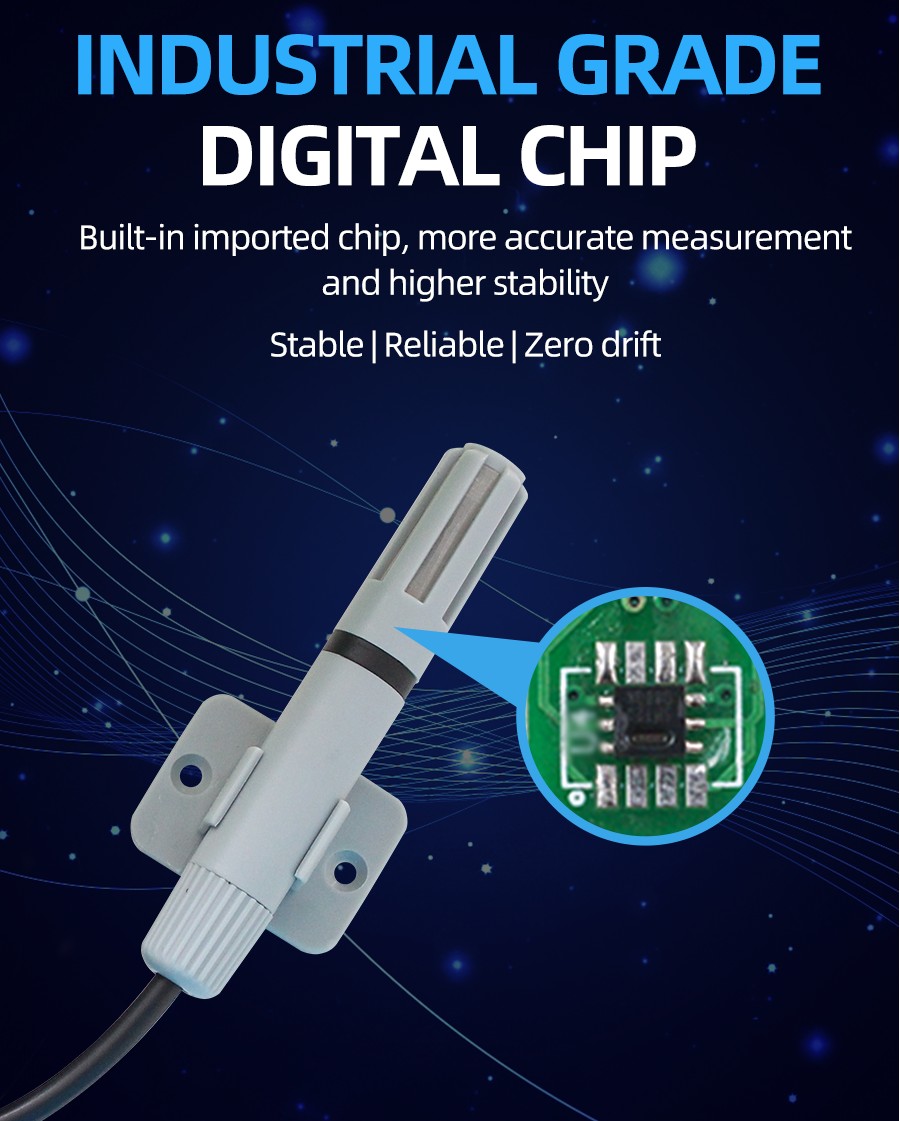

Why choose this product?

SM7320M SM7320M SM7320M

How to use?

SM7320M SM7320M SM7320M

Application solution

SM7320M SM7320M SM7320M

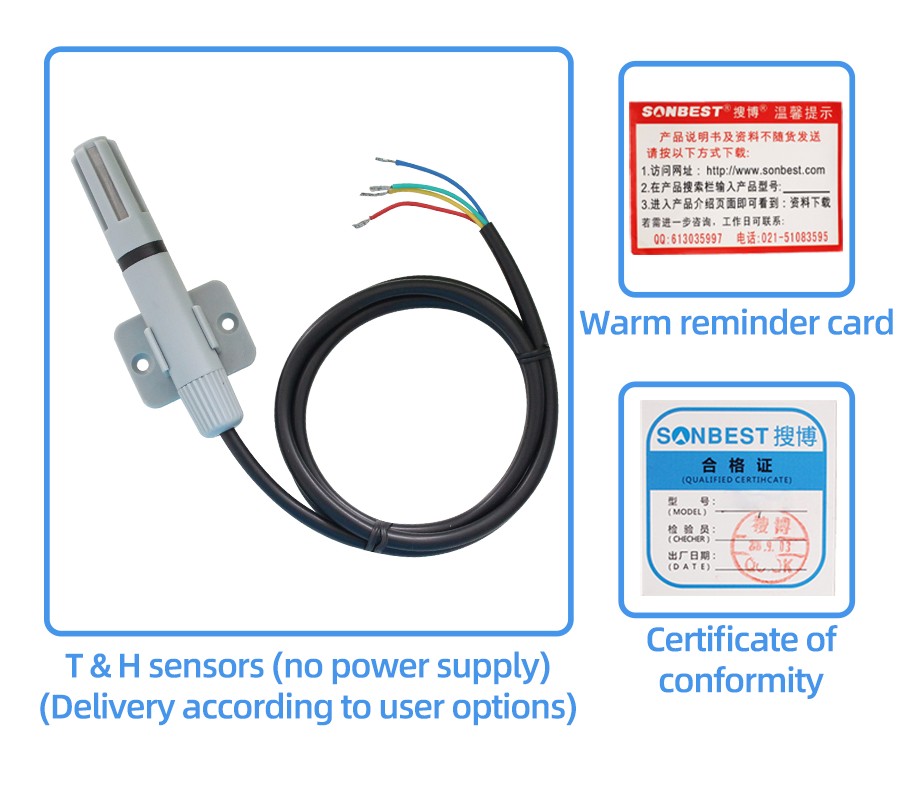

Product List

SM7320M

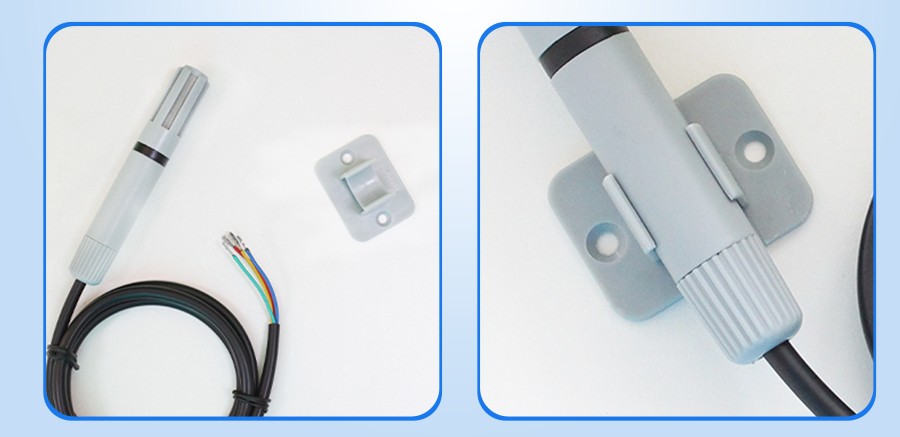

Pictures

SM7320M SM7320M

1. temperature and current computing relationship

  For example, the range is -30~80℃, the analog output is 4~20mA current signal, temperature and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is temperature range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read temperature value, and C is the calculated current value. The list of commonly used values is as follows:
current(mA)temperatureValue (℃) Calculation Process
4-30(80-(-30))*(4-4)÷(20-4)+-30
5-23.125(80-(-30))*(5-4)÷(20-4)+-30
6-16.25(80-(-30))*(6-4)÷(20-4)+-30
7-9.375(80-(-30))*(7-4)÷(20-4)+-30
8-2.5(80-(-30))*(8-4)÷(20-4)+-30
94.375(80-(-30))*(9-4)÷(20-4)+-30
1011.25(80-(-30))*(10-4)÷(20-4)+-30
1118.125(80-(-30))*(11-4)÷(20-4)+-30
1225(80-(-30))*(12-4)÷(20-4)+-30
1331.875(80-(-30))*(13-4)÷(20-4)+-30
1438.75(80-(-30))*(14-4)÷(20-4)+-30
1545.625(80-(-30))*(15-4)÷(20-4)+-30
1652.5(80-(-30))*(16-4)÷(20-4)+-30
1759.375(80-(-30))*(17-4)÷(20-4)+-30
1866.25(80-(-30))*(18-4)÷(20-4)+-30
1973.125(80-(-30))*(19-4)÷(20-4)+-30
2080(80-(-30))*(20-4)÷(20-4)+-30
    As shown in the above formula, when measuring 8mA, current current is 31.5℃。

2. humidity and current computing relationship

  For example, the range is 0~100%RH, the analog output is 4~20mA current signal, humidity and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is humidity range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read humidity value, and C is the calculated current value. The list of commonly used values is as follows:
current(mA)humidityValue (%RH) Calculation Process
40.0(100-0)*(4-4)÷(20-4)+0
56.3(100-0)*(5-4)÷(20-4)+0
612.5(100-0)*(6-4)÷(20-4)+0
718.8(100-0)*(7-4)÷(20-4)+0
825.0(100-0)*(8-4)÷(20-4)+0
931.3(100-0)*(9-4)÷(20-4)+0
1037.5(100-0)*(10-4)÷(20-4)+0
1143.8(100-0)*(11-4)÷(20-4)+0
1250.0(100-0)*(12-4)÷(20-4)+0
1356.3(100-0)*(13-4)÷(20-4)+0
1462.5(100-0)*(14-4)÷(20-4)+0
1568.8(100-0)*(15-4)÷(20-4)+0
1675.0(100-0)*(16-4)÷(20-4)+0
1781.3(100-0)*(17-4)÷(20-4)+0
1887.5(100-0)*(18-4)÷(20-4)+0
1993.8(100-0)*(19-4)÷(20-4)+0
20100.0(100-0)*(20-4)÷(20-4)+0
    As shown in the above formula, when measuring 8mA, current current is 29%RH。
