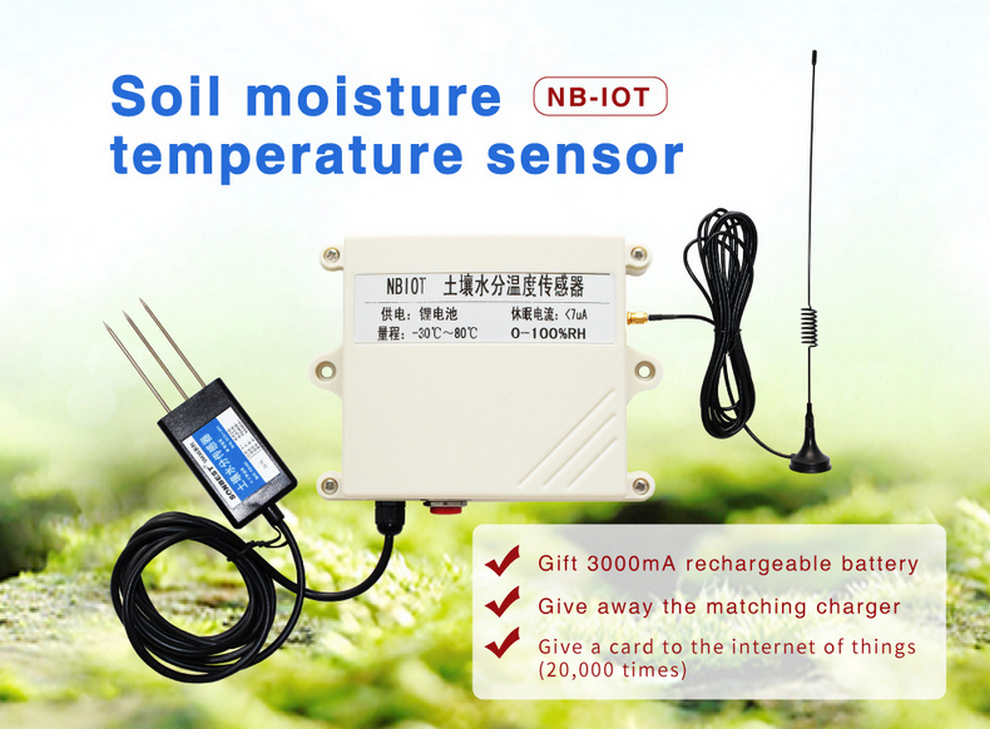

 [SN2130B-MOSI]  NBIOT soil moisture temperature sensor

SN2130B-MOSI SN2130B-MOSI

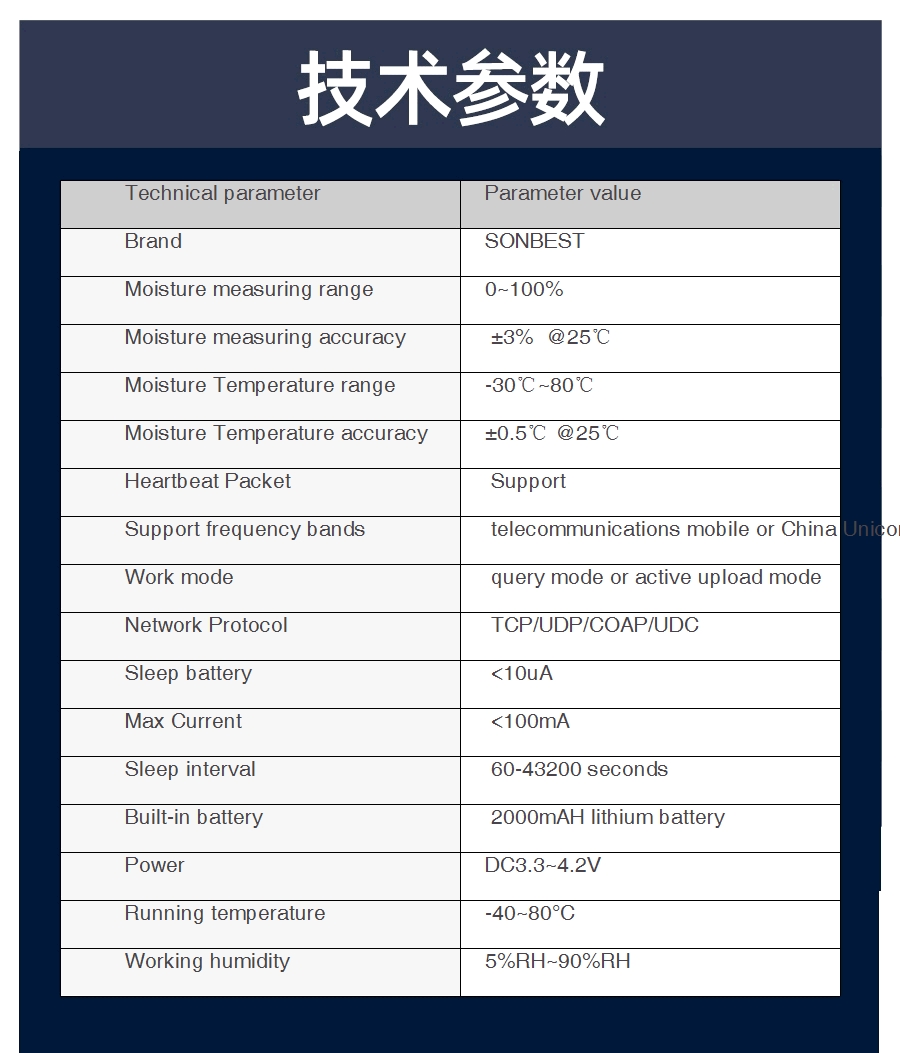

Technical parameterParameter value
BrandSONBEST
Moisture measuring range0~100%
Moisture measuring accuracy ±3% @25℃
Moisture Temperature range-30℃~80℃
Moisture Temperature accuracy±0.5℃ @25℃
Heartbeat Packet Support
Support frequency bands telecommunications mobile or China Unicom network
Work mode query mode or active upload mode
Network Protocol TCP/UDP/COAP/UDC
Sleep battery <10uA
Max Current <100mA
Sleep interval 60-43200 seconds

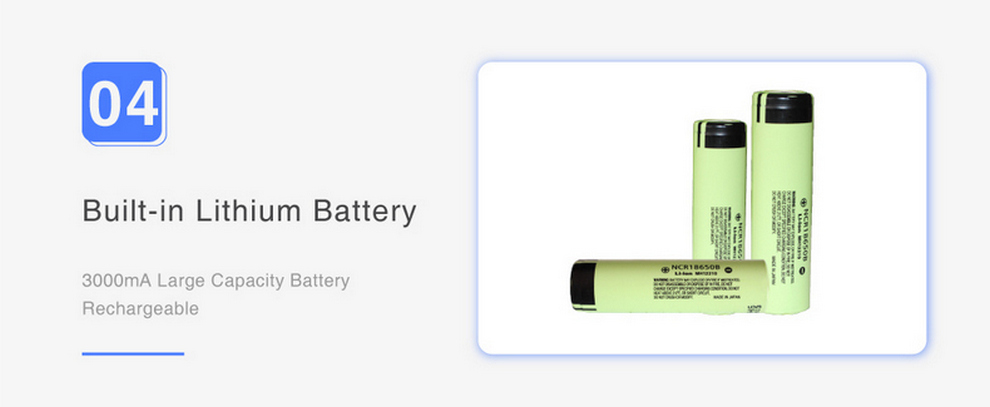

Built-in battery 2000mAH lithium battery
PowerDC3.3~4.2V
Running temperature-30~85℃
Working humidity5%RH~90%RH

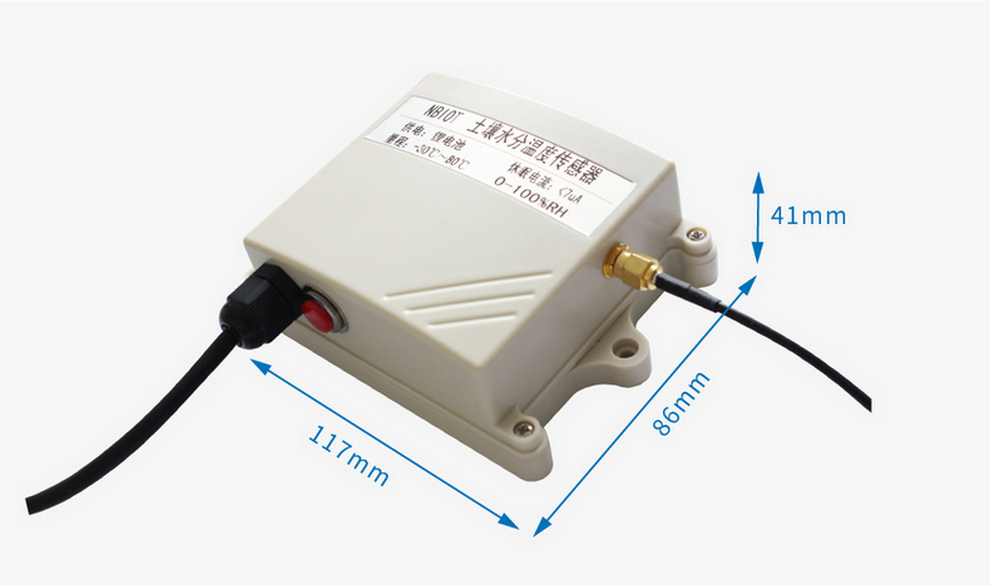

Product Size

SN2130B-MOSI

Why choose this product?

SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI SN2130B-MOSI

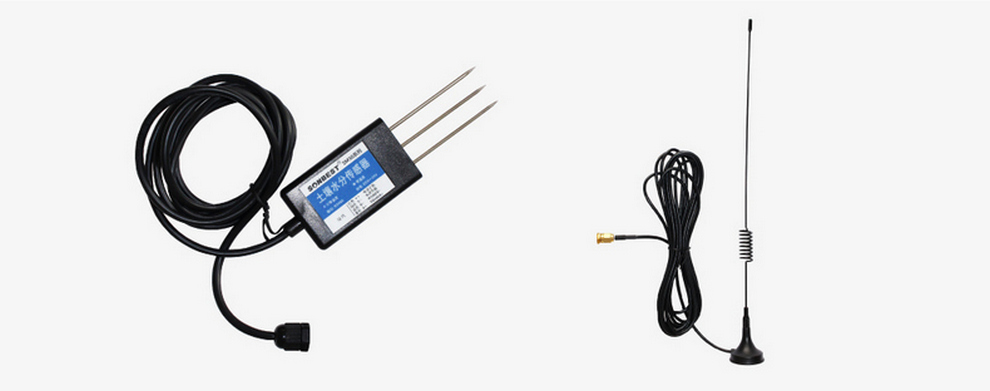

Pictures

SN2130B-MOSI SN2130B-MOSI
software for test product
After downloading, please read the readme.txt documentation

RV1000 DEGBUG AND TEST SOFTWARE

Data and Software
software for test product
Data and Software
software for test product
After downloading, please read the readme.txt documentation

RV1000 DEGBUG AND TEST SOFTWARE

Data and Software
