SY8206B using the standard RS485 bus MODBUS-RTU protocol,easy access to PLC，DCS and other instruments or systems for monitoring temperature state quantities.The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.

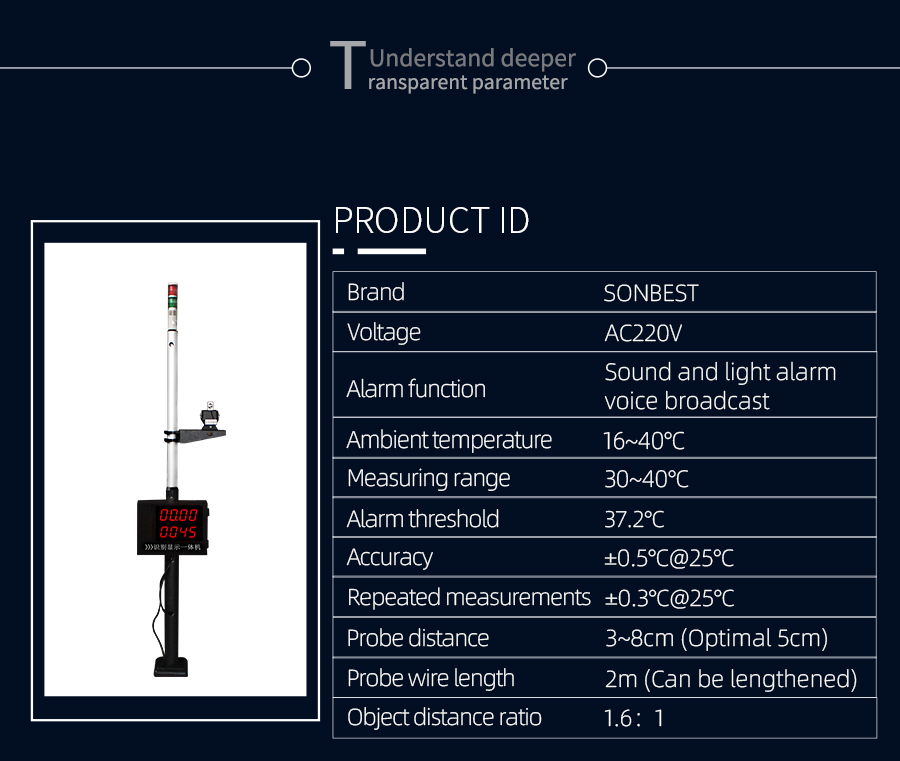

Technical Parameters
| Technical parameter | Parameter value |
| Brand | SONBEST |
| Temperature measurement range | 30~+45°C |
| Temperature measurement accuracy | ±1 or %1 take the maximum value (maximum ±0.5°C) |
| Repeat measurement accuracy | ±0.3 or %0.5 take the maximum value (maximum ±0.3°C) |
| alarm mode | voice and sound and light alarm |
| Counting function | Have |
| Optimal measuring distance | 3~10cm |
| Column height | adjustable from 1.1 to 1.8 meters |
| Whole machine weight | 30kg |
| Test object | non-object |

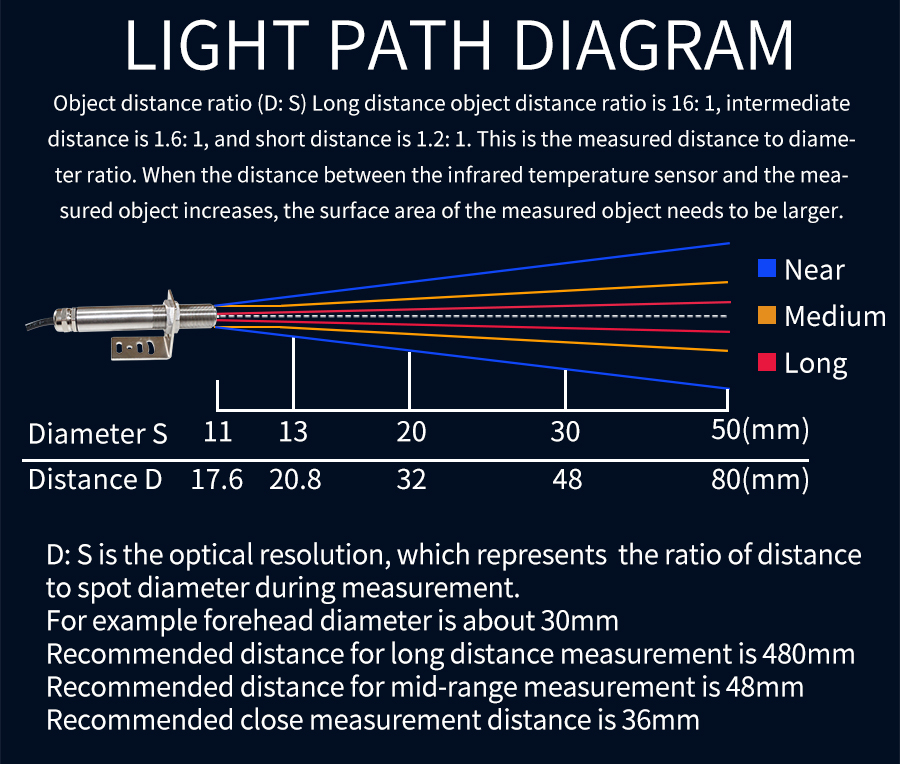

| Optical Resolution | 1.6:1 |
| Spectral range | 18-14um |
| Response time | 100ms |
| Emissivity | 0.96 |
| Communication Interface | RS485 |

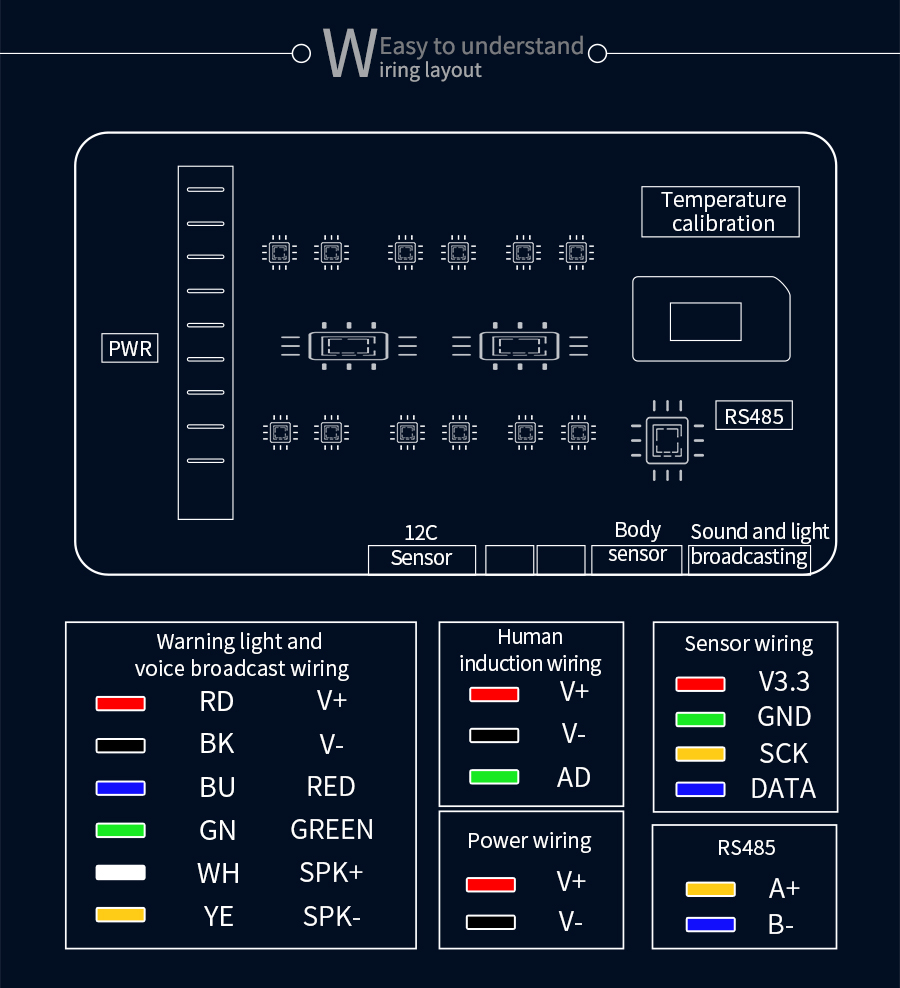

How to wiring?
Why choose this product?

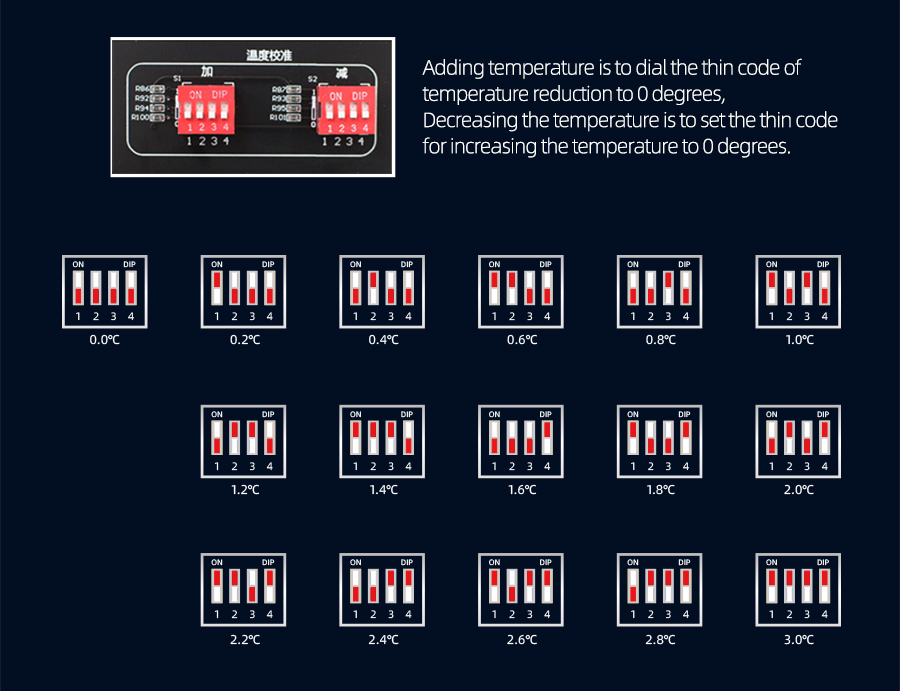

How to use?

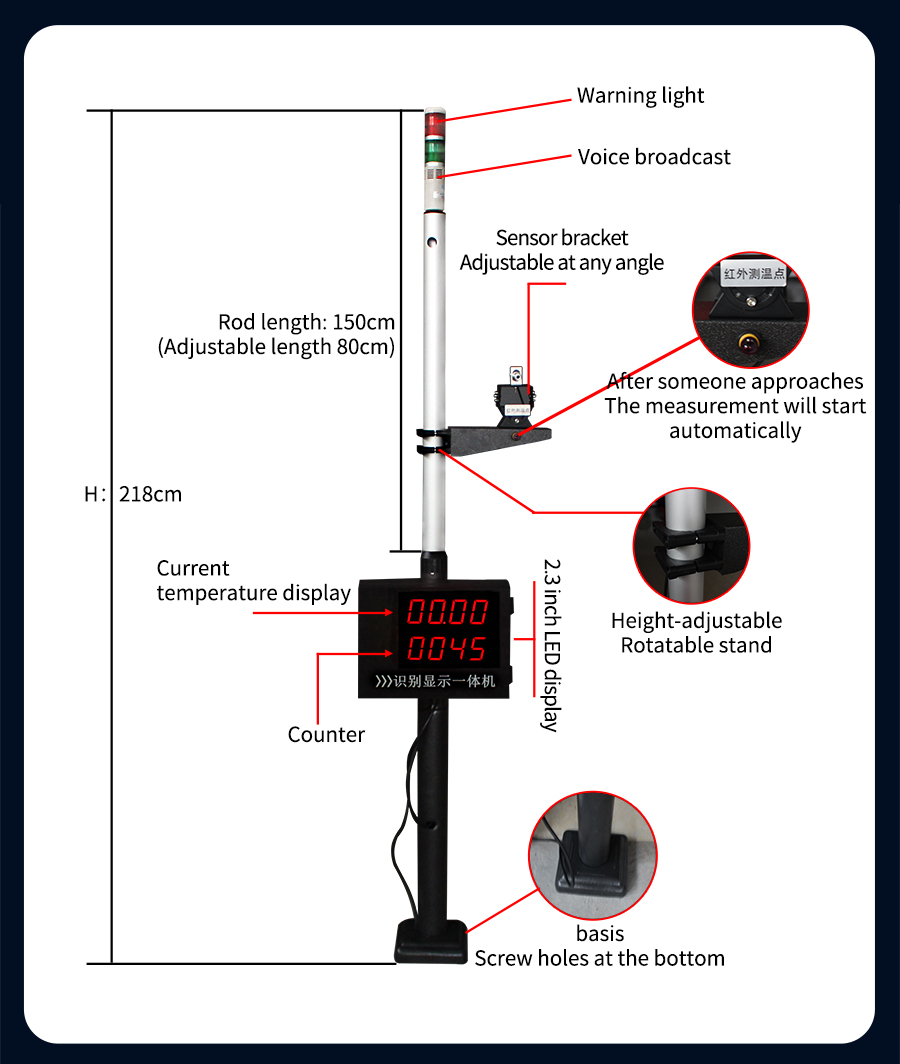

Product Pictures
Product Pictures
