 [XM5383]  Outdoor Aluminum Wind Direction Sensor

XM5383 XM5383

Technical Parameters

Technical parameterParameter value
BrandXUNCHIP
Wind direction range0~360°

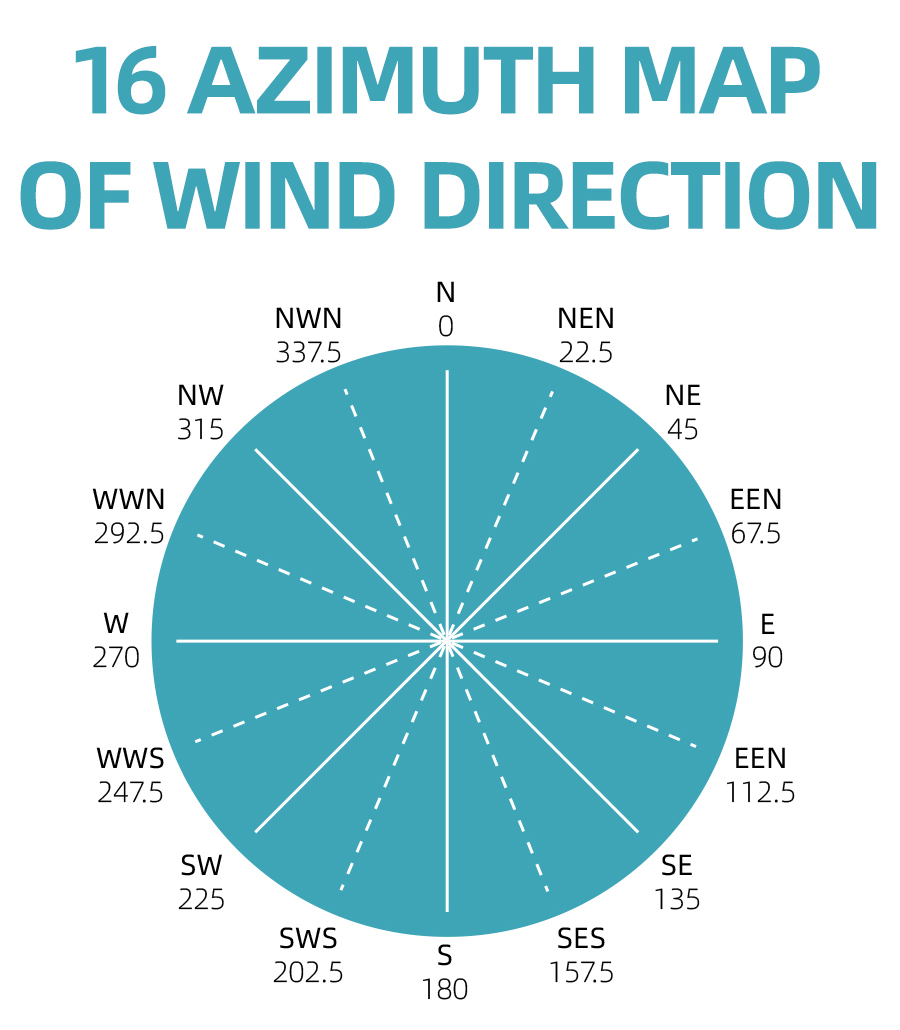

Wind direction resolution22.5°
InterfaceRS485/4-20mA/DC0-5V
PowerDC12~24V 1A
Running temperature-30~85℃
Working humidity5%RH~90%RH

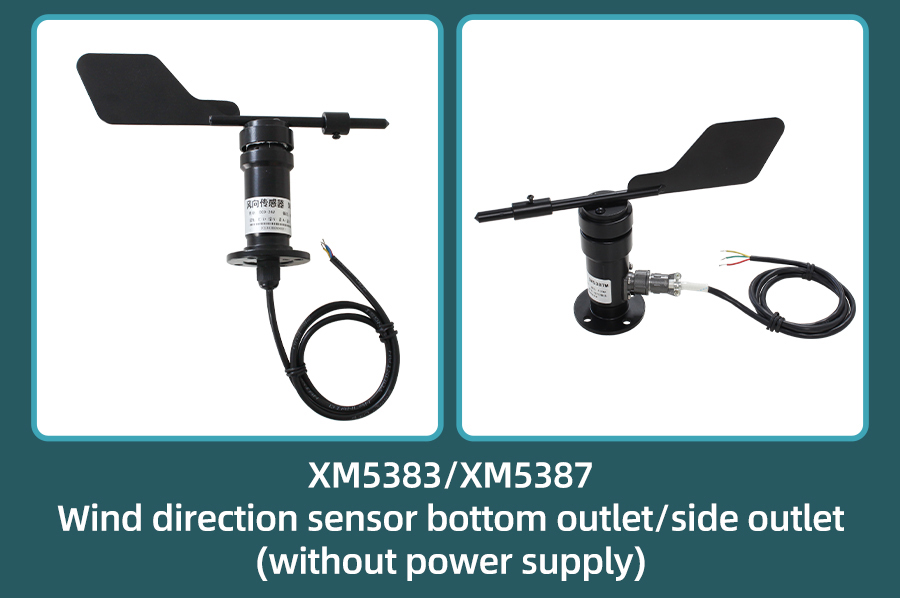

Product Selection

    Product DesignRS485,4-20mA,DC0-5VMultiple output methods, the products are divided into the following models depending on the output method.
Product model output method
XM5383BRS485总线
XM5383M4-20mA
XM5383V5DC0-5V

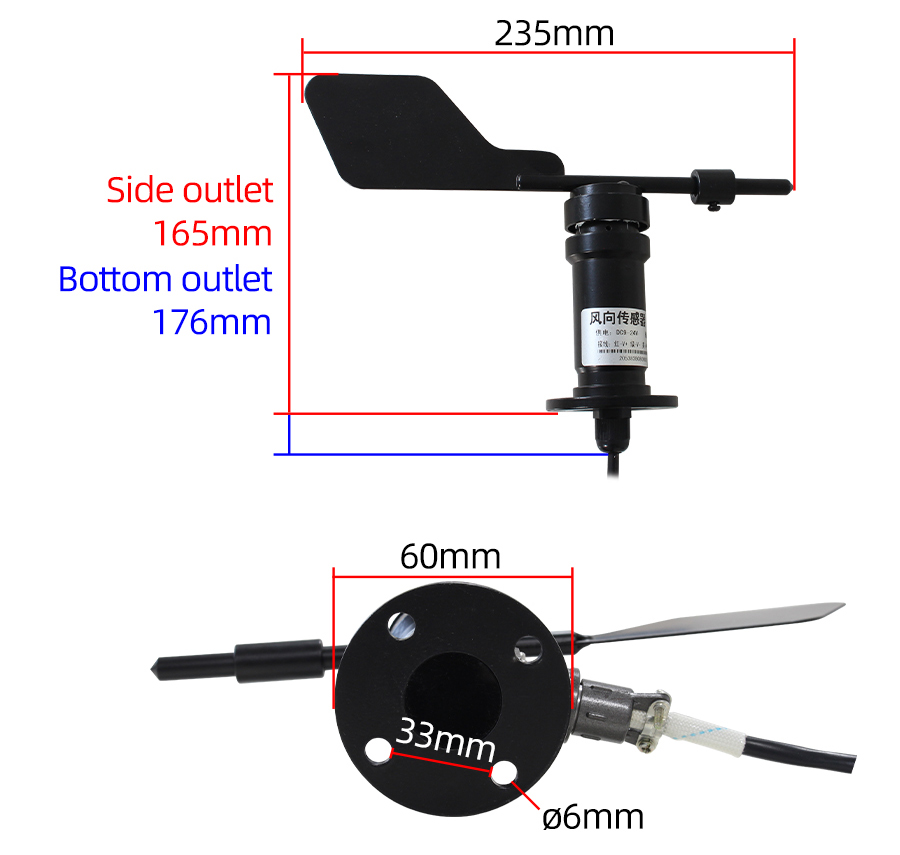

Product Size

XM5383

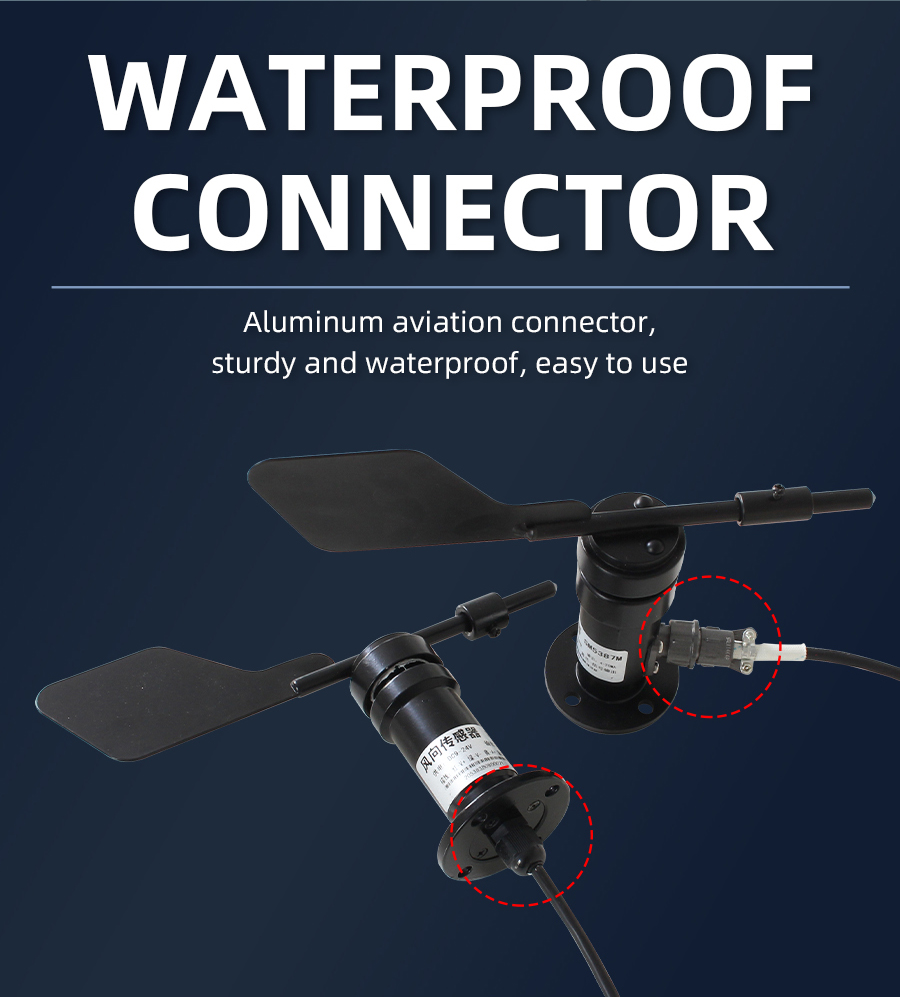

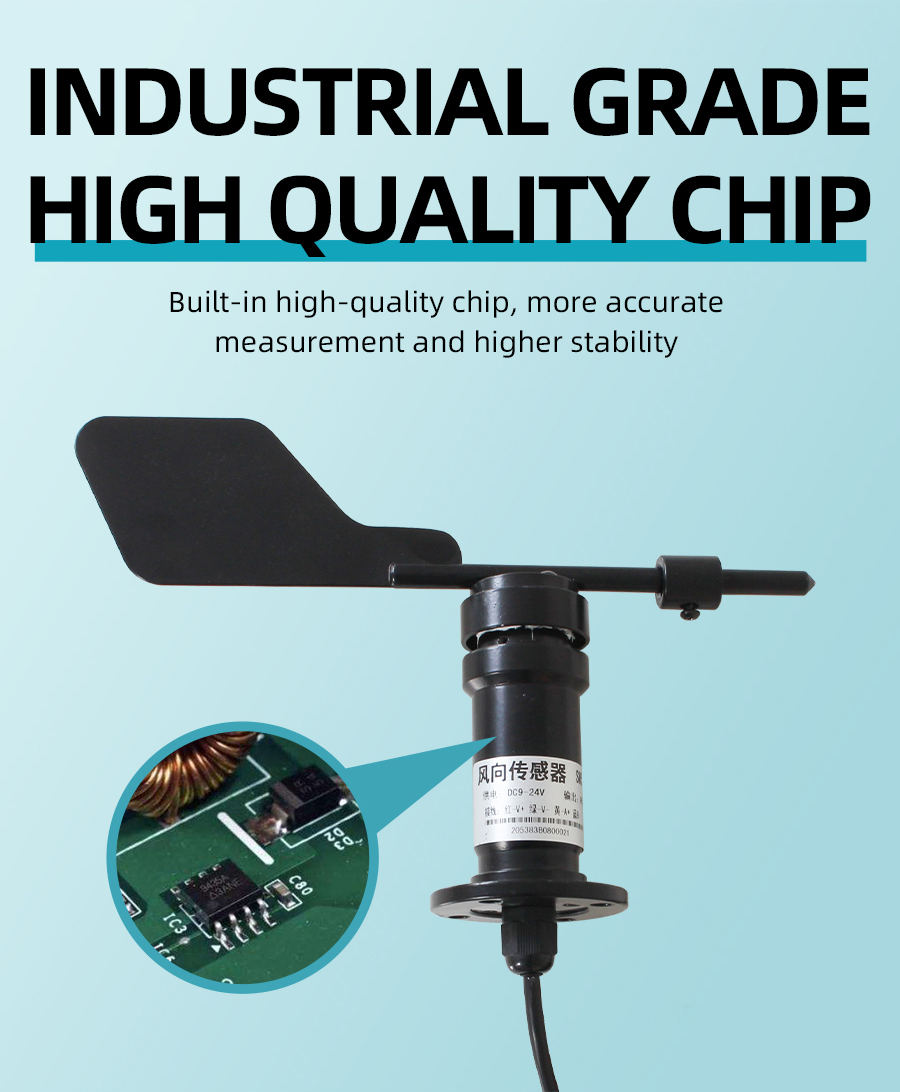

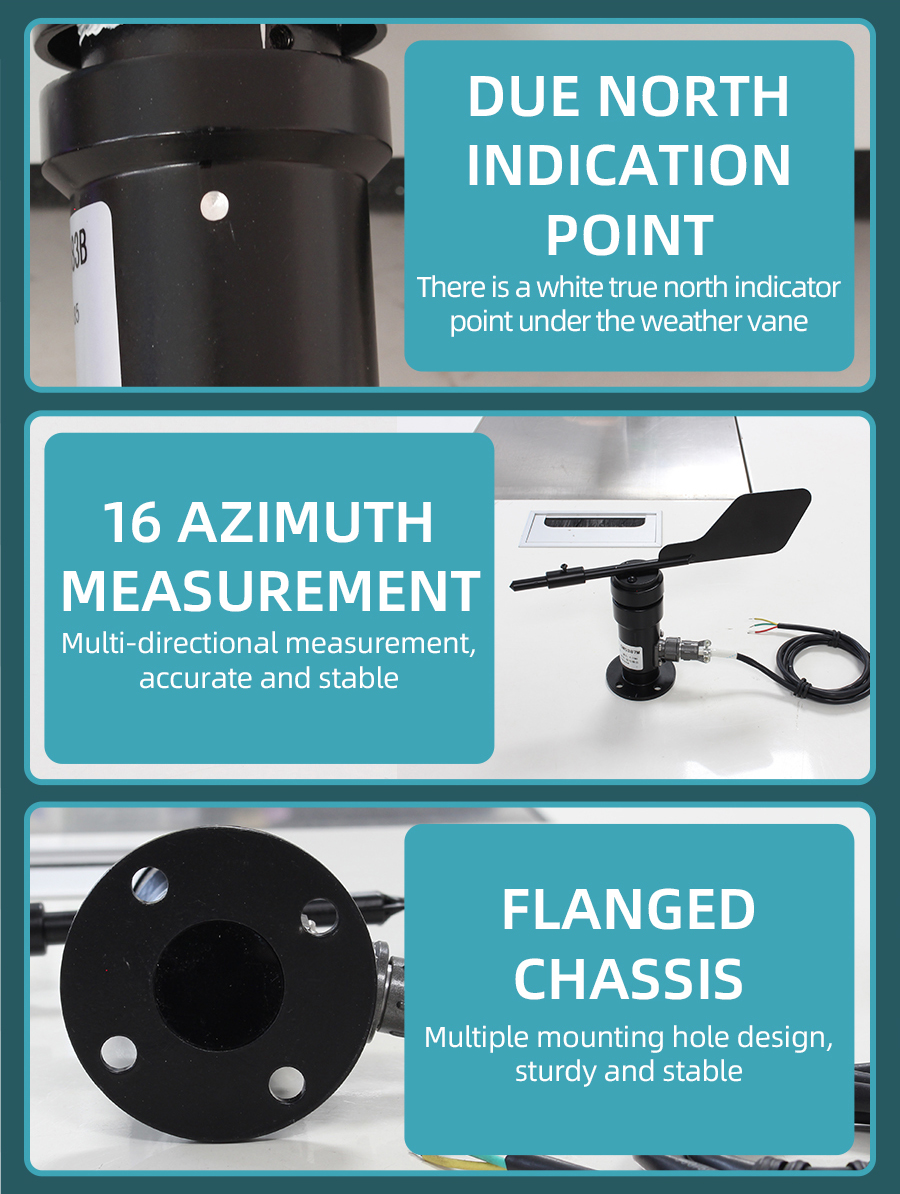

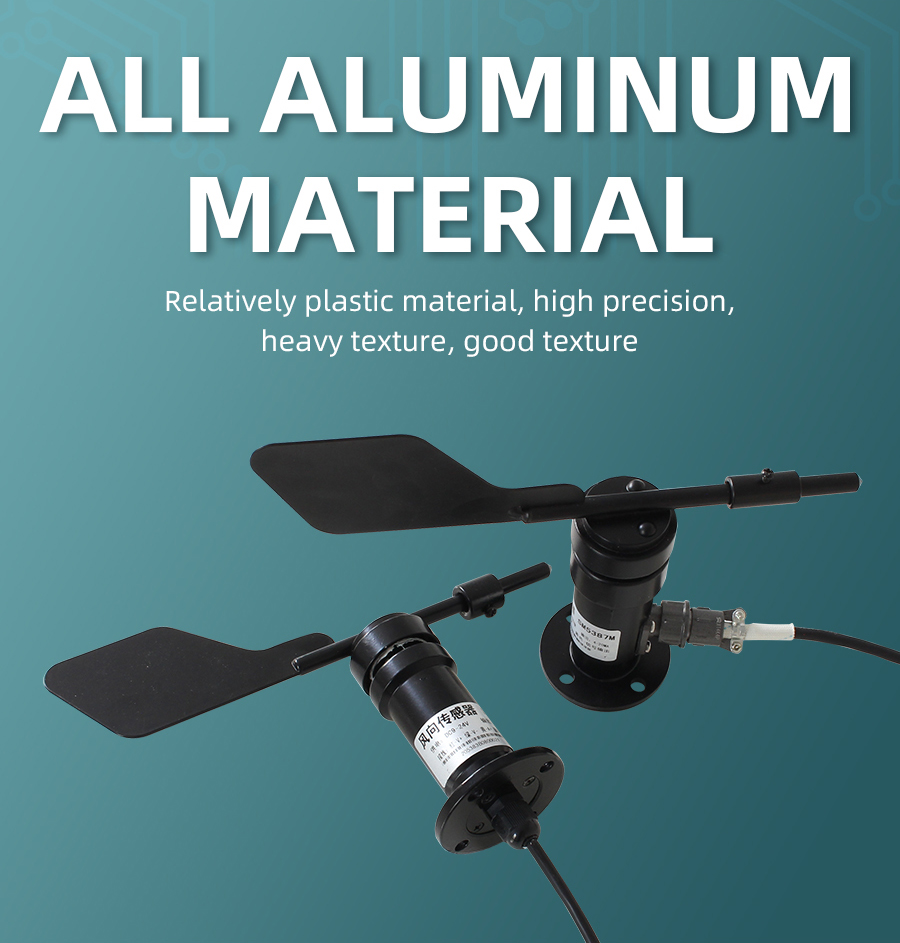

Why choose this product?

XM5383 XM5383 XM5383 XM5383

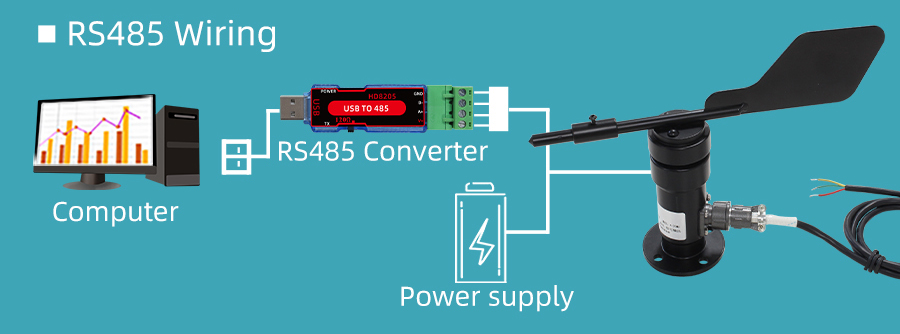

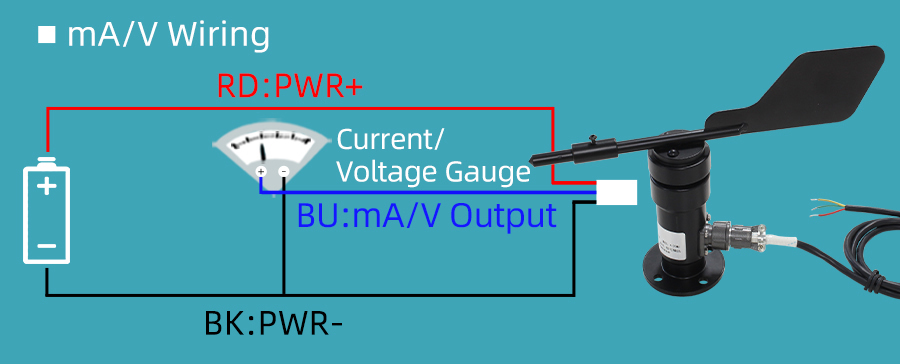

How to use?

XM5383

Application solution

XM5383 XM5383 XM5383

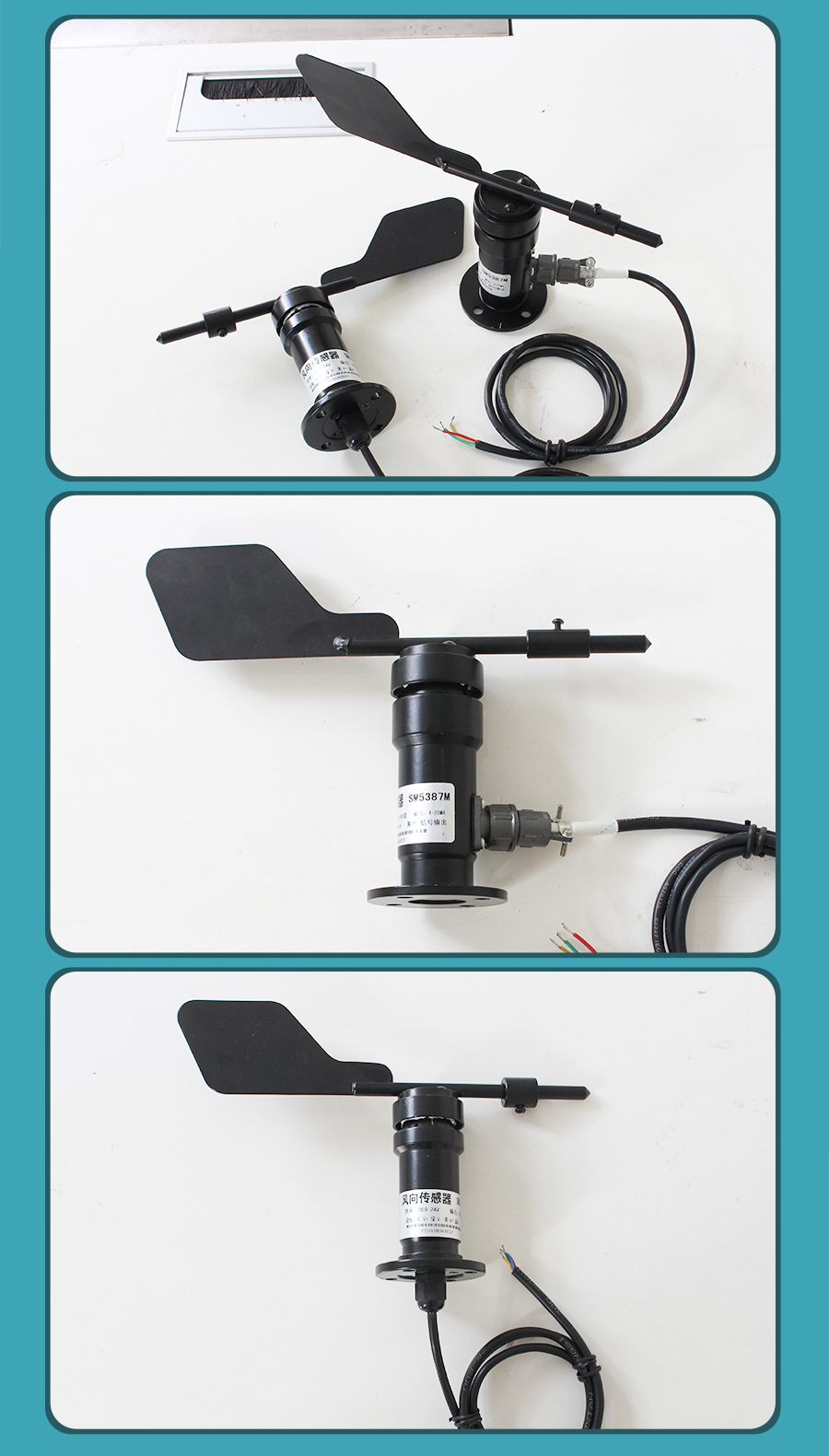

Pictures

XM5383 XM5383

Communication Protocol

    The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commands are hexadecimal data. The default device address is 1 when the device leaves the factory, and the module or NON-Recorder default baud rate is 9600,8,n,1 ,but data recorder default baud rate is 115200 .
1. Read data (function code 0x03)
    Inquiry frame (hexadecimal), sending example: query 1 data of 1# device, the upper computer sends the command: 01 03 00 00 00 01 84 0A .
Address Function Code Start Address Data Length Check Code
010300 0000 0184 0A
    For the correct query frame, the device will respond with data: 01 03 02 00 79 79 A6 , response format:
Address Function Code LengthData 1Check Code
0103 0200 79 79 A6
    Data description: The data in the command is hexadecimal, take data 1 as an example, 00 79 is converted to decimal value as 121, assuming the data magnification is 100, then the real value is 121/100=1.21, Others and so on.
2. Common data address table
Configuration Address Register Address Register Description Data Type Value Range
4000100 00conductivityRead Only0~65535
4010100 64Model CodeRead/Write0~65535
4010200 65 total number of measuring points read/write 1~20
4010300 66device addressread/write1~249
4010400 67baud rateread/write0~6
4010500 68communication moderead/write1~4
4010600 69protocol typeread/write1~10

  For example, the range is 0~360°, the analog output is 4~20mA current signal, conductivity and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated current value. The list of commonly used values is as follows:
current(mA)conductivityValue (°) Calculation Process
40.0(360-0)*(4-4)÷(20-4)+0
522.5(360-0)*(5-4)÷(20-4)+0
645.0(360-0)*(6-4)÷(20-4)+0
767.5(360-0)*(7-4)÷(20-4)+0
890.0(360-0)*(8-4)÷(20-4)+0
9112.5(360-0)*(9-4)÷(20-4)+0
10135.0(360-0)*(10-4)÷(20-4)+0
11157.5(360-0)*(11-4)÷(20-4)+0
12180.0(360-0)*(12-4)÷(20-4)+0
13202.5(360-0)*(13-4)÷(20-4)+0
14225.0(360-0)*(14-4)÷(20-4)+0
15247.5(360-0)*(15-4)÷(20-4)+0
16270.0(360-0)*(16-4)÷(20-4)+0
17292.5(360-0)*(17-4)÷(20-4)+0
18315.0(360-0)*(18-4)÷(20-4)+0
19337.5(360-0)*(19-4)÷(20-4)+0
20360.0(360-0)*(20-4)÷(20-4)+0
    As shown in the above formula, when measuring 8mA, current current is 94°。
  For example, the range is 0~360°, the analog output is 0~5V DC0-5Vvoltage signal, conductivity and DC0-5Vvoltage The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is conductivity range upper limit, A1 is the lower limit of the range, B2 is DC0-5Vvoltage output range upper limit, B1 is the lower limit, X is the currently read conductivity value, and C is the calculated DC0-5Vvoltage value. The list of commonly used values is as follows:
DC0-5Vvoltage(V)conductivityValue (°) Calculation Process
00.0(360-0)*(0-0)÷(5-0)+0
172.0(360-0)*(1-0)÷(5-0)+0
2144.0(360-0)*(2-0)÷(5-0)+0
3216.0(360-0)*(3-0)÷(5-0)+0
4288.0(360-0)*(4-0)÷(5-0)+0
5360.0(360-0)*(5-0)÷(5-0)+0
    As shown in the above formula, when measuring 2.5V, current DC0-5Vvoltage is 180°。
software for test product
After downloading, please read the readme.txt documentation

RV1000 DEGBUG AND TEST SOFTWARE

Data and Software
software for test product
Data and Software
software for test product
After downloading, please read the readme.txt documentation

RV1000 DEGBUG AND TEST SOFTWARE

Data and Software
