Technical Parameters
| Technical parameter | Parameter value |
| Temperature measuring range | -30℃~80℃ |
| Temperature measuring accuracy | ±0.5℃ @25℃ |
| Humidity measuring range | 0~100%RH |
| Humidity accuracy | ±3%RH @25℃ |
| Communication Interface | DC4~20mA |
| Power | DC12~24V 1A |
| Running temperature | -30~80℃ |
| Working humidity | 5%RH~90%RH |

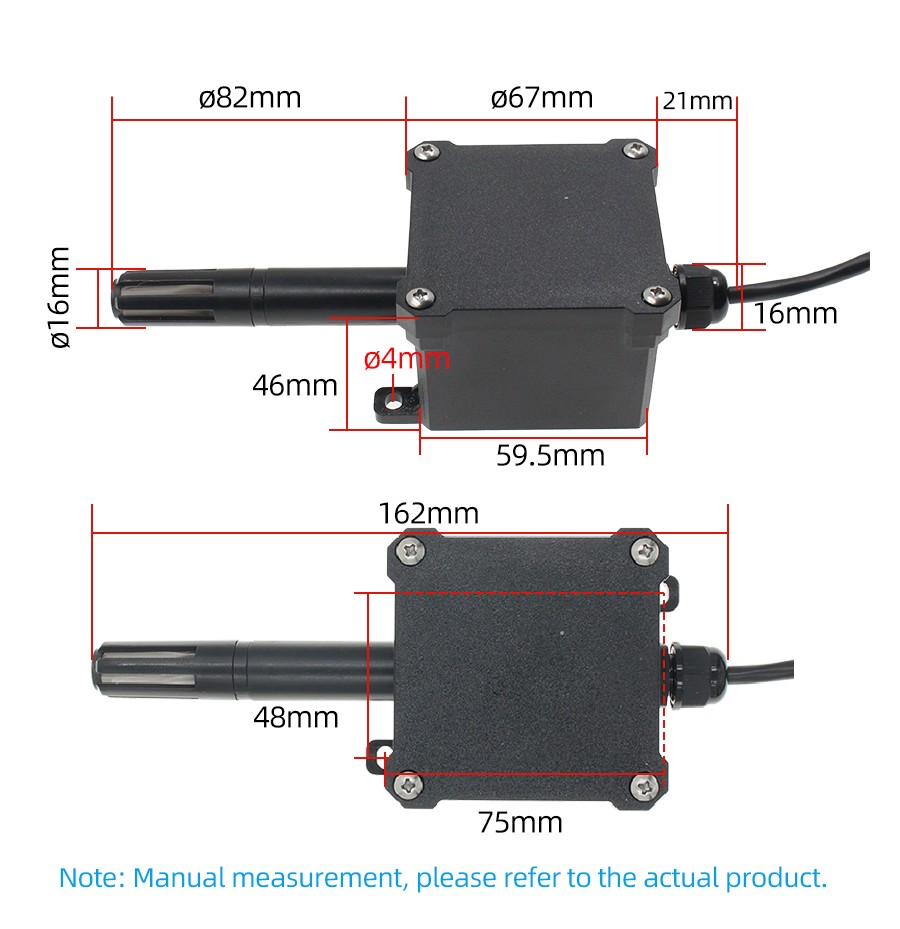

Product Size
software to test
Wiring instructions

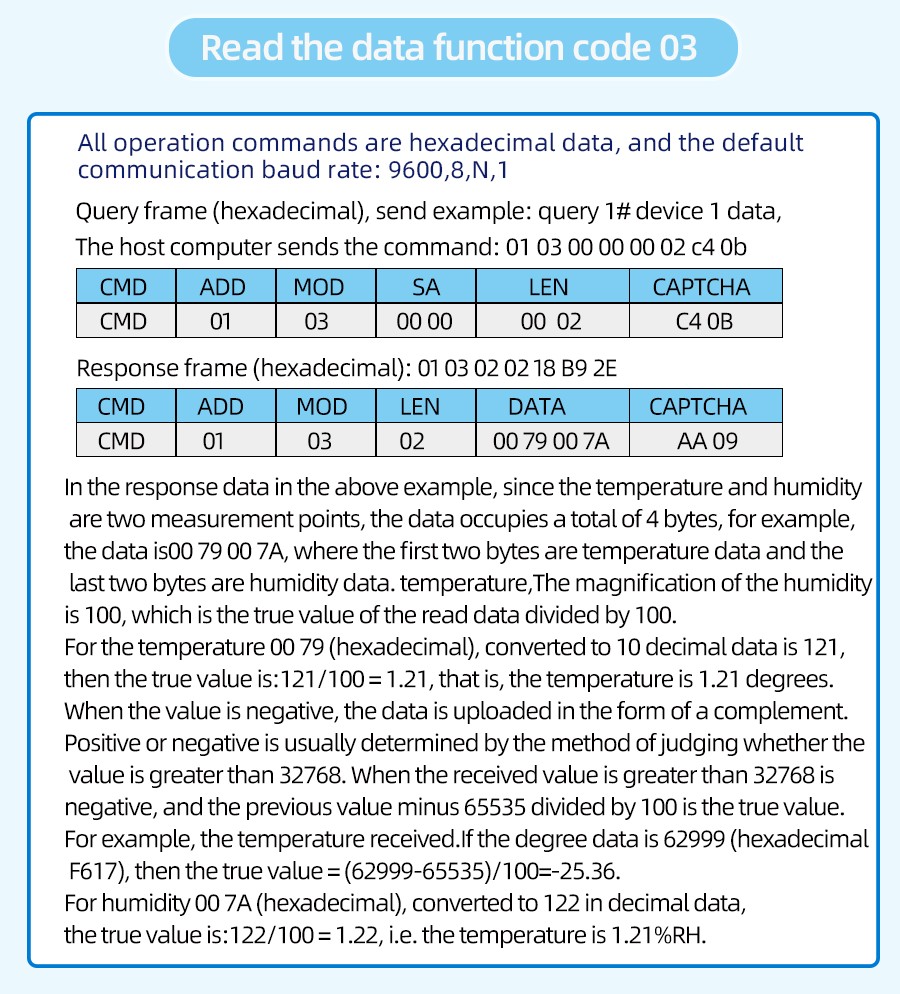

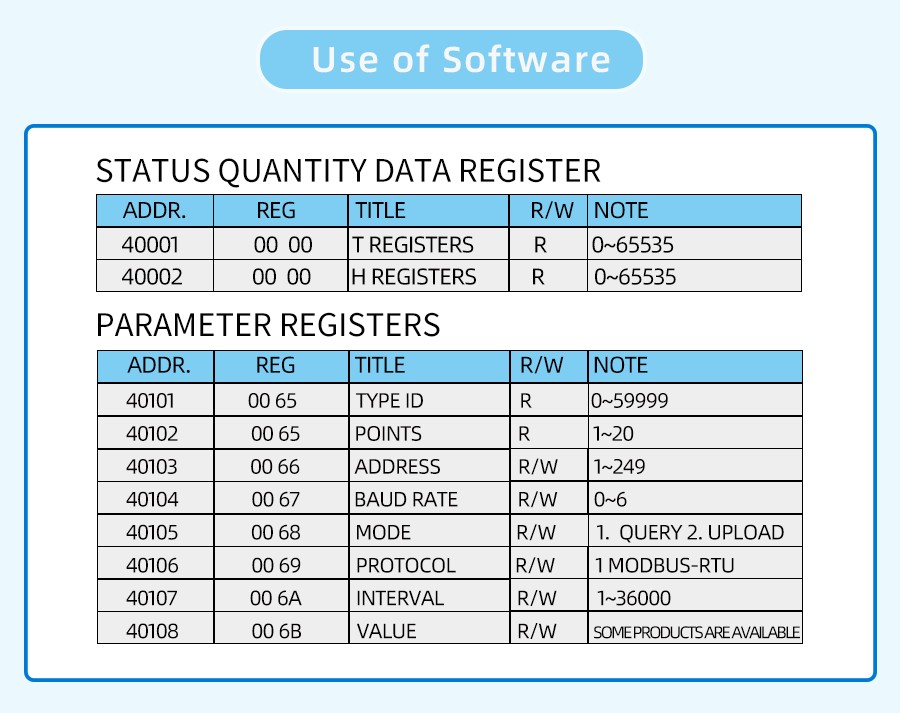

How to use software?

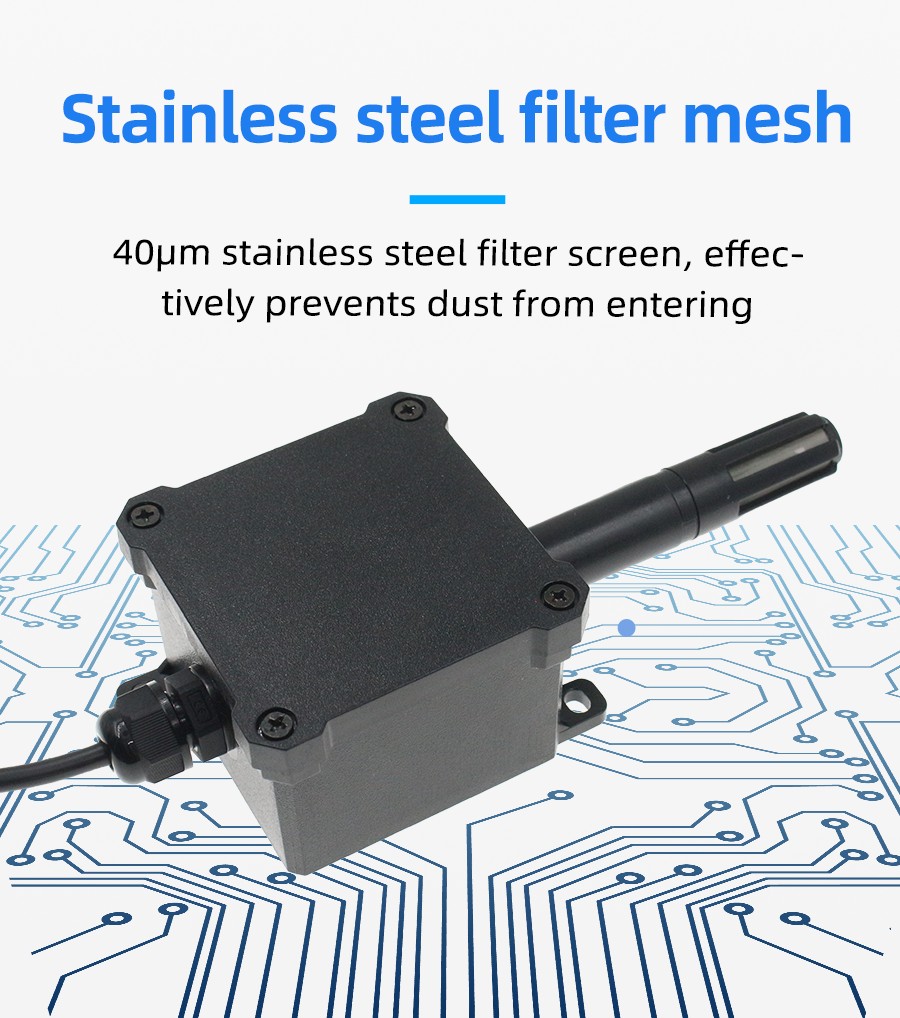

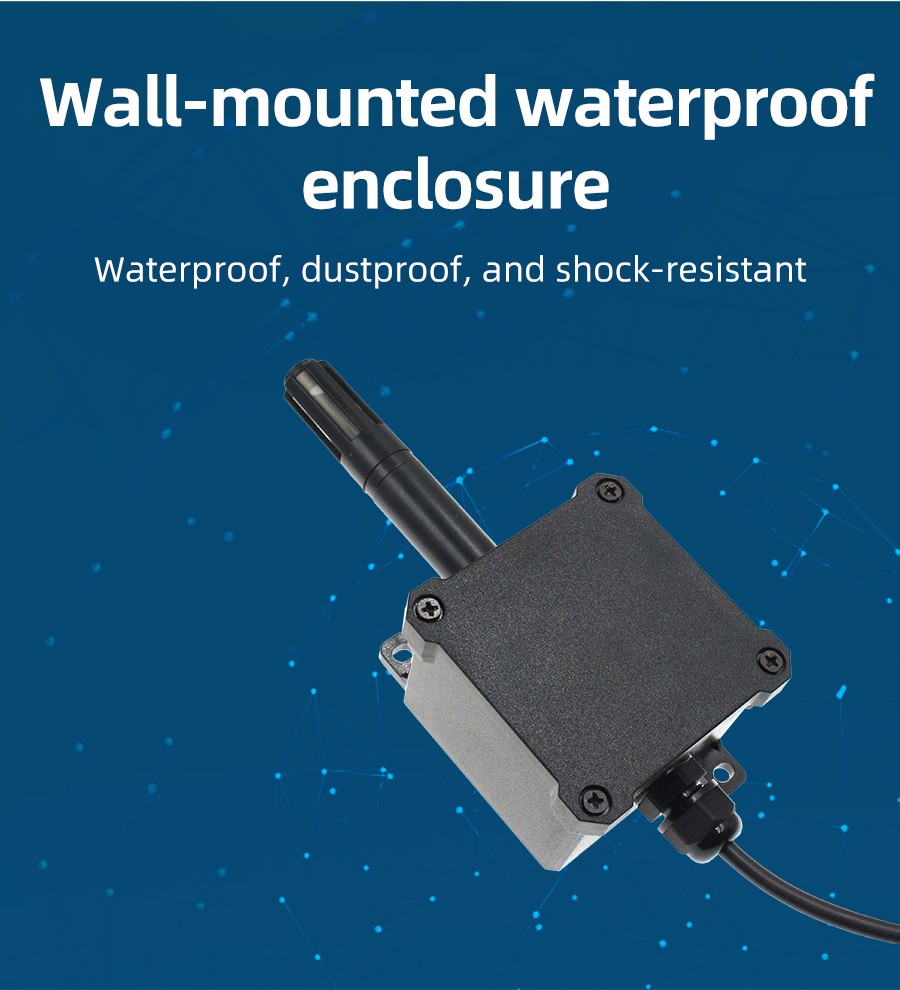

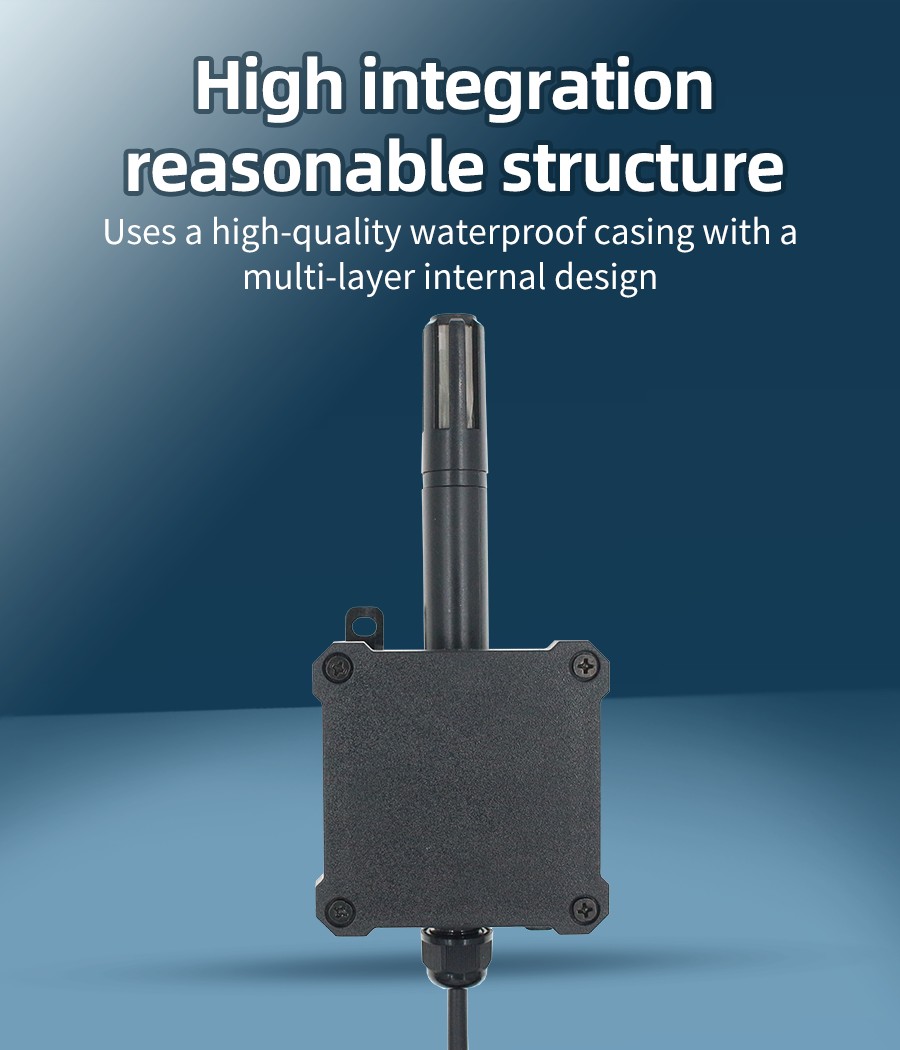

Why choose this product?
How to use?
Product List

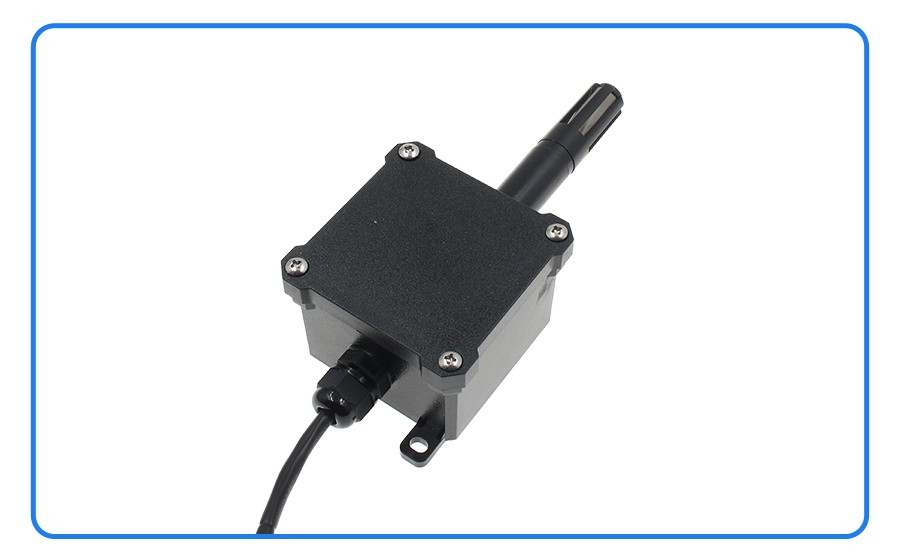

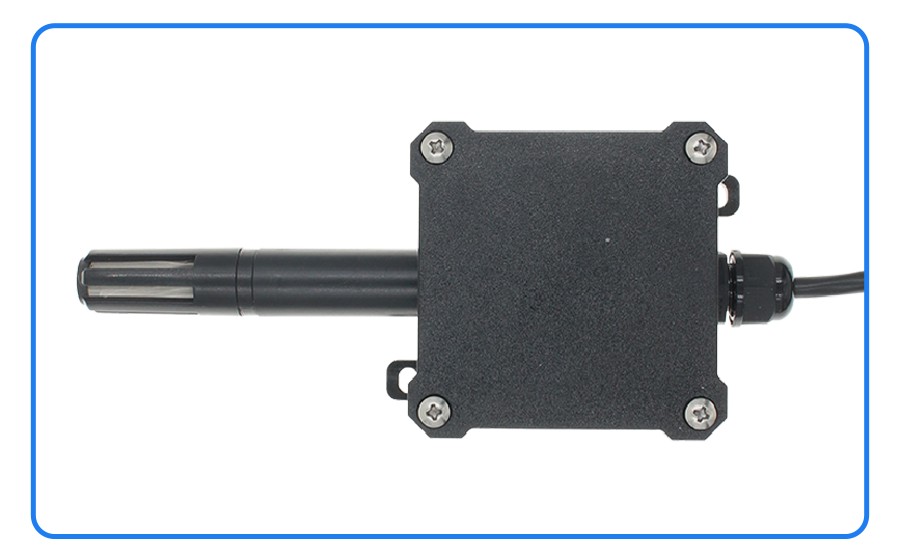

Pictures
1. temperature and current computing relationship
For example, the range is -30~80℃, the analog output is 4~20mA current signal, temperature and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is temperature range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read temperature value, and C is the calculated current value. The list of commonly used values is as follows:
| current(mA) | temperatureValue (℃) | Calculation Process |
| 4 | -30 | (80-(-30))*(4-4)÷(20-4)+-30 |
| 5 | -23.125 | (80-(-30))*(5-4)÷(20-4)+-30 |
| 6 | -16.25 | (80-(-30))*(6-4)÷(20-4)+-30 |
| 7 | -9.375 | (80-(-30))*(7-4)÷(20-4)+-30 |
| 8 | -2.5 | (80-(-30))*(8-4)÷(20-4)+-30 |
| 9 | 4.375 | (80-(-30))*(9-4)÷(20-4)+-30 |
| 10 | 11.25 | (80-(-30))*(10-4)÷(20-4)+-30 |
| 11 | 18.125 | (80-(-30))*(11-4)÷(20-4)+-30 |
| 12 | 25 | (80-(-30))*(12-4)÷(20-4)+-30 |
| 13 | 31.875 | (80-(-30))*(13-4)÷(20-4)+-30 |
| 14 | 38.75 | (80-(-30))*(14-4)÷(20-4)+-30 |
| 15 | 45.625 | (80-(-30))*(15-4)÷(20-4)+-30 |
| 16 | 52.5 | (80-(-30))*(16-4)÷(20-4)+-30 |
| 17 | 59.375 | (80-(-30))*(17-4)÷(20-4)+-30 |
| 18 | 66.25 | (80-(-30))*(18-4)÷(20-4)+-30 |
| 19 | 73.125 | (80-(-30))*(19-4)÷(20-4)+-30 |
| 20 | 80 | (80-(-30))*(20-4)÷(20-4)+-30 |
As shown in the above formula, when measuring 8mA, current current is 31.5℃。
2. humidity and current computing relationship
For example, the range is 0~100%RH, the analog output is 4~20mA current signal, humidity and current The calculation relationship is as shown in the formula: C = (A2-A1) * (X-B1) / (B2-B1) + A1, where A2 is humidity range upper limit, A1 is the lower limit of the range, B2 is current output range upper limit, B1 is the lower limit, X is the currently read humidity value, and C is the calculated current value. The list of commonly used values is as follows:
| current(mA) | humidityValue (%RH) | Calculation Process |
| 4 | 0.0 | (100-0)*(4-4)÷(20-4)+0 |
| 5 | 6.3 | (100-0)*(5-4)÷(20-4)+0 |
| 6 | 12.5 | (100-0)*(6-4)÷(20-4)+0 |
| 7 | 18.8 | (100-0)*(7-4)÷(20-4)+0 |
| 8 | 25.0 | (100-0)*(8-4)÷(20-4)+0 |
| 9 | 31.3 | (100-0)*(9-4)÷(20-4)+0 |
| 10 | 37.5 | (100-0)*(10-4)÷(20-4)+0 |
| 11 | 43.8 | (100-0)*(11-4)÷(20-4)+0 |
| 12 | 50.0 | (100-0)*(12-4)÷(20-4)+0 |
| 13 | 56.3 | (100-0)*(13-4)÷(20-4)+0 |
| 14 | 62.5 | (100-0)*(14-4)÷(20-4)+0 |
| 15 | 68.8 | (100-0)*(15-4)÷(20-4)+0 |
| 16 | 75.0 | (100-0)*(16-4)÷(20-4)+0 |
| 17 | 81.3 | (100-0)*(17-4)÷(20-4)+0 |
| 18 | 87.5 | (100-0)*(18-4)÷(20-4)+0 |
| 19 | 93.8 | (100-0)*(19-4)÷(20-4)+0 |
| 20 | 100.0 | (100-0)*(20-4)÷(20-4)+0 |
As shown in the above formula, when measuring 8mA, current current is 29%RH。
software for test product
After downloading, please read the readme.txt documentation
