Product Overview
SLHT10 including SLHT10-1, SLHT10-2, SLHT10-3 3 models. Extended Protection digital temperature and humidity sensors used to measure temperature and humidity in the pipeline, its probe rod structure deep inside the device can measure. Comes standard with a long noodle products, support up to 50 meters, the user has the long-term requirements can be customized.
Please refer to the user programmed instructions and Switzerland SHT original package provided by our company. Please use the power wiring and strictly follow the instructions. Remember to check the wiring is correct and then energized.

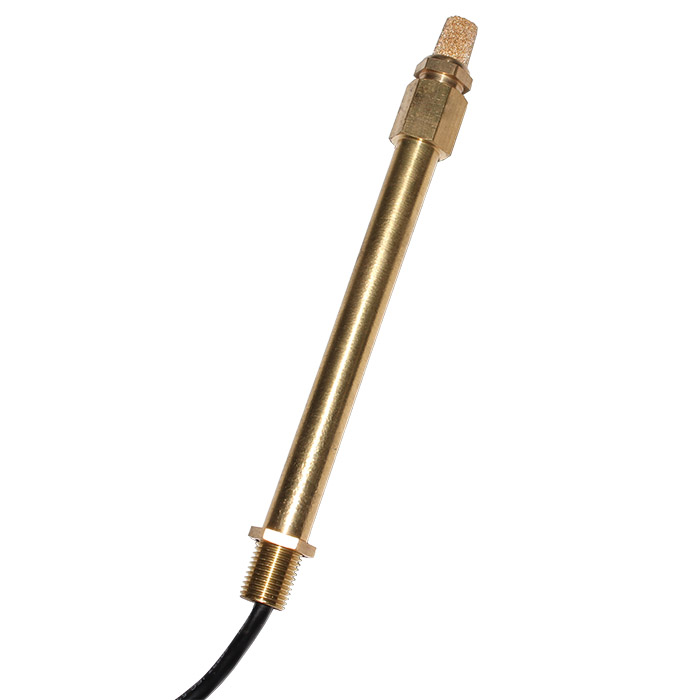

Product Pictures

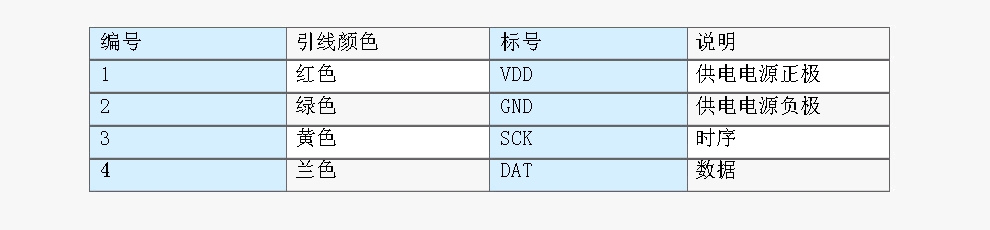

Wiring instructions
| Core color | Identification | Note |
| RED | VDD | Power positive electrode |
| GREEN | GND | Power negative electrode |
| YELLOW | SCK | sck |
| BLUE | DATA | data |
