SM3710M2 using the standard ,easy access to PLC,DCS and other instruments or systems for monitoring temperature,humidity state quantities.The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability,can be customized RS232,RS485,CAN,4-20mA,DC0~5V\10V,ZIGBEE,Lora,WIFI,GPRS and other output methods.
Technical Parameters
Technical parameter | Parameter value |
Brand | SONBEST |
Temperature measuring range | 0~50℃/-20~80℃/-40~60℃ |
Temperature measuring accuracy | ±0.3℃ @25℃ |
Range change mode | DIP switch |
Humidity measuring range | 0~100%RH |
Humidity accuracy | ±3%RH @25℃ |
Communication Interface | Two-wire DC4~20mA |
Power | DC12~24V 1A |
Running temperature | -40~80°C |
Working humidity | 5%RH~90%RH |
|

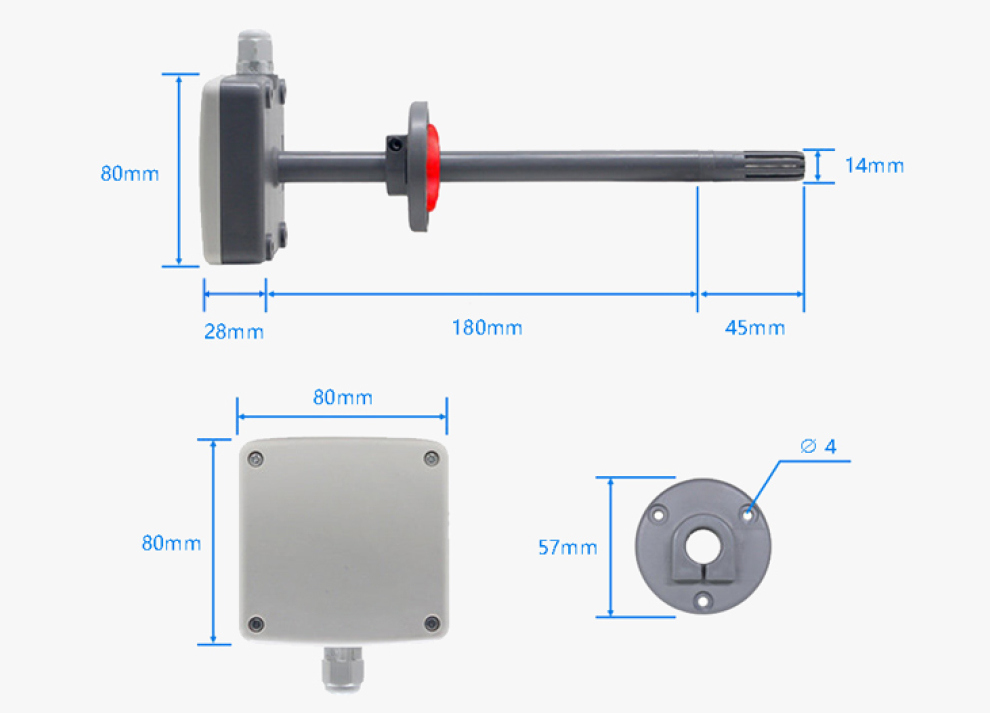

Product Size
Wiring instructions
Any incorrect wiring can cause irreversible damage to the product. Please carefully wire the cable as follows in the case of power failure, and then connect the cable to confirm the correctness and then use it again.
ID | Core color | Identification | Note |
1 | Red | V+ | Power V+ |
2 | Green | V- | Power V- |
3 | Yellow | I1+ | sensor 1 output |
4 | Blue | I2+ | sensor 2 output |
|

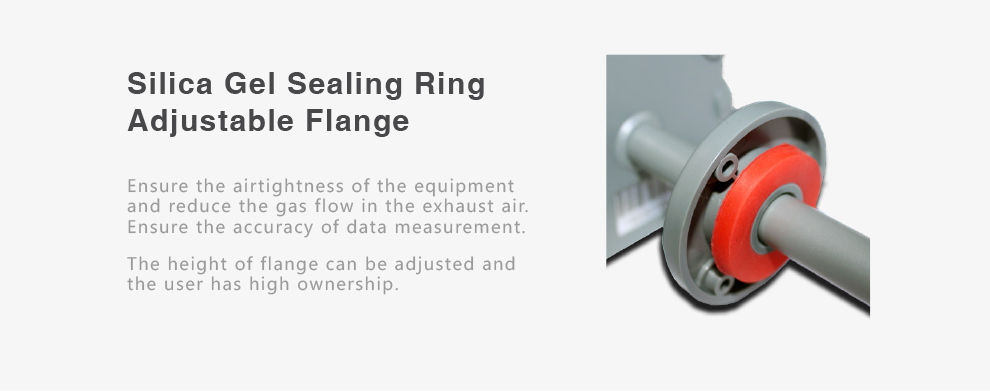

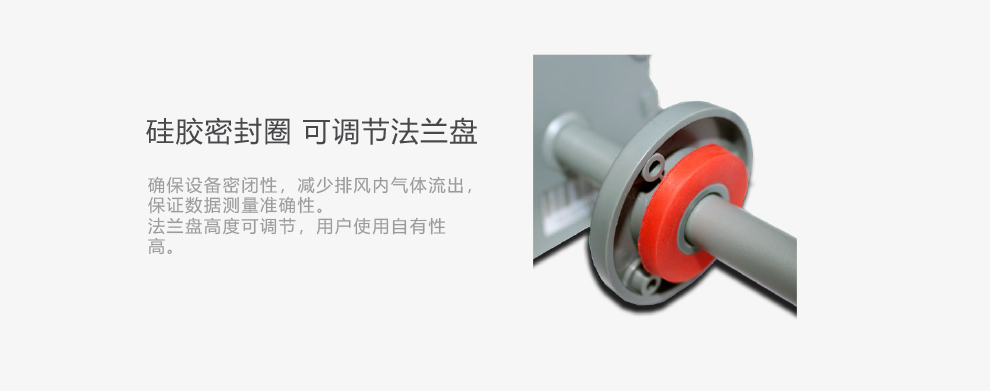

Why choose this product?

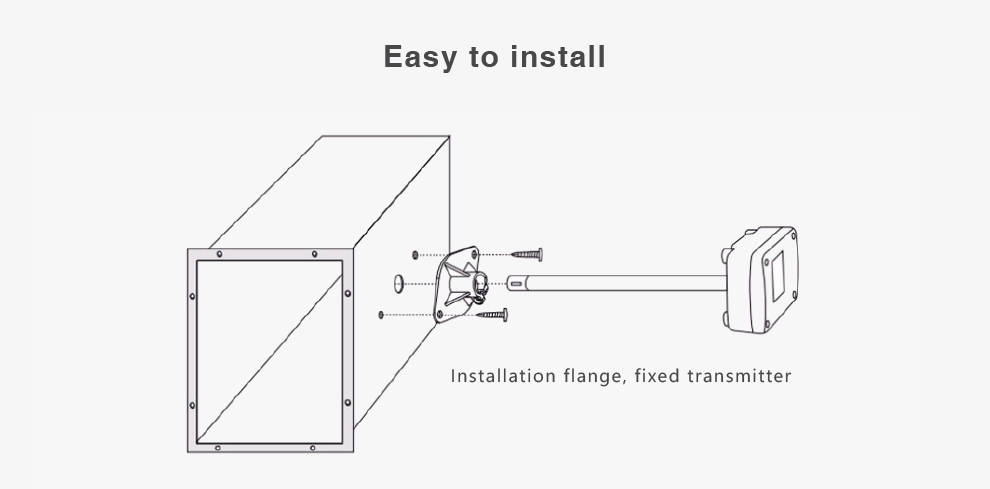

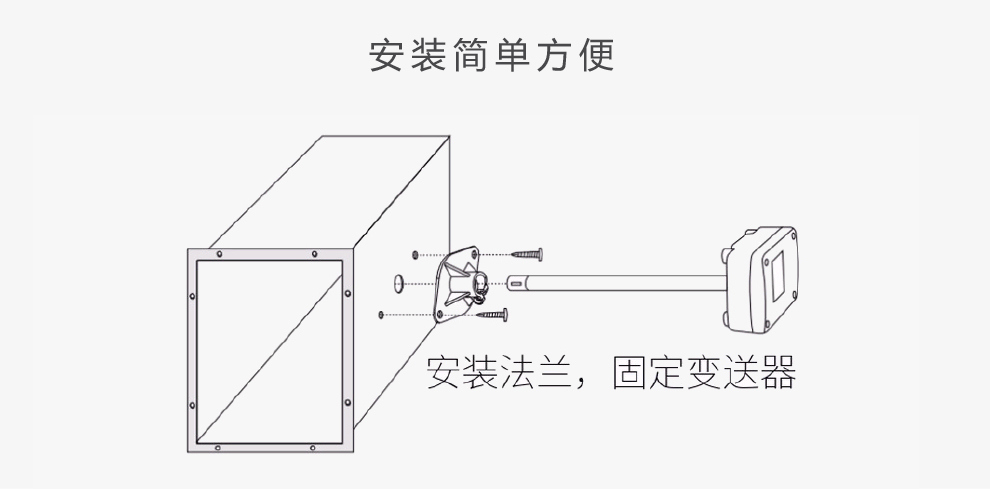

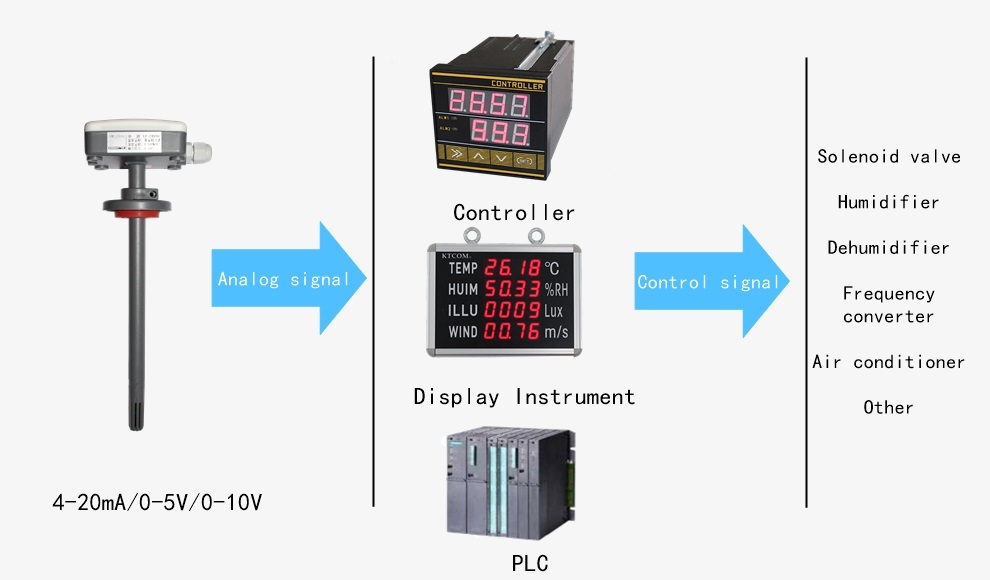

How to use?

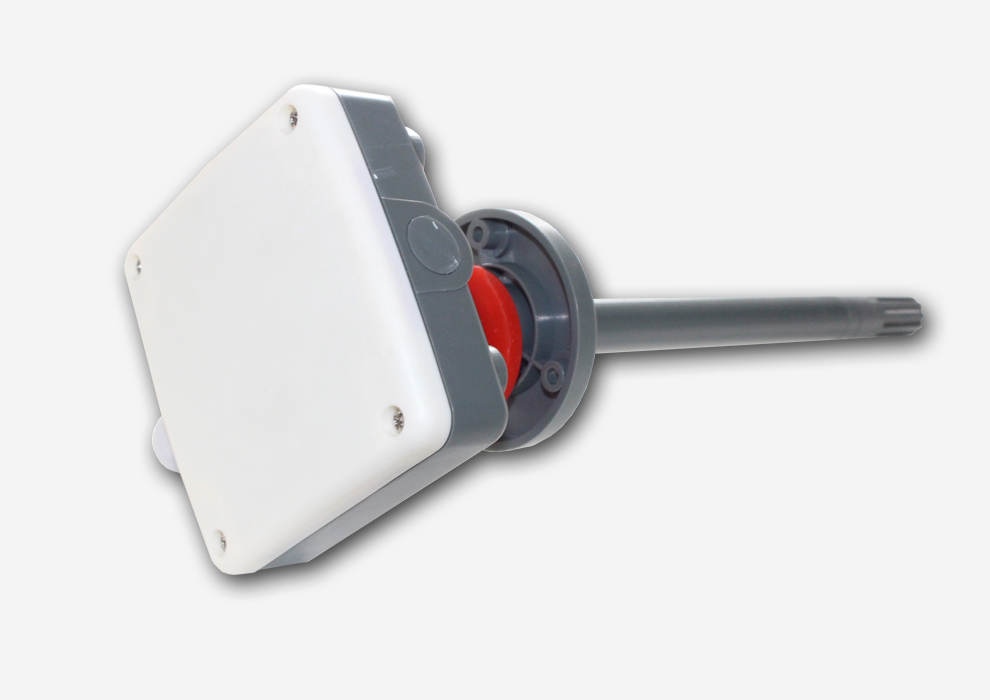

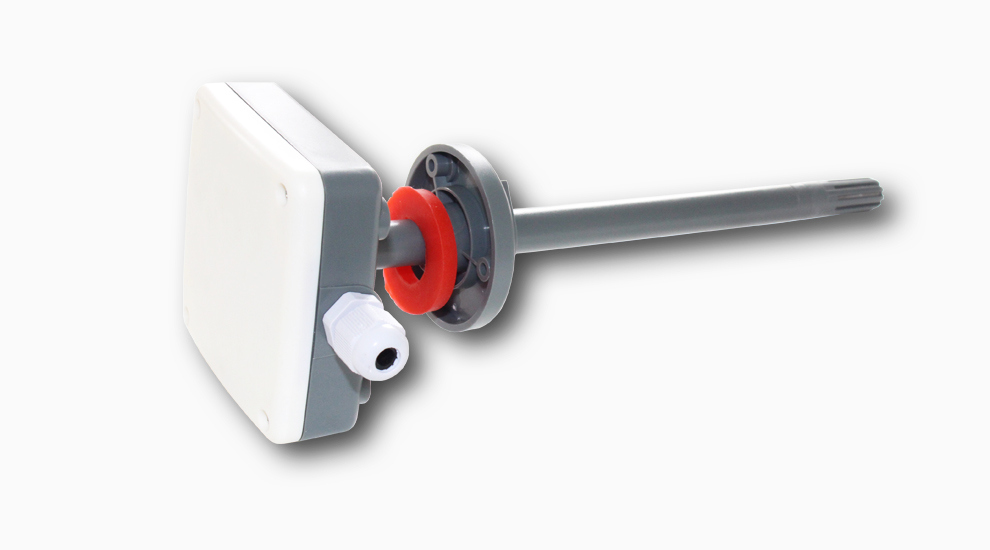

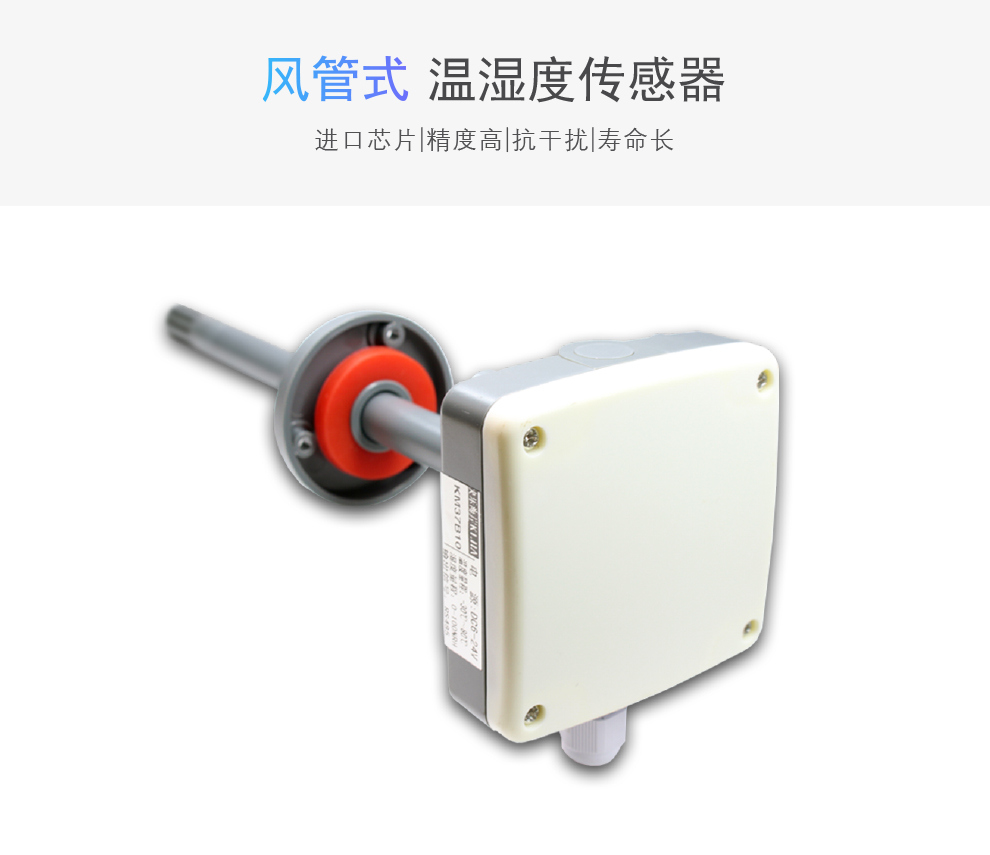

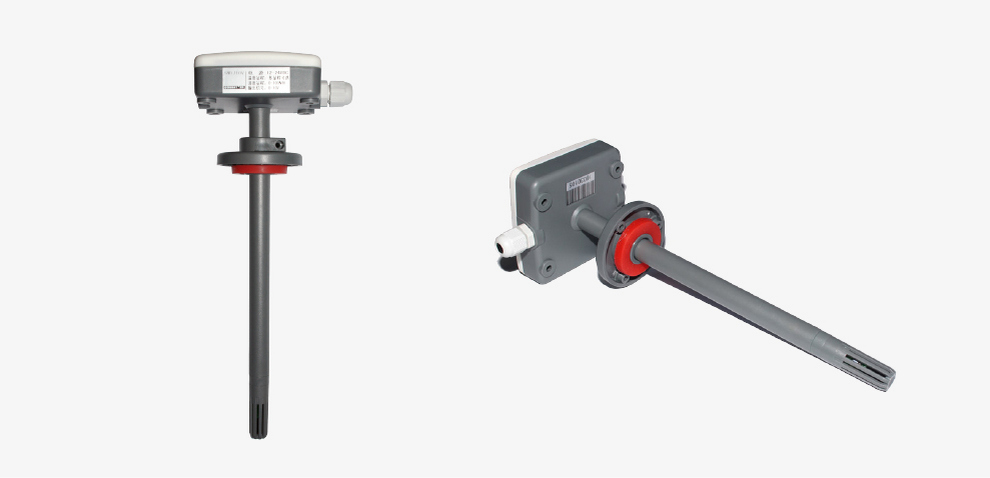

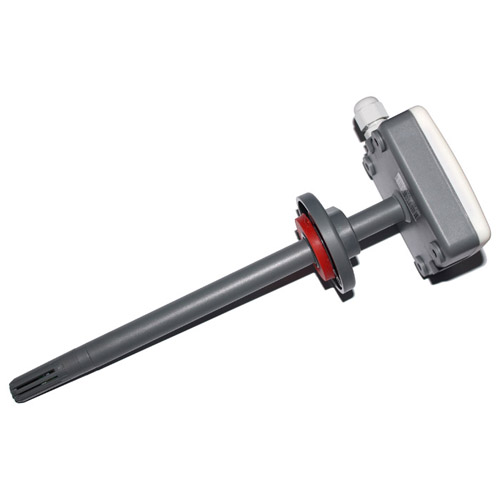

Product Pictures
